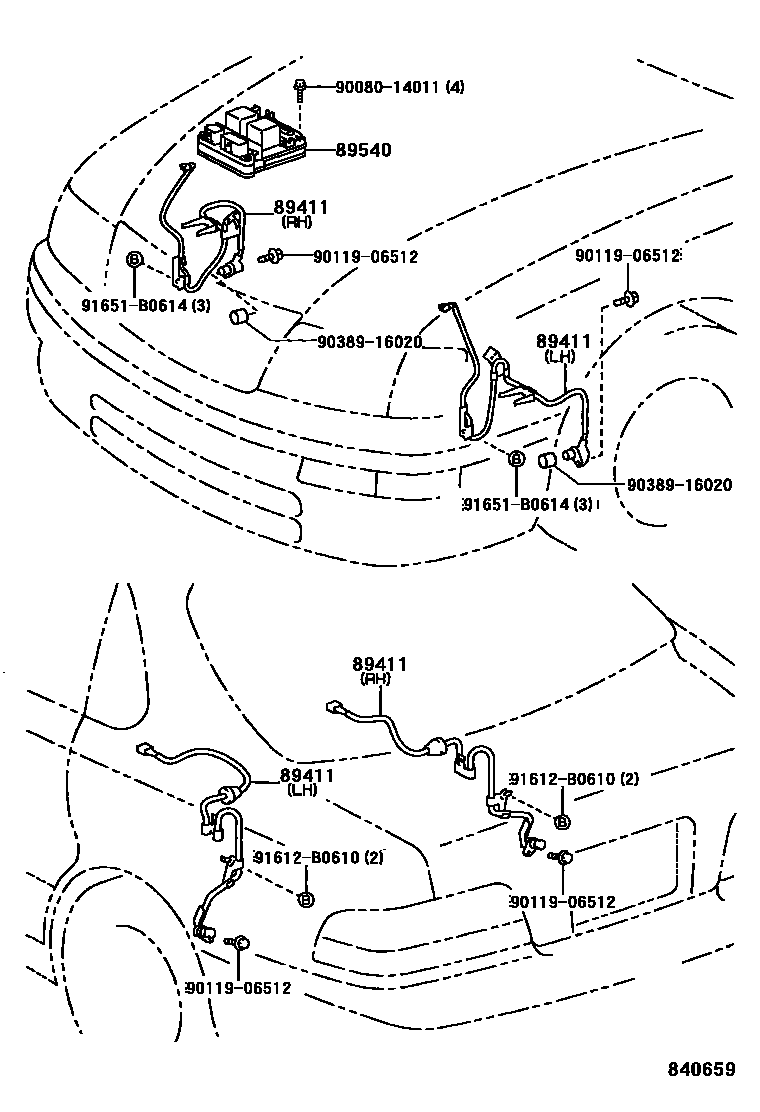

Toyota AVALON — ABS & VSC

89411SENSOR, SPEED

main89542-33010i199503-199608

FRONT RH

main89542-33030i199608-199708

FRONT RH

main89542-33050i199708

FRONT RH

main89543-33010i199503-199608

FRONT LH

main89543-33030i199608-199708

FRONT LH

main89543-33050i199708

FRONT LH

main89545-33010i199503-199608

REAR RH

main89545-33020i199608

REAR RH

main89546-33010i199503-199608

REAR LH

main89546-33020i199608

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89540-41010i199608-199703

main89540-41011i199703

main89541-07010i199503-199608

9008014011

main90080-14011

9011906512

main90119-06512

9038916020

main90389-16020

91612B0610

main91612-B0610

91651B0614

main91651-B0614

7 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota AVALON

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota AVALON. Key components include: RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, SENSOR, SPEED, COMPUTER ASSY, SKID CONTROL, COVER, ABS RELAY BLOCK, UPPER.
