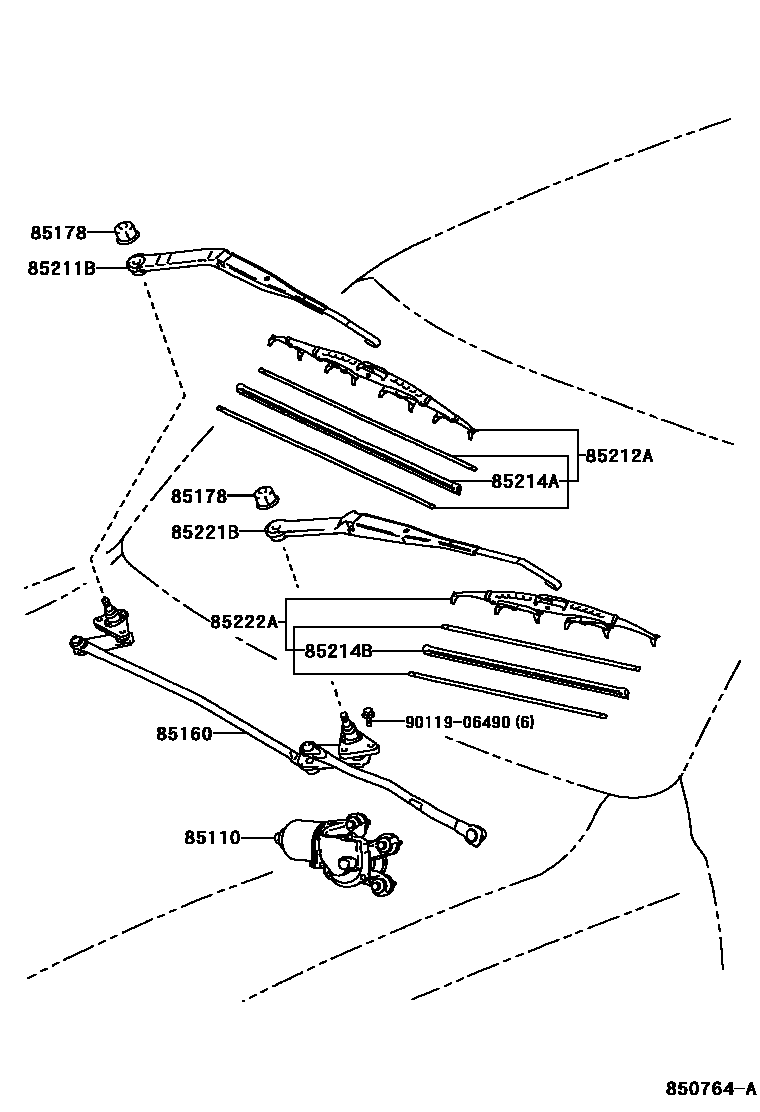

Toyota AVALON — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-41010iMCX10200004-200309

85160LINK ASSY, WINDSHIELD WIPER

main85150-YF010iMCX10200004-200309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iMCX10200004-200309

85211BARM, FRONT WIPER, RH

main85211-YF010iMCX10200004-200309

85212ABLADE, FR WIPER, RH

main85212-YC030iMCX10200004-200309

85214ARUBBER, WIPER, RH

main85214-YC020iMCX10200004-200208

main85214-YC900iMCX10200208-200309

85214BRUBBER, WIPER, LH

main85214-YC010iMCX10200004-200208

main85214-YC900iMCX10200208-200309

85221BARM, FRONT WIPER, LH

main85221-YF010iMCX10200004-200309

85222ABLADE, FR WIPER, LH

main85222-YC030iMCX10200004-200309

9011906490

main90119-06490

10 parts on this diagram · 1 diagram in section
