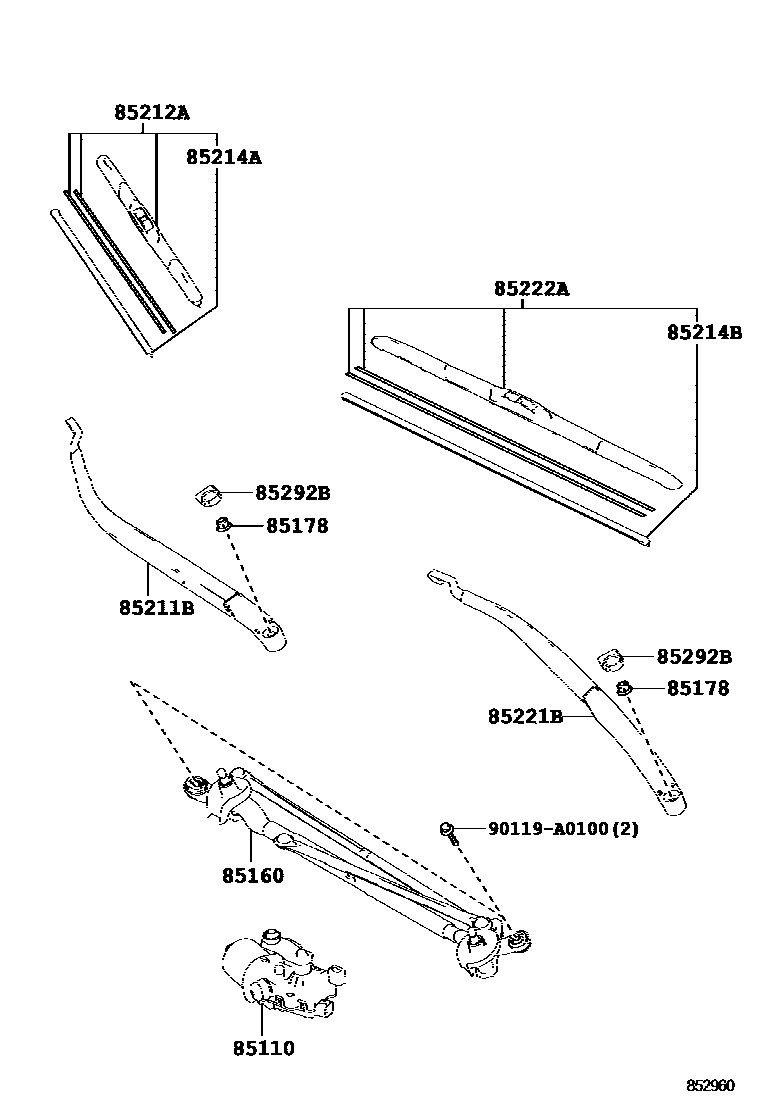

Toyota AVALON — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06120iGSX40201210-201409

main85110-06190iGSX40201410-201510

85160LINK ASSY, WINDSHIELD WIPER

main85150-07050iGSX40201210-201510

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017×2iGSX40201210-201510

85211BARM, FRONT WIPER, RH

main85211-07050iGSX40201210-201510

85212ABLADE, FR WIPER, RH

main85212-06130iGSX40201210-201510

85214ARUBBER, WIPER, RH

main85214-06100iGSX40201210-201510

sub85214-0E130

85214BRUBBER, WIPER, LH

main85214-0E151iGSX40201509-201510

main85214-0T050iGSX40201210-201508

85221BARM, FRONT WIPER, LH

main85221-07050iGSX40201210-201510

85222ABLADE, FR WIPER, LH

main85222-06130iGSX40201210-201508

main85222-06131iGSX40201509-201510

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iGSX40201210-201510

90119A0100

main90119-A0100

11 parts on this diagram · 1 diagram in section
