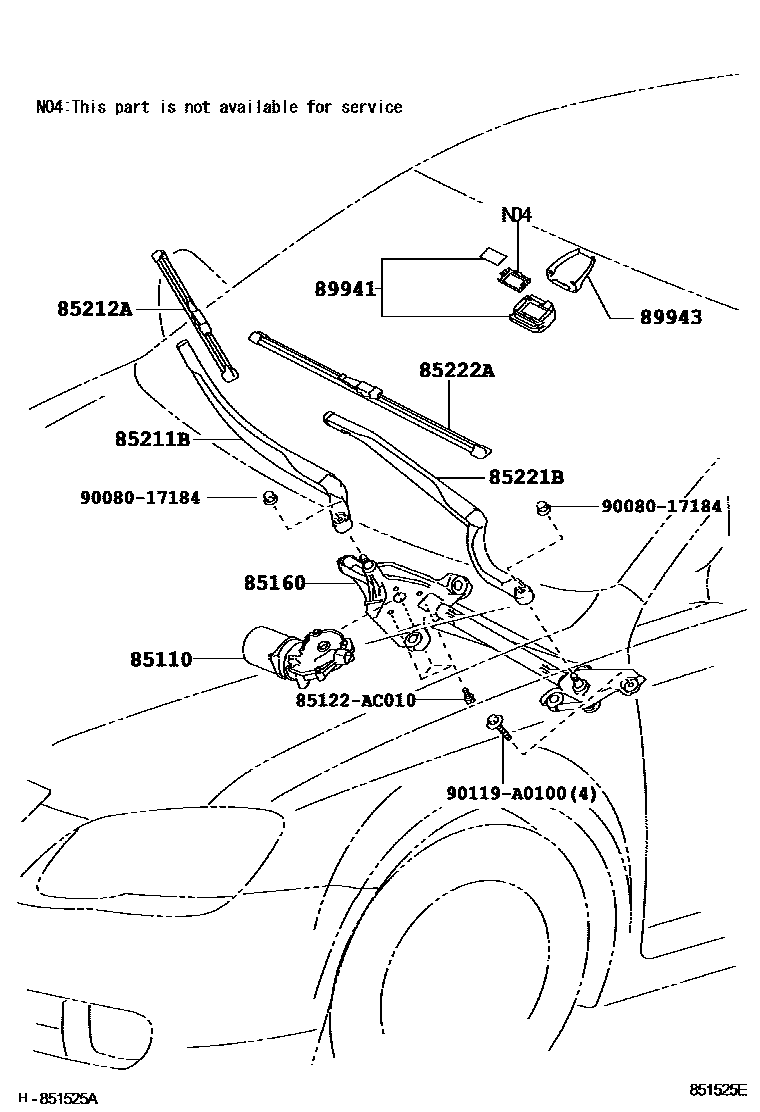

Toyota AVALON — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-AC010i200501-201003

85160LINK ASSY, WINDSHIELD WIPER

main85150-AC010i200501-201003

85211BARM, FRONT WIPER, RH

main85211-AC010i200501-201003

85212ABLADE, FR WIPER, RH

main85212-AC010i200501-200904

main85212-AC011i200904-201003

85221BARM, FRONT WIPER, LH

main85221-AC010i200501-201003

85222ABLADE, FR WIPER, LH

main85222-AC010i200501-200604

main85222-AC011i200605-200904

main85222-AC012i200904-201003

89941SENSOR, RAIN

main89941-AC010i201005

89943COVER, RAIN SENSOR

main89943-60010i201005

85122AC010PLATE, WINDSHIELD WIPER MOTOR CAM

main85122-AC010

9008017184

main90080-17184

90119A0100

main90119-A0100

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota AVALON

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota AVALON. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, ARM, FRONT WIPER, LH.
