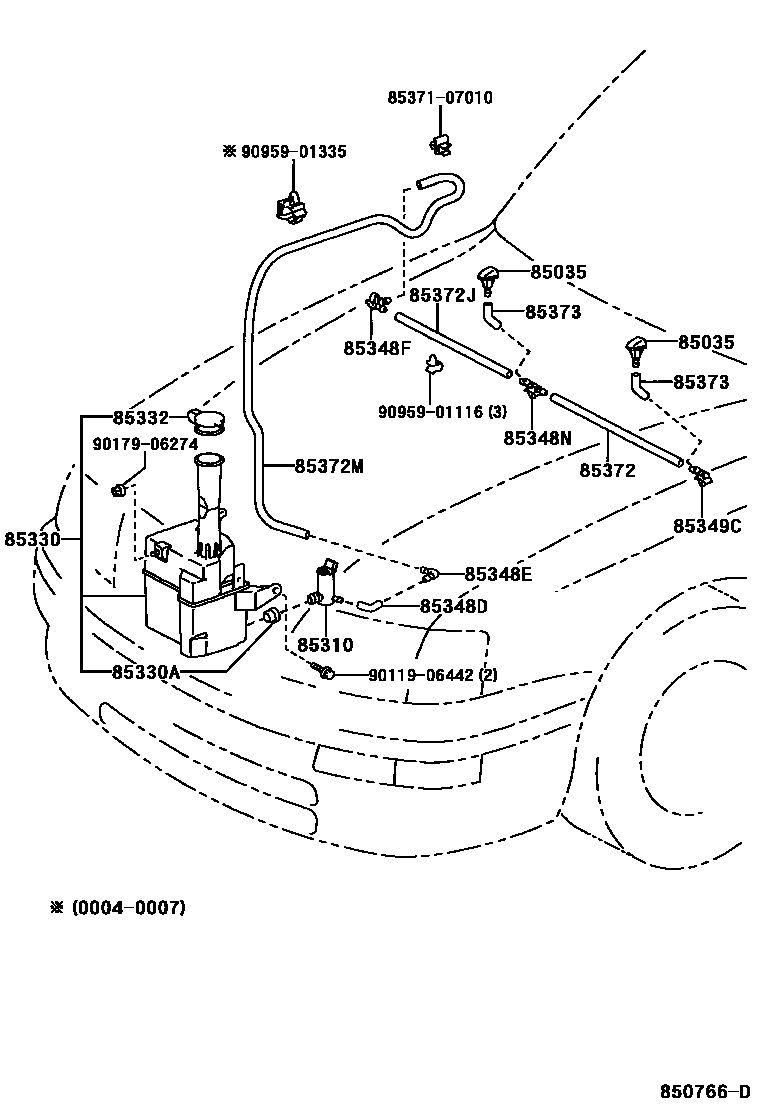

Toyota AVALON — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
BLACK,061 ,173 ,2GN ,3N6 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,3N6 ,3N9 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,3N6 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,2GN ,3N4 ,3N6 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,3N4 ,3N6 ,3N9 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,3N4 ,3N6 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,2GN ,2HR ,2HS ,2HW ,3N4 ,3N6 ,4N5 ,6P3 ,6P7 ,6P8 ,8L3 ,8N3
BLACK,061 ,173 ,3N4 ,3N6 ,4N5 ,6P7 ,6P8
BLACK,061 ,173 ,2HR ,2HS ,2HW ,3N4 ,3N6 ,4N5 ,6P7 ,6P8
BLACK,TRIM1#
BLACK,TRIM1#,4#
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=520)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=480)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1790
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=85)
8537107010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-07010
9011906442
main90119-06442
9017906274
main90179-06274
9095901116
main90959-01116
9095901335
main90959-01335
19 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota AVALON
This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVALON. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
