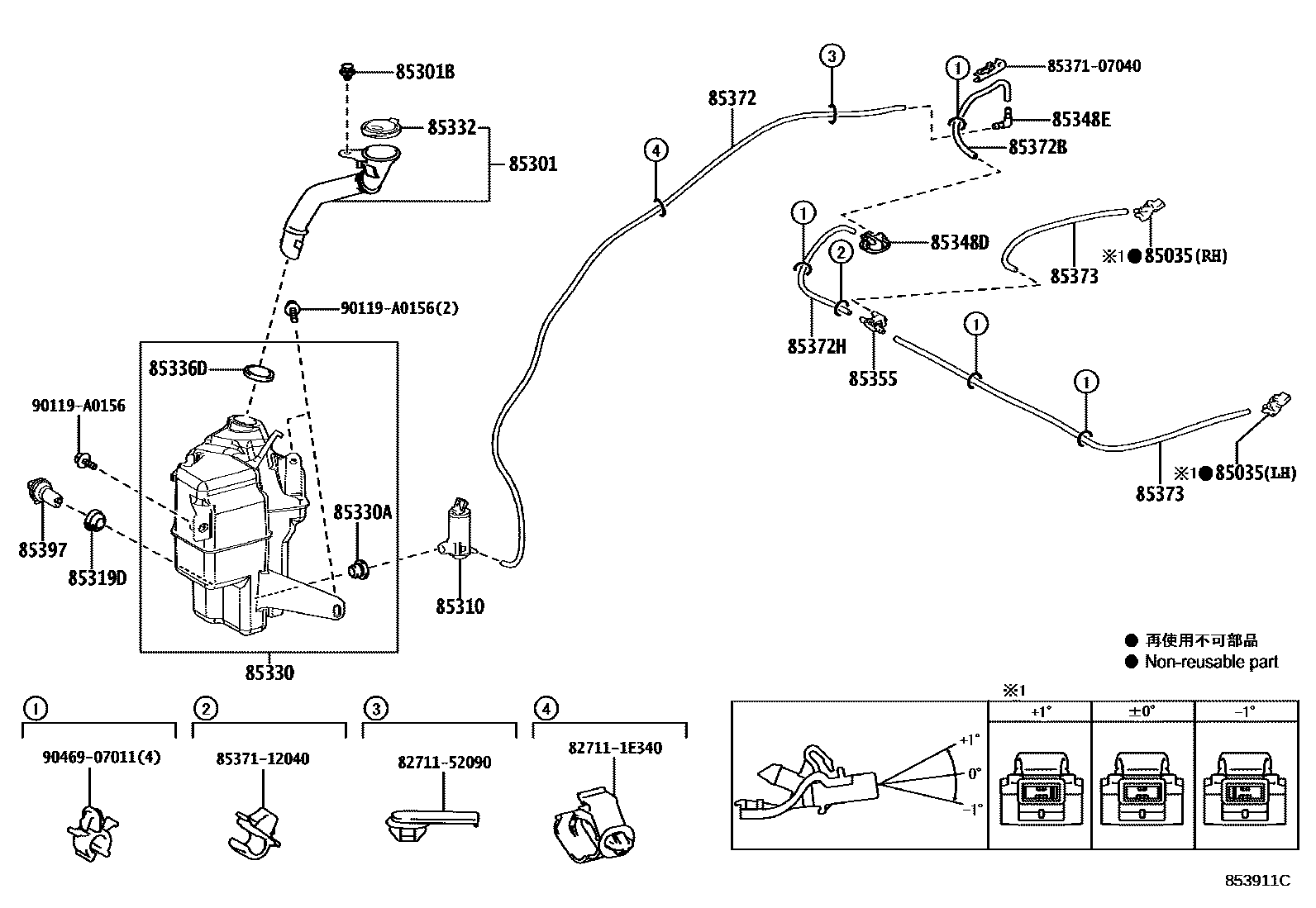

Toyota AVALON — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0T010iGSX50201806-202008

ANGLE 0

main85381-0T020iGSX50202008

ANGLE +1

main85381-0T030iGSX50201806-202008

ANGLE -1

85301INLET SUB-ASSY, WASHER

main85301-06010iGSX50201806-202008

85301BCLIP, WASHER

main90467-07214iGSX50202008

(J)

main90467-A0037iGSX50201806-202008

(L)

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04011iGSX50201806-202008

85319DPACKING, FRONT WASHER

main85319-AA020iGSX50201806-202008

85330JAR ASSY, WINDSHIELD WASHER

main85315-06230iGSX50201806-202008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGSX50201806-202008

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iGSX50202008

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iGSX50201806-202008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-33030iGSX50201806-202008

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85375-02260iGSX50201806-202008

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGSX50201806-202008

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33224iGSX50201806-202008

L=1200

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33011iGSX50201806-202008

L=1250(*H,L=340)

sub90068-33017

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-45008iGSX50202008

L=460

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46090iGSX50202008

L=290

main90069-46091iGSX50201806-202008

L=625

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040iGSX50201806-202008

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537107040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-07040

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

90119A0156

main90119-A0156

9046907011

main90469-07011

23 parts on this diagram · 1 diagram in section
