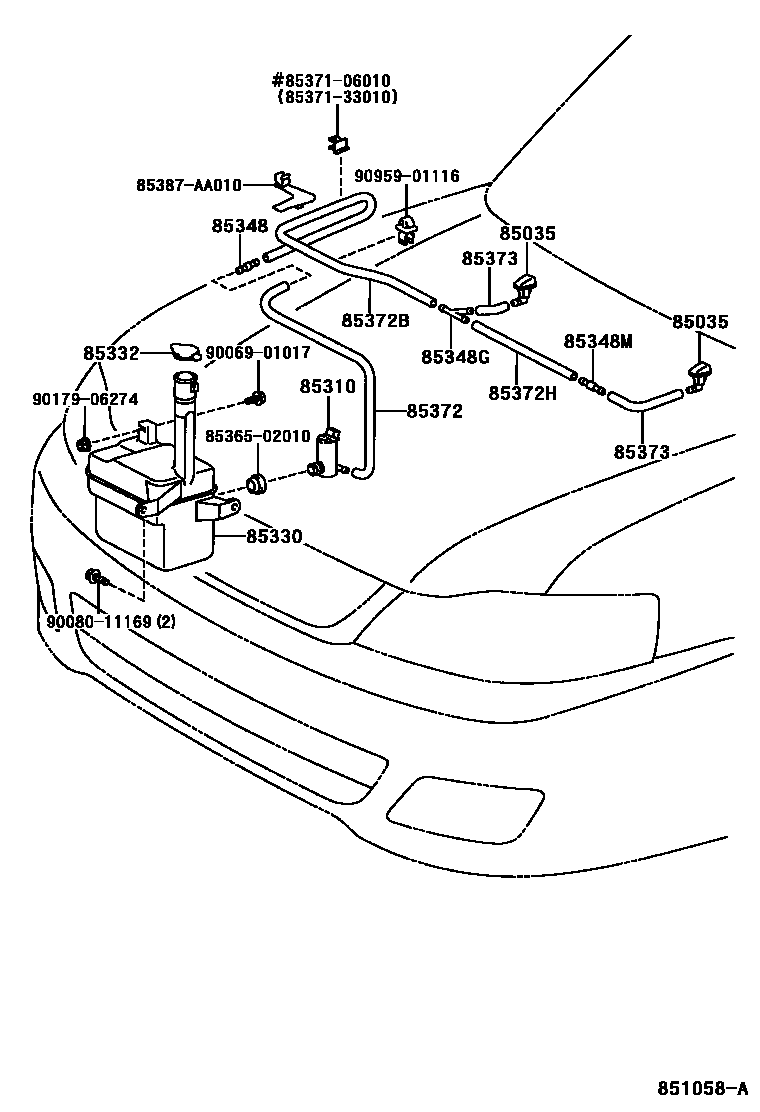

Toyota AVALON — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SU. WHITE PM,051
SILVER ME,1C8
BLACK,202
DK.RED MC.,3Q7
BEIGE M.M,4Q2
GREEN MC,6R1
DK. GREEN MC.,6S7
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=2150
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=530
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=130)
8536502010INSULATOR, WINDSHIELD WASHER JAR
main85365-02010
8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-06010
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
85387AA010CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-AA010
9006901017
main90069-01017
9008011169
main90080-11169
9017906274
main90179-06274
9095901116
main90959-01116
19 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota AVALON
This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVALON. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR, JOINT, WINDSHIELD WASHER HOSE, NO.1.
