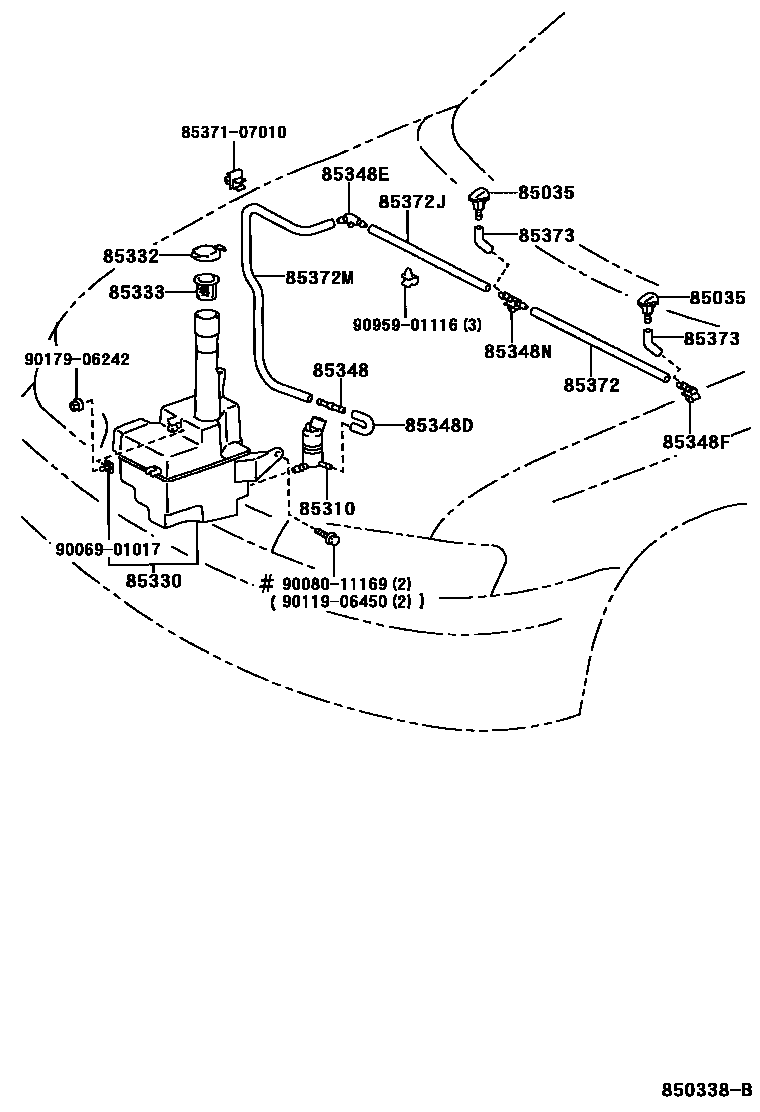

Toyota AVALON — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-33020×2i199508

main85385-41010-A0×2i199508-199709

SUPER WHITE 2,040

main85385-41010-A1×2i199508-199709

SU.WHITE PM,051

main85385-41010-D0×2i199508-199608

MAGENT MC,3L3

main85385-41010-E1×2i199508-199709

BEIGE ME,4M9

main85385-41010-G0×2i199508-199608

GR.GREEN ME,6M3

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06030i199508

85330JAR ASSY, WINDSHIELD WASHER

main85315-06030i199508

85332CAP, WINDSHIELD WASHER JAR

main85316-06020i199508

85333FILTER, WINDSHIELD WASHER JAR

main85333-03010i199508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85357-07010i199904

main85377-01010i199508-199904

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-06010i199508-199904

main85376-06011i199904-199908

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85377-06020i199508-199908

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-06010i199508-199908

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85378-06010i199508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-06040i199508

L=520

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-07010i199508

L=760

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main85374-06080i199508

L=1785

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i199508

L=1450(*H,L=85)

8537107010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-07010

9006901017

main90069-01017

9008011169

main90080-11169

9011906450

main90119-06450

9017906242

main90179-06242

9095901116

main90959-01116

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota AVALON

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVALON. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR, FILTER, WINDSHIELD WASHER JAR.
