Toyota AVALON — V-BELT

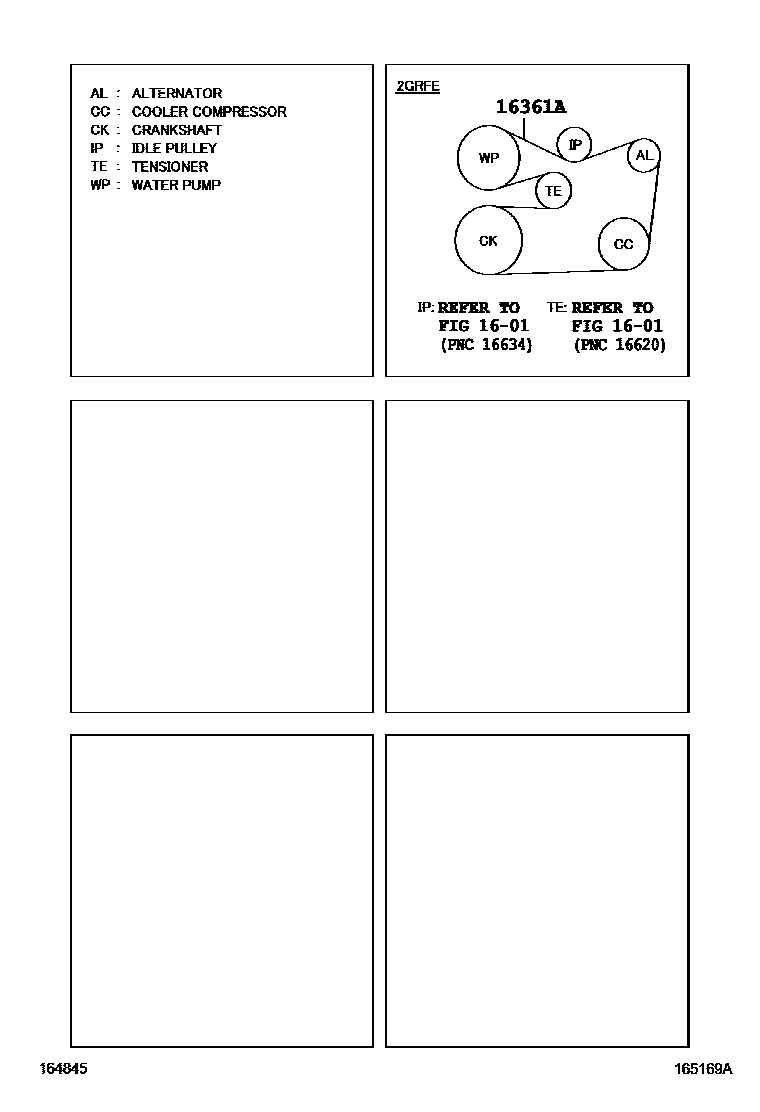

Parts diagram
1601WATER PUMP
→ Go to FIG 16-01
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-A2019i201210-201510

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota AVALON

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota AVALON. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
