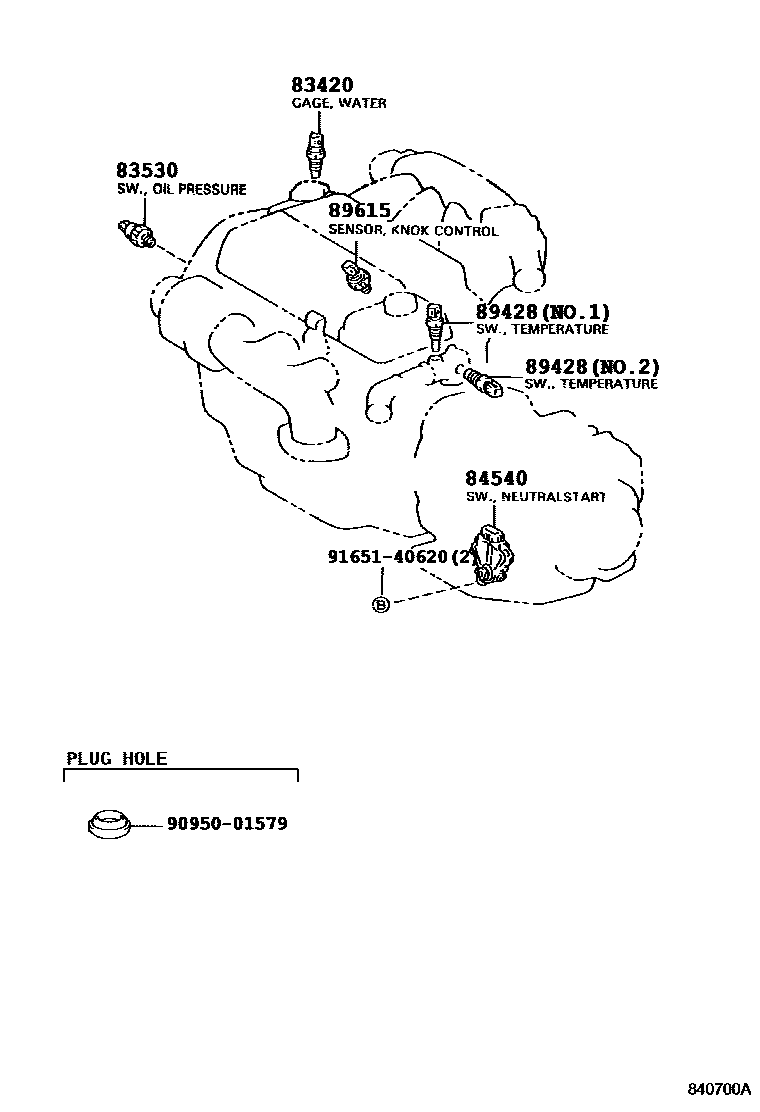

Toyota AVALON — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SWITCH 0005 1COWL 0006 1ROOF,FLOOR,DOOR 0007 1COMBINATION SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCX10199508-199703

main83420-AA010iMCX10199703-199808

TYPE B:REFER TO ILLUSTRATION

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX10199805

DENSO

main83530-30090iMCX10199508-199709

YAZAKI

main83530-60020iMCX10199709

YAZAKI

main83530-AA011iMCX10199707

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX10199508

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-30130iMCX10199608

NO.2

main89428-41010iMCX10199508-199608

NO.2

89615SENSOR, KNOCK CONTROL

main89615-12040×2iMCX10199508

9095001579

main90950-01579

9165140620

main91651-40620

7 parts on this diagram · 7 diagrams in section
