Toyota AVALON — STEERING WHEEL

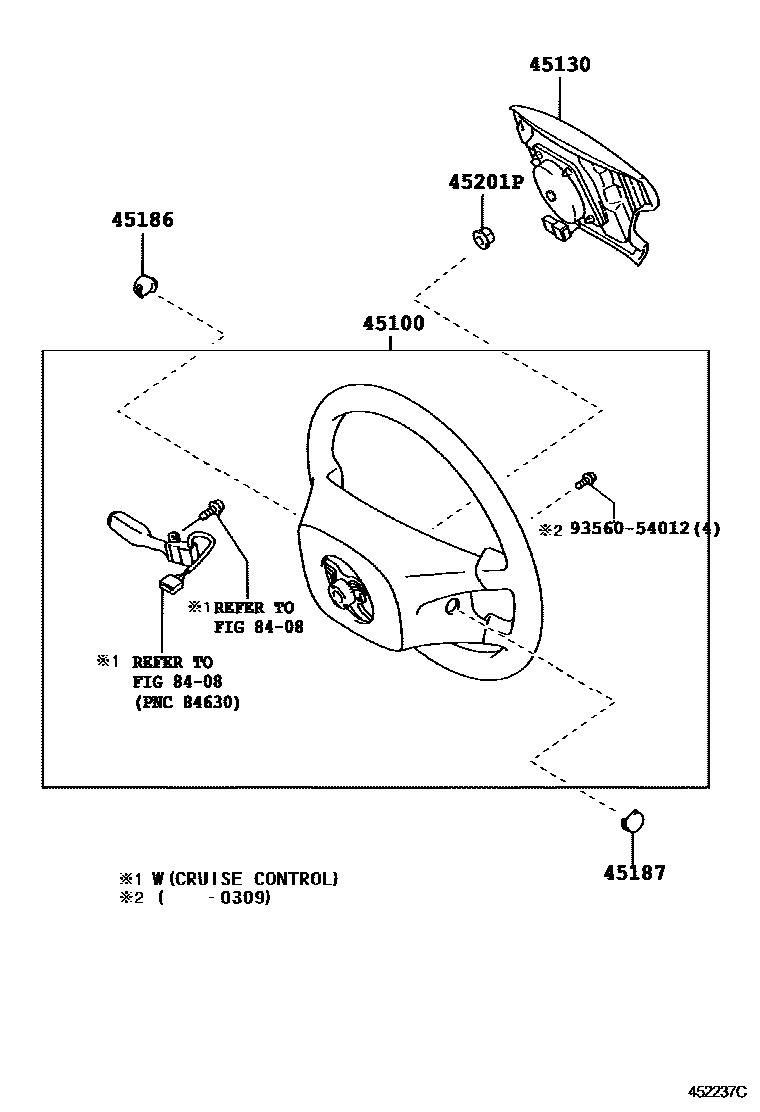

Parts diagram
45100WHEEL ASSY, STEERING
main45100-06291-A0i200309-200506
4-SPOKE,URETHANE,BLACK,TRIM1#
main45100-06291-B1i200004-200309
4-SPOKE,URETHANE,DK.STONE,TRIM1#
main45100-06291-E1i200004-200309
4-SPOKE,URETHANE,SANDAL WOOD,TRIM4#
main45100-06301-A0i200309-200506
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#
main45100-06301-B1i200004-200309
4-SPOKE,URETHANE,DK.STONE,TRIM1#; 4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.STONE,TRIM1#
main45100-06301-E1i200004-200309
4-SPOKE,URETHANE,SANDAL WOOD,TRIM4#; 4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM4#
main45100-06321-A0i200309-200506
4-SPOKE,LEATHER,BLACK,TRIM12
main45100-06321-B1i200309-200506
4-SPOKE,LEATHER,DK.STONE,TRIM1#; 4-SPOKE,LEATHER,DK.STONE,TRIM12
main45100-06321-E1i200004-200209
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
main45100-07130-B0i200004-200110
4-SPOKE,LEATHER,DK. STONE,TRIM1#
main45100-07130-E0i200004-200110
4-SPOKE,LEATHER,SANDAL WOOD,TRIM4#
main45100-07140-B0i200110-200309
4-SPOKE,WOOD&LEATHER,DK. STONE,TRIM1#
main45100-07140-E0i200110-200309
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
main45100-07200-B0i200309-200506
4-SPOKE,WOOD&LEATHER,DK. STONE,TRIM1#
main45100-07200-E0i200309-200506
4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM4#
45130BUTTON ASSY, HORN
main45130-06042-A0i200309-200506
BLACK,TRIM1#
main45130-06042-B1i200004-200309
DK. STONE,TRIM1#
main45130-06042-E1i200309-200506
SANDAL WOOD,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-06060-A0i200309-200506
BLACK,TRIM1#
main45186-06060-B1i200309-200506
DK.STONE,TRIM1#
main45186-06060-E1i200004-200309
SANDAL WOOD,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45186-06060-A0i200309-200506
BLACK,TRIM1#
main45186-06060-B1i200004-200309
DK.STONE,TRIM1#
main45186-06060-E1i200004-200309
SANDAL WOOD,TRIM4#
45201PNUT, STEERING WHEEL SET
main90179-12071i200004-200309
8408CRUISE CONTROL (AUTO DRIVE)
→ Go to FIG 84-08
9356054012
main93560-54012

7 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota AVALON

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVALON. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, NUT, STEERING WHEEL SET.
