Toyota AVALON — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-06Q50-C2i201806-201908

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-06Q50-C3i202008

3-SPOKE,URETHANE,BLACK & BLACK,TRIM1#,2#,4#

main45100-07520-C0i201806-201908

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-07520-C1i201908-202008

3-SPOKE,LEATHER,BLACK & BLACK,TRIM1#,2#,4#

45130BUTTON ASSY, HORN

main45130-06480-C0i201806-201808

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main45130-06530-C0i201809-202008

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-06370-C0×3i201806-202008

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

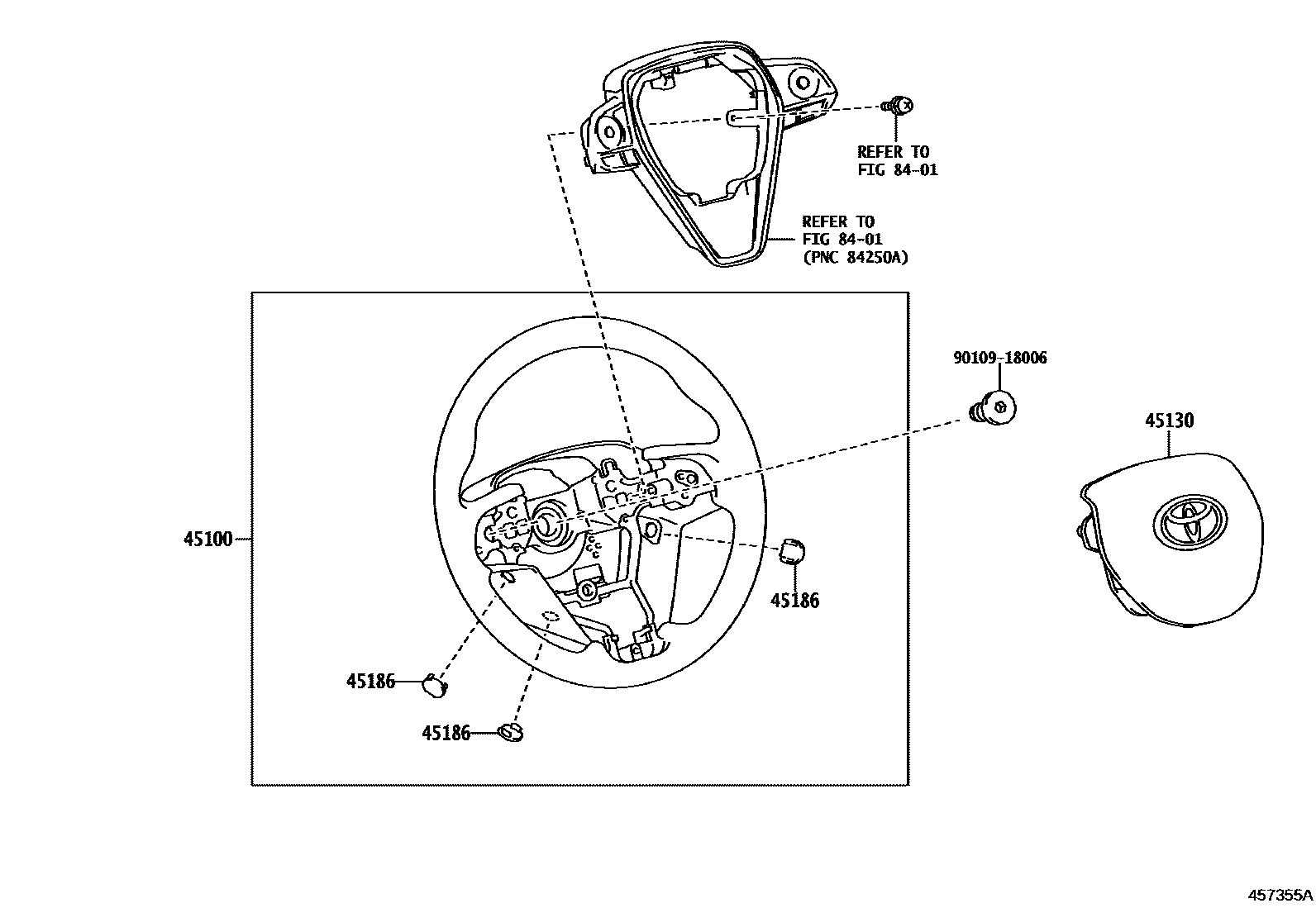

5 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota AVALON

This section contains 5 genuine Toyota parts for the STEERING WHEEL system of the Toyota AVALON. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, SWITCH & RELAY & COMPUTER.
