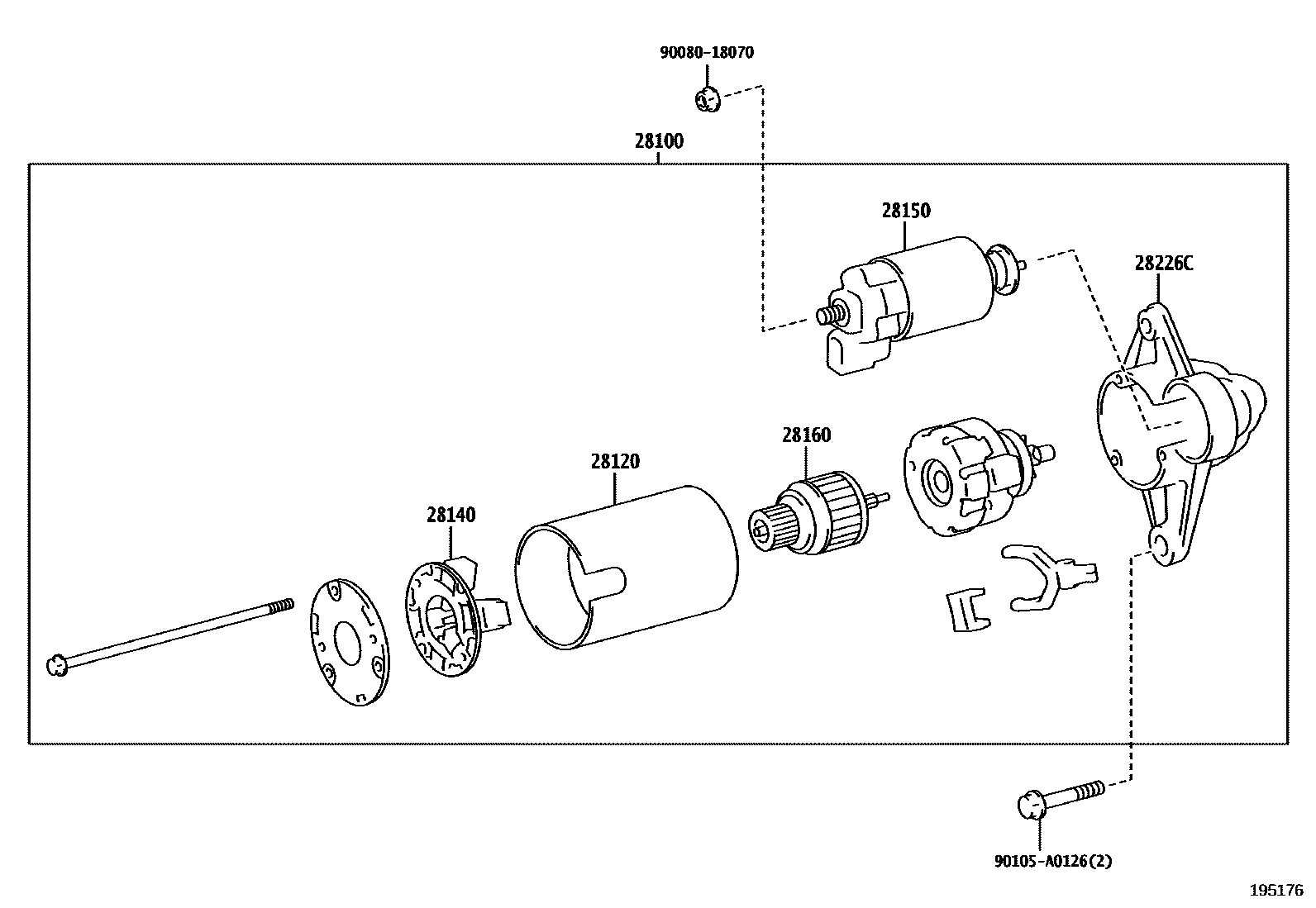

Toyota AVALON — STARTER

28100STARTER ASSY

main28100-0P130i2GRFKS..GSX50202008

12V 1.8KW

28120YOKE ASSY, STARTER

main28120-31090i2GRFKS..GSX50201806-202008

28140HOLDER ASSY, STARTER BRUSH

main28140-31240i2GRFKS..GSX50201806-202008

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i2GRFKS..GSX50202008

28160ARMATURE ASSY, STARTER

main28160-31240i2GRFKS..GSX50201807-201910

main28160-36190i2GRFKS..GSX50202104

main28160-36210i2GRFKS..GSX50201910-202008

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-31240i2GRFKS..GSX50201806-202008

9008018070

main90080-18070

90105A0126

main90105-A0126

8 parts on this diagram · 1 diagram in section
