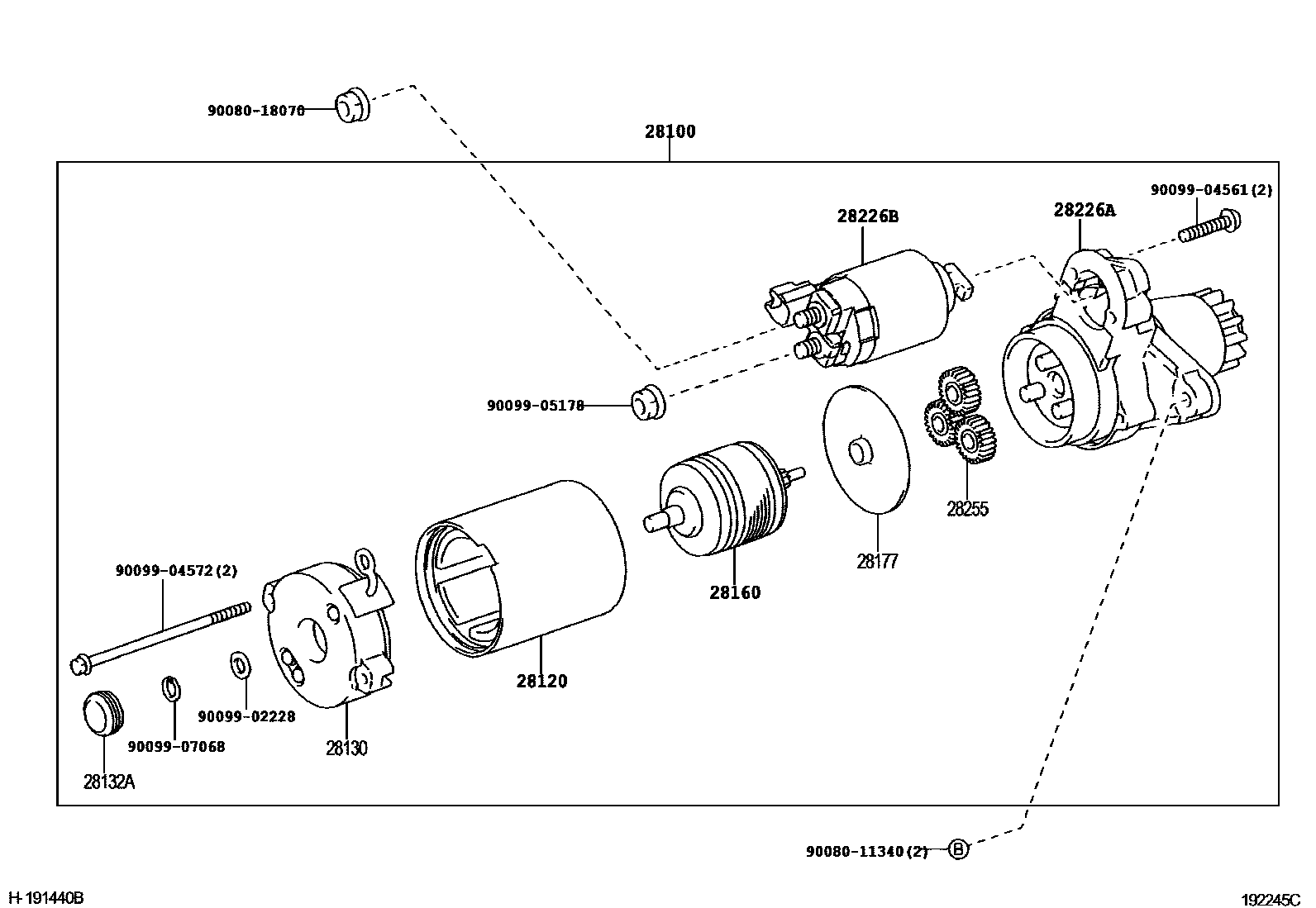

Toyota AVALON — STARTER

28100STARTER ASSY

main28100-0A010i2GRFE..GSX30200707-200911

12V 1.7KW

main28100-0A011i2GRFE..GSX30200912-201003

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28040i2GRFE..GSX30200501-200707

main28120-28060i2GRFE..GSX30200808-201003

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2GRFE..GSX30200707-201003

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFE..GSX30200707-201003

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GSX30200707-201003

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFE..GSX30200707-201003

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2GRFE..GSX30200501-200707

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2GRFE..GSX30200501-200707

28255GEAR, PLANET

main28255-0A010×3i2GRFE..GSX30201011

main28255-20020×3i2GRFE..GSX30200707-201003

9008011340

main90080-11340

9008018070

main90080-18070

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

16 parts on this diagram · 1 diagram in section
