Toyota AVALON — STARTER

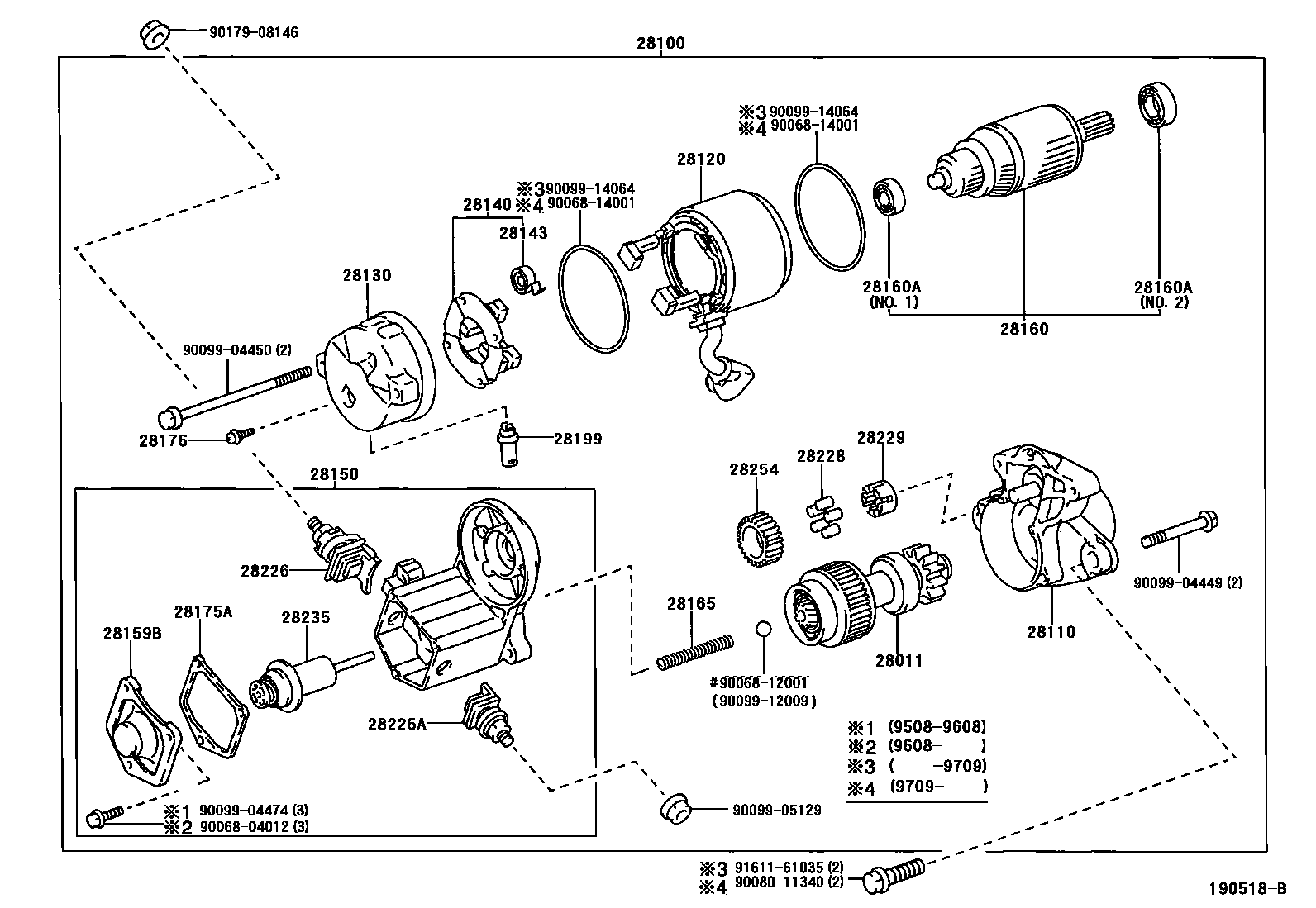

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-03010i199508-199608
main28011-74070i199608
28100STARTER ASSY
main28100-03060i199508-199608
12V 1.2KW
main28100-03080i199608-199709
12V 1.2KW
main28100-03110i199709
12V 1.2KW
28110HOUSING ASSY, STARTER DRIVE
main28110-03010i199508-199709
main28110-03100i199709
28120YOKE ASSY, STARTER
main28120-02030i199508-199608
sub28120-16180
main28120-0W030i199608
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-03020i199508-199709
main28130-03110i199709
28140HOLDER ASSY, STARTER BRUSH
main28140-03020i199508
28143SPRING, STARTER BRUSH
main28143-76060×4i199508
28150SWITCH ASSY, MAGNET STARTER
main28150-03020i199508-199608
sub28150-74140
main28150-03080i199608-199709
main28150-03100i199709
28159BCOVER, MAGNET SWITCH
main28159-07010i199508
28160ARMATURE ASSY, STARTER
main28160-0W020i199508
28160ABEARING, STARTER ARMATURE
main90068-10003i199508
NO.1
main90068-10004i199508
NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-74070i199508
28175AGASKET, MAGNET SWITCH COVER
main28175-55050i199508
28176SCREW, STARTER
main28176-15090×2i199508-199709
sub28176-87701
main90068-00007×2i199709
28199COVER, STARTER
main28199-74110i199508
28226STARTER KIT, BATTERY TERMINAL
main28226-55050i199508
sub28226-64370
28226ASTARTER KIT, MOTOR TERMINAL
main28226-74070i199508
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040×5i199508
28229RETAINER, STARTER IDLE GEAR
main28229-01020i199709
main28229-03010i199508-199709
28235PLUNGER, MAGNET SWITCH
main28235-03080i199508
28254PINION, STARTER IDLE GEAR
main28254-03010i199508
9006804012
main90068-04012
9006812001
main90068-12001
9006814001
main90068-14001
9008011340
main90080-11340
9009904449
main90099-04449
9009904450
main90099-04450
9009904474
main90099-04474
9009905129
main90099-05129
9009912009
main90099-12009
9009914064
main90099-14064
9017908146
main90179-08146
9161161035
main91611-61035

33 parts on this diagram · 1 diagram in section
