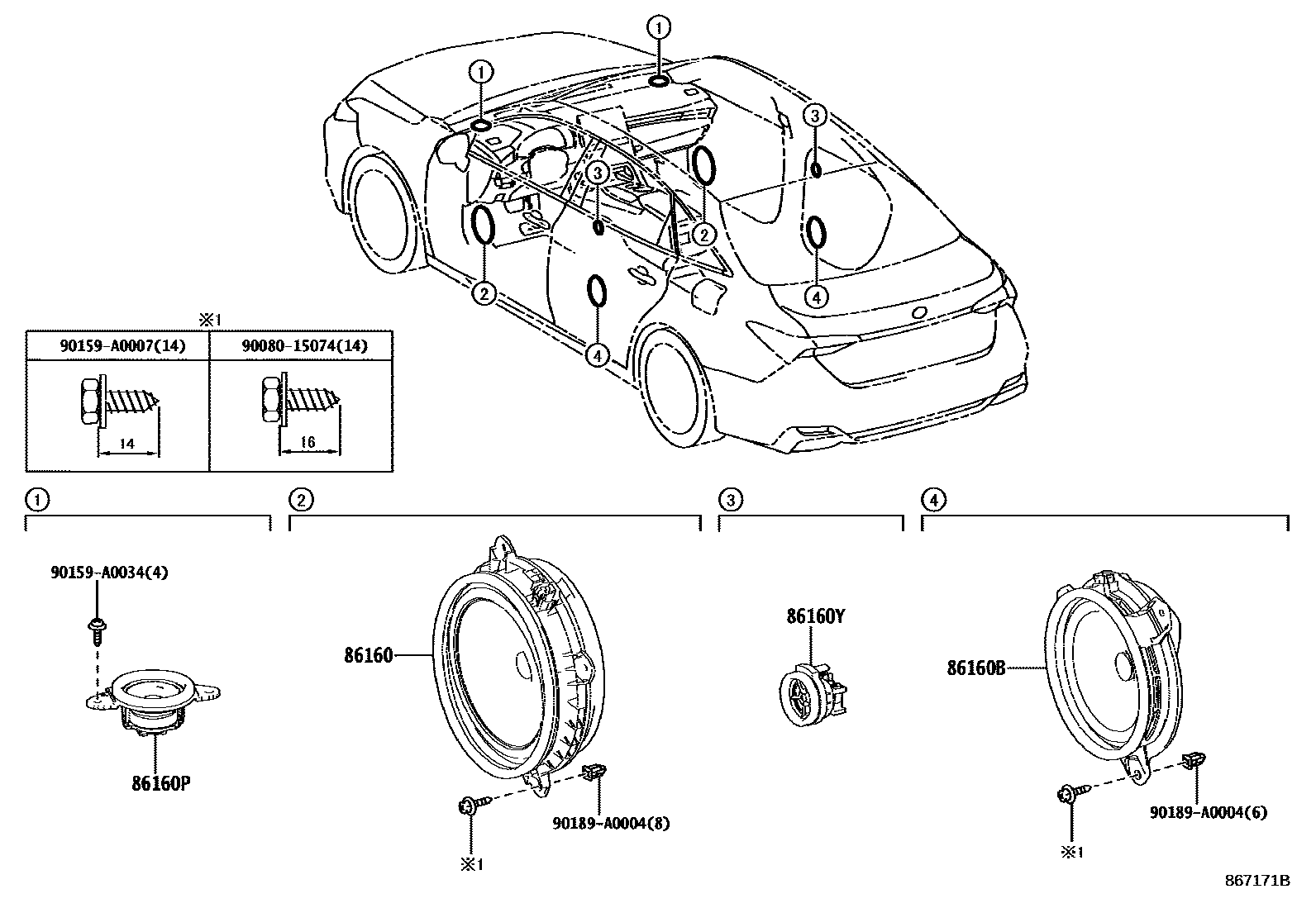

Toyota AVALON — SPEAKER

0001 18SPEAKER 0002 114SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06850×2iGSX50..LIMD201806-202008

main86160-06890×2iGSX50..XLE201806-202008

86160BSPEAKER ASSY, REAR

main86160-02B40×2iGSX50..XLE202008

main86160-06840×2iGSX50..LIMD201806-201908

main86160-0R090×2iGSX50..XLE201806-201908

main86160-0WY50×2iGSX50..LIMD201908-202008

86160PSPEAKER ASSY, FRONT NO.2

main86160-06380×2iGSX50..XLE201806-202008

main86160-06A40×2iGSX50..LIMD201806-202008

86160YSPEAKER ASSY, REAR NO.2

main86150-07100×2iGSX50..LIMD201806-202008

main86160-0R010×2iGSX50..XLE202008

9008015074

main90080-15074

90159A0007

main90159-A0007

90159A0034

main90159-A0034

90189A0004

main90189-A0004

8 parts on this diagram · 2 diagrams in section
