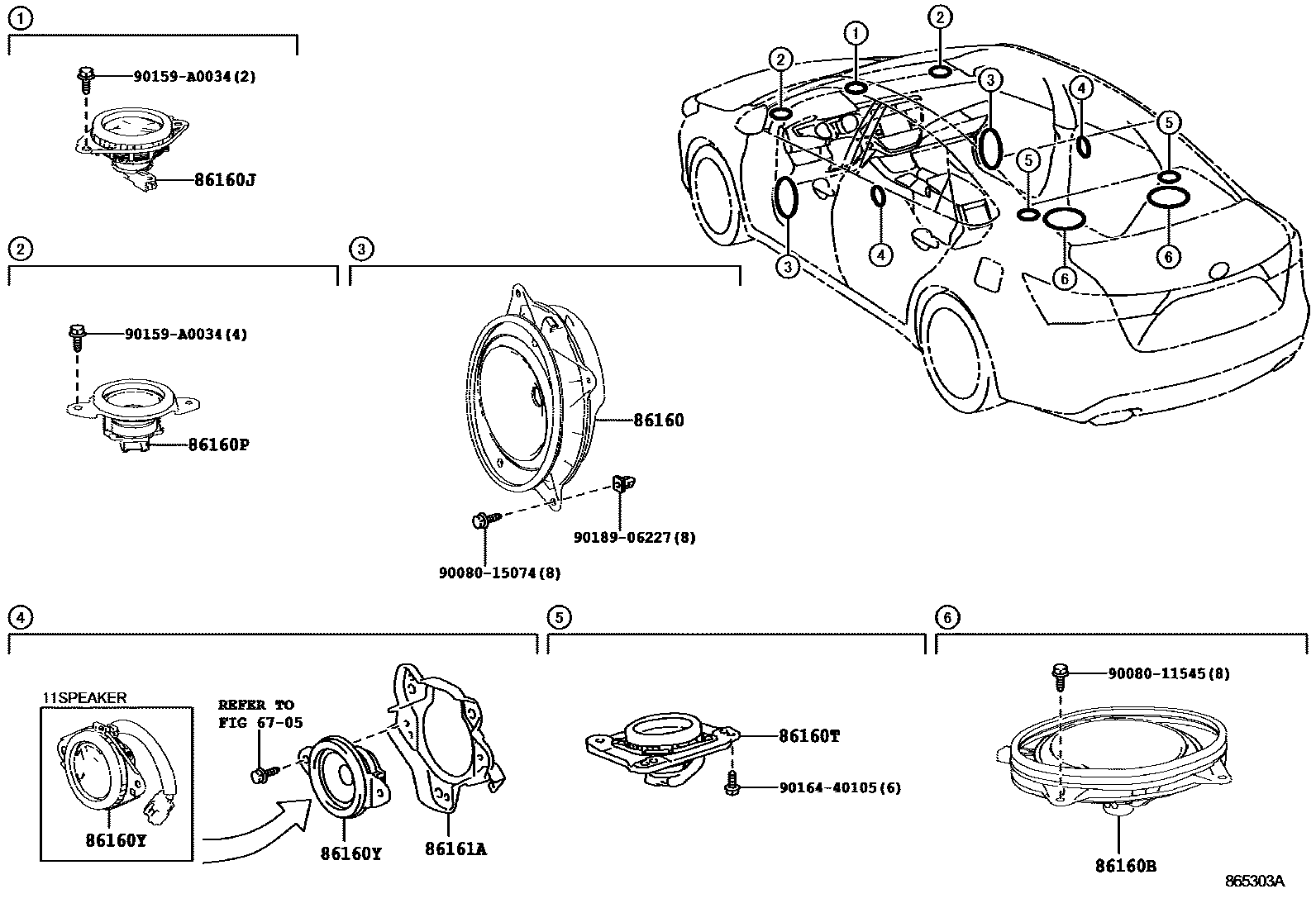

Toyota AVALON — SPEAKER

6705

86160SPEAKER ASSY, FRONT NO.1

main86160-0WU60×2supersedes 86160-06390iGSX40201210-201410

AUDIO-AVN & 11SPEAKER

86160BSPEAKER ASSY, REAR

main86160-0WU70×2supersedes 86160-06450iGSX40201410-201510

AUDIO-AVN & 11SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WU80iGSX40201510

AUDIO-AVN & 11SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WU50×2supersedes 86160-06380iGSX40201410-201510

AUDIO-AVN & 11SPEAKER

86160TSPEAKER ASSY, REAR HEADER

main86150-07030iGSX40201410-201510

AUDIO-AVN & 11SPEAKER,LH

main86150-07040iGSX40201410-201510

AUDIO-AVN & 11SPEAKER,RH

86160YSPEAKER ASSY, REAR NO.2

main86160-07100×2supersedes 86160-06380iGSX40201210-201410

AUDIO-AVN & 11SPEAKER

86161ABRACKET, SPEAKER, REAR

main86161-07010iGSX40201210-201510

RH

main86161-07020iGSX40201210-201510

LH

9008011545

main90080-11545

9008015074

main90080-15074

90159A0034

main90159-A0034

9016440105

main90164-40105

9018906227

main90189-06227

13 parts on this diagram · 1 diagram in section
