Toyota AVALON — SPEAKER

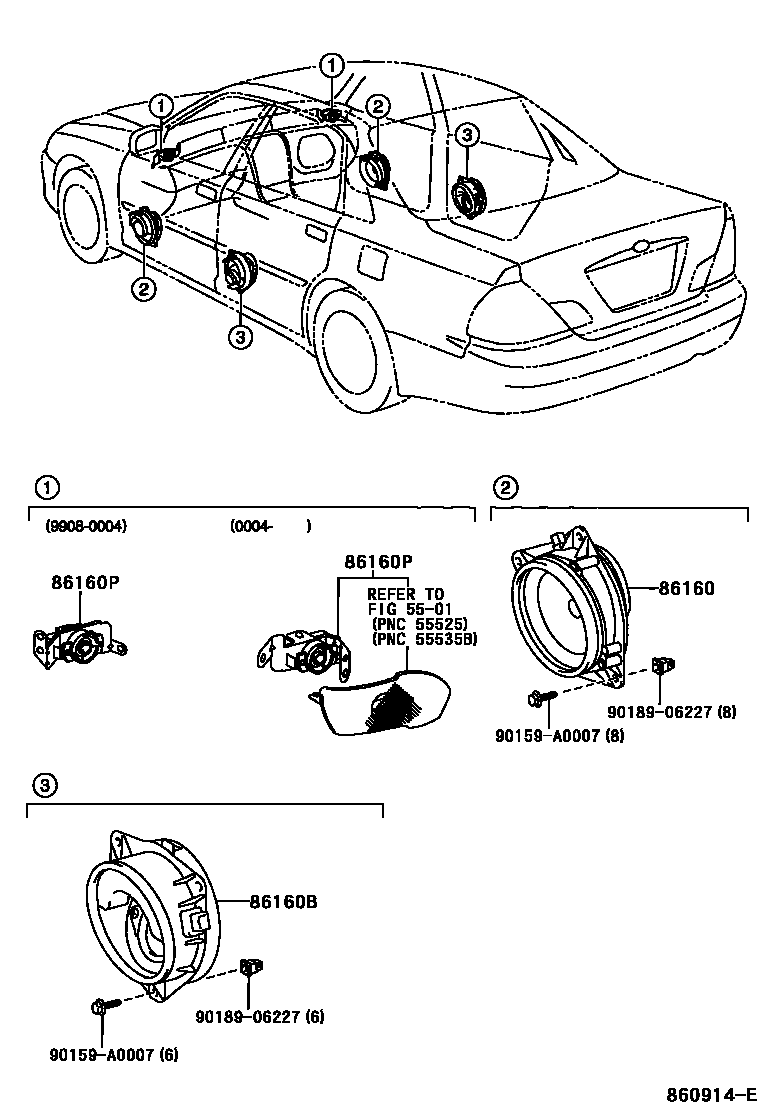

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86160SPEAKER ASSY, FRONT NO.1

main86160-AC040i199908-200206

RH

main86160-AC070i199908-200206

LH

86160BSPEAKER ASSY, REAR

main86160-AC080i199908-200206

RH

main86160-AC110i199908-200206

LH

86160PSPEAKER ASSY, FRONT NO.2

main86150-AC150i200004-200005

RH

main86150-AC151i200005-200206

RH

main86150-AC160i200004-200005

LH

main86150-AC161i200005-200206

LH

main86160-AC120i199908-200004

RH

main86160-AC130i199908-200004

LH

90159A0007

main90159-A0007

9018906227

main90189-06227

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota AVALON

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota AVALON. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
