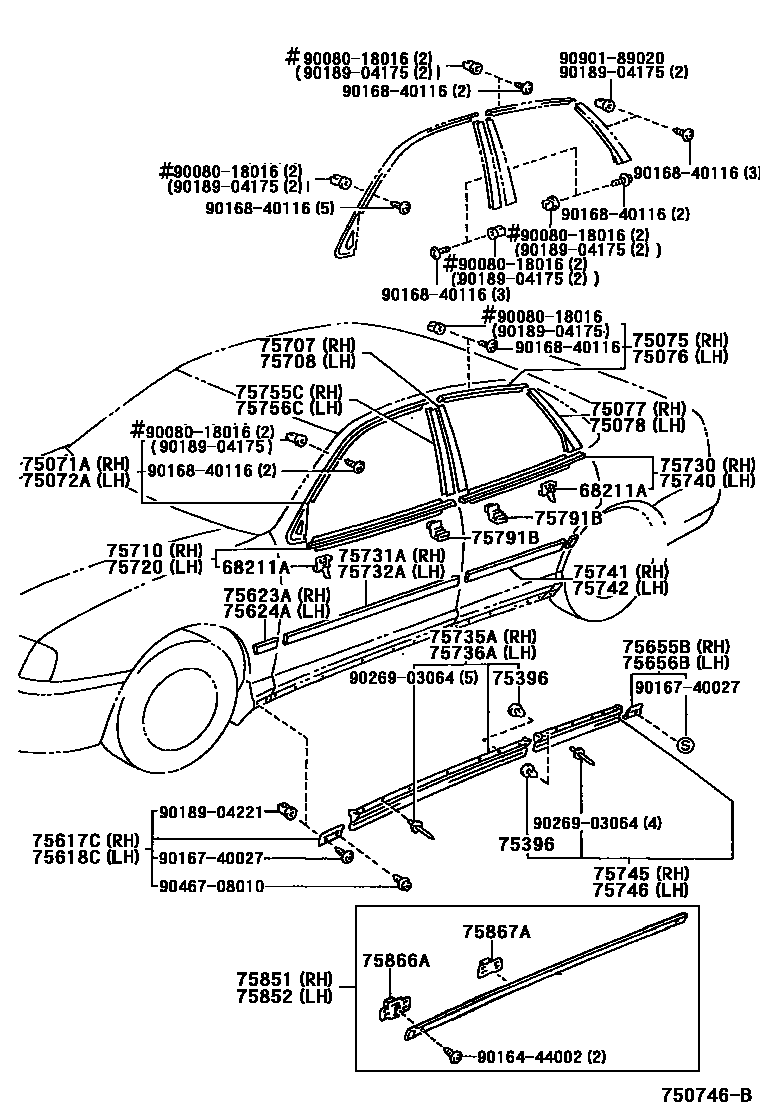

Toyota AVALON — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75396CLIP, OUTSIDE MOULDING, NO.2
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
UNPAINTED(BLACK)
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
UNPAINTED(BLACK)
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,2GN ,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75655BMOULDING, QUARTER PANEL, LOWER FRONT RH
75656BMOULDING, QUARTER PANEL, LOWER FRONT LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75732AMOULDING, FRONT DOOR, OUTSIDE LH
UNPAINTED(BLACK)
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75742MOULDING, REAR DOOR, OUTSIDE LH
UNPAINTED(BLACK)
DIAMOND WHITE,061
DK.SILVER ME.,2GH ,2GT ,2GU
SILVER M,173
WARM GRAY M.M.,2HR ,2HS
DK. RED MC.,3N6
DK.RED MC.,3N4
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DK. GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
MD.GREEN ME.,6P8
DARK GREEN MC.,6R4
DK.BLUE M.M.,8L3
DK.BLUE ME.,8N3
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
UNPAINTED(BLACK)
DIAMOND WHITE,061
SILVER M,173
BLACK MC.,209
DK. RED MC.,3N6
RED M.M.,3N8
LT.BEIGE ME.OP.,4N5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
LT.GREEN M.M.,6S8
DK.BLUE M.M.,8P4
PALE BLUE M.M.,8R0
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75791BCLIP, BELT MOULDING SIDE
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75866ARETAINER, ROCKER PANEL MOULDING
75867ACLIP, ROCKER PANEL MOULDING
9008018016
main90080-18016
9016444002
main90164-44002
9016740027
main90167-40027
9016840116
main90168-40116
9018904175
main90189-04175
9018904221
main90189-04221
9026903064
main90269-03064
9046708010
main90467-08010
9090189020
main90901-89020
44 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota AVALON
This section contains 44 genuine Toyota parts for the SIDE MOULDING system of the Toyota AVALON. Key components include: CLIP, DOOR BELT MOULDING, MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH, MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH, MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH, MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH.
