Toyota AVALON — SIDE MOULDING

75396CLIP, OUTSIDE MOULDING, NO.2

main75396-AC020i199908-200206

75398ACLIP, OUTSIDE MOULDING, NO.5

main75398-33020i199908-200206

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-AC010i199908-200206

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-AC010i199908-200206

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-AC010-A0i199908-200501

SU.WHITE PM,051

main75555-AC010-B0i199908-200501

SILVER ME.,1C8

main75555-AC010-C0i199908-200501

BLACK,202

main75555-AC010-D1i200206-200501

DK RED MC,3Q7

main75555-AC010-E0i199908-200501

BEIGE M.M.,4Q2

main75555-AC010-G0i200206-200501

GR.GREEN ME.,6M3

main75555-AC010-G1i199908-200206

GREEN MC.,6R1

main75555-AC010-G2i200206-200501

DK. GREEN MC.,6S7

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-AC010-A0i199908-199911

SU.WHITE PM,051

main75555-AC010-B0i199908-199911

SILVER ME.,1C8

main75555-AC010-C0i199908-199911

BLACK,202

main75555-AC010-E0i199908-199911

BEIGE M.M.,4Q2

main75555-AC010-G1i199908-199911

GREEN MC.,6R1

main75556-AC010-A0i199911-200501

SU.WHITE PM,051

main75556-AC010-B0i199911-200501

SILVER ME.,1C8

main75556-AC010-C0i199911-200501

BLACK,202

main75556-AC010-D1i200206-200501

DK RED MC,3Q7

main75556-AC010-E0i199911-200501

BEIGE M.M.,4Q2

main75556-AC010-G0i200206-200501

GR.GREEN ME.,6M3

main75556-AC010-G1i199911-200206

GREEN MC.,6R1

main75556-AC010-G2i200206-200501

DK. GREEN MC.,6S7

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-AC010i199908-200206

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-AC010i199908-200206

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-AC010i199908-200206

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-AC020-A0i199908-200206

SU.WHITE PM,051

main75731-AC020-B0i199908-200206

SLVER ME.,1C8

main75731-AC020-C0i199908-200206

BLACK,202

main75731-AC020-D1i200206

DK RED MC,3Q7

main75731-AC020-E0i199908-200206

BEIGE M.M.,4Q2

main75731-AC020-G0i200206

GR.GREEN ME.,6M3

main75731-AC020-G1i199908-200206

GREEN MC.,6R1

main75731-AC020-G2i200206

DK. GREEN MC.,6S7

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-AC020-A0i199908-200206

SU.WHITE PM,051

main75732-AC020-B0i199908-200206

SLVER ME.,1C8

main75732-AC020-C0i199908-200206

BLACK,202

main75732-AC020-D1i200206

DK RED MC,3Q7

main75732-AC020-E0i199908-200206

BEIGE M.M.,4Q2

main75732-AC020-G0i200206

GR.GREEN ME.,6M3

main75732-AC020-G1i199908-200206

GREEN MC.,6R1

main75732-AC020-G2i200206

DK. GREEN MC.,6S7

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-AC020-B0i199908-200206

GRAY,051 ,1C8 ,4Q2

main75735-AC020-B0i200206-200501

GRAY,051 ,1C8 ,4Q2 ,6M3

main75735-AC020-C0i199908-200206

BLACK,202 ,6R1

main75735-AC020-C0i200206-200501

BLACK,202 ,3Q7 ,6S7

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-AC020-B0i200206-200501

GRAY,051 ,1C8 ,4Q2 ,6M3

main75736-AC020-B0i199908-200206

GRAY,051 ,1C8 ,4Q2

main75736-AC020-C0i200206-200501

BLACK,202 ,3Q7 ,6S7

main75736-AC020-C0i199908-200206

BLACK,202 ,6R1

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-AC010i199908-200206

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-AC020-A0i199908-200206

SU.WHITE PM,051

main75741-AC020-B0i199908-200206

SLVER ME.,1C8

main75741-AC020-C0i199908-200206

BLACK,202

main75741-AC020-D1i200206

DK RED MC,3Q7

main75741-AC020-E0i199908-200206

BEIGE M.M.,4Q2

main75741-AC020-G0i200206

GR.GREEN ME.,6M3

main75741-AC020-G1i199908-200206

GREEN MC.,6R1

main75741-AC020-G2i200206

DK. GREEN MC.,6S7

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-AC020-A0i199908-200206

SU.WHITE PM,051

main75742-AC020-B0i199908-200206

SLVER ME.,1C8

main75742-AC020-C0i199908-200206

BLACK,202

main75742-AC020-D1i200206

DK RED MC,3Q7

main75742-AC020-E0i199908-200206

BEIGE M.M.,4Q2

main75742-AC020-G0i200206

GR.GREEN ME.,6M3

main75742-AC020-G1i199908-200206

GREEN MC.,6R1

main75742-AC020-G2i200206

DK. GREEN MC.,6S7

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-AC020-B0i199908-200206

GRAY,051 ,1C8 ,4Q2

main75745-AC020-B0i200206-200501

GRAY,051 ,1C8 ,4Q2 ,6M3

main75745-AC020-C0i199908-200206

BLACK,202 ,6R1

main75745-AC020-C0i200206-200501

BLACK,202 ,3Q7 ,6S7

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-AC020-B0i199908-200206

GRAY,051 ,1C8 ,4Q2

main75746-AC020-B0i200206-200501

GRAY,051 ,1C8 ,4Q2 ,6M3

main75746-AC020-C0i200206-200501

BLACK,202 ,3Q7 ,6S7

main75746-AC020-C0i199908-200206

BLACK,202 ,6R1

75851MOULDING, ROCKER PANEL, RH

main75851-AC020-A0i199908-200501

SU.WHITE PM,051

main75851-AC020-B0i199908-200501

SLVER ME.,1C8

main75851-AC020-C0i199908-200501

BLACK,202

main75851-AC020-D1i200206-200501

DK RED MC,3Q7

main75851-AC020-E0i199908-200501

BEIGE M.M.,4Q2

main75851-AC020-G0i200206-200501

GR.GREEN ME.,6M3

main75851-AC020-G1i199908-200206

GREEN MC.,6R1

main75851-AC020-G2i200206-200501

DK. GREEN MC.,6S7

75852MOULDING, ROCKER PANEL, LH

main75852-AC010-A0i199908-200501

SU.WHITE PM,051

main75852-AC010-B0i199908-200501

SLVER ME.,1C8

main75852-AC010-C0i199908-200501

BLACK,202

main75852-AC010-D1i200206-200501

DK RED MC,3Q7

main75852-AC010-E0i199908-200501

BEIGE M.M.,4Q2

main75852-AC010-G0i200206-200501

GR.GREEN ME.,6M3

main75852-AC010-G1i199908-200206

GREEN MC.,6R1

main75852-AC010-G2i200206-200501

DK. GREEN MC.,6S7

75867ACLIP, ROCKER PANEL MOULDING

main75867-30110i199908-200206

6777112070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12070

9008426008

main90084-26008

90162A0001

main90162-A0001

9016460024

main90164-60024

90168A0003

main90168-A0003

9018904059

main90189-04059

9018906006

main90189-06006

9026903064

main90269-03064

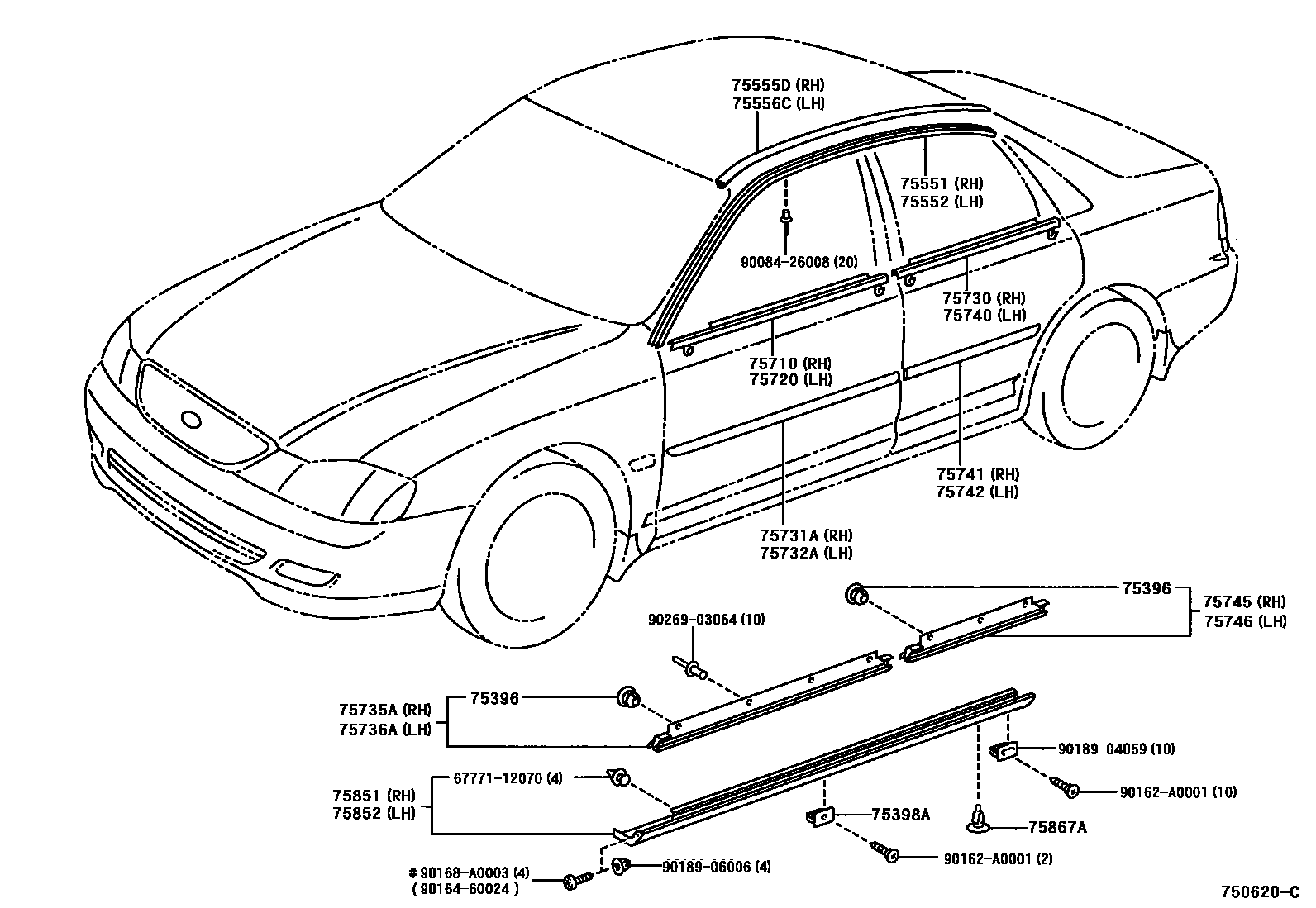

29 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota AVALON

This section contains 29 genuine Toyota parts for the SIDE MOULDING system of the Toyota AVALON. Key components include: CLIP, OUTSIDE MOULDING, NO.2, CLIP, OUTSIDE MOULDING, NO.5, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH.
