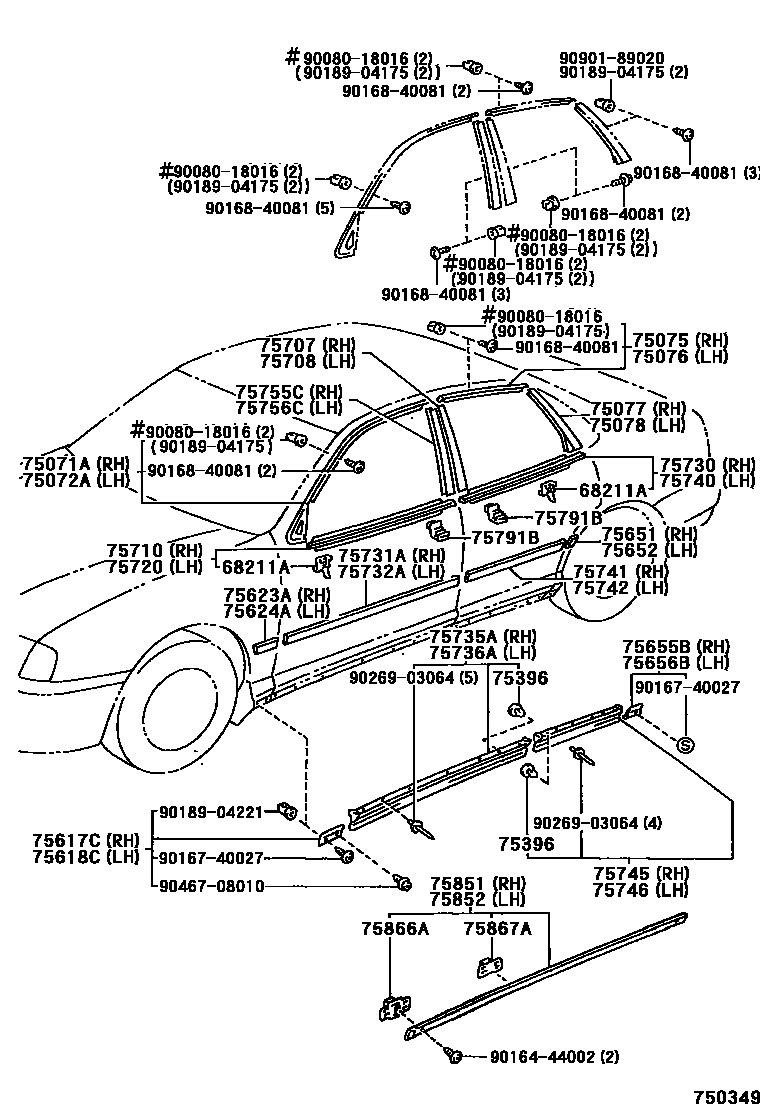

Toyota AVALON — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75396CLIP, OUTSIDE MOULDING, NO.2
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75651MOULDING, QUARTER, OUTSIDE RH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
75652MOULDING, QUARTER, OUTSIDE LH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
75655BMOULDING, QUARTER PANEL, LOWER FRONT RH
75656BMOULDING, QUARTER PANEL, LOWER FRONT LH
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75732AMOULDING, FRONT DOOR, OUTSIDE LH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75742MOULDING, REAR DOOR, OUTSIDE LH
SU.WHITE PM,051
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
LT.BEIGE ME.OP.,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
SUPER WHITE 2,040
SU.WHITE PM,051
BLACK,202
MAGENTA MC,3L3
BEIGE ME,4M9
GR.GREEN ME,6M3
DK.TEAL GREEN MC.,751
DK.BLUE M.M.,8K0
DK.BLUE M.M.,8L3
DARK TAUPE MCOP,927
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75791BCLIP, BELT MOULDING SIDE
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75866ARETAINER, ROCKER PANEL MOULDING
75867ACLIP, ROCKER PANEL MOULDING
9008018016
main90080-18016
9016444002
main90164-44002
9016740027
main90167-40027
9016840081
main90168-40081
9018904175
main90189-04175
9018904221
main90189-04221
9026903064
main90269-03064
9046708010
main90467-08010
9090189020
main90901-89020
46 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota AVALON
This section contains 46 genuine Toyota parts for the SIDE MOULDING system of the Toyota AVALON. Key components include: CLIP, DOOR BELT MOULDING, MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH, MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH, MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH, MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH.
