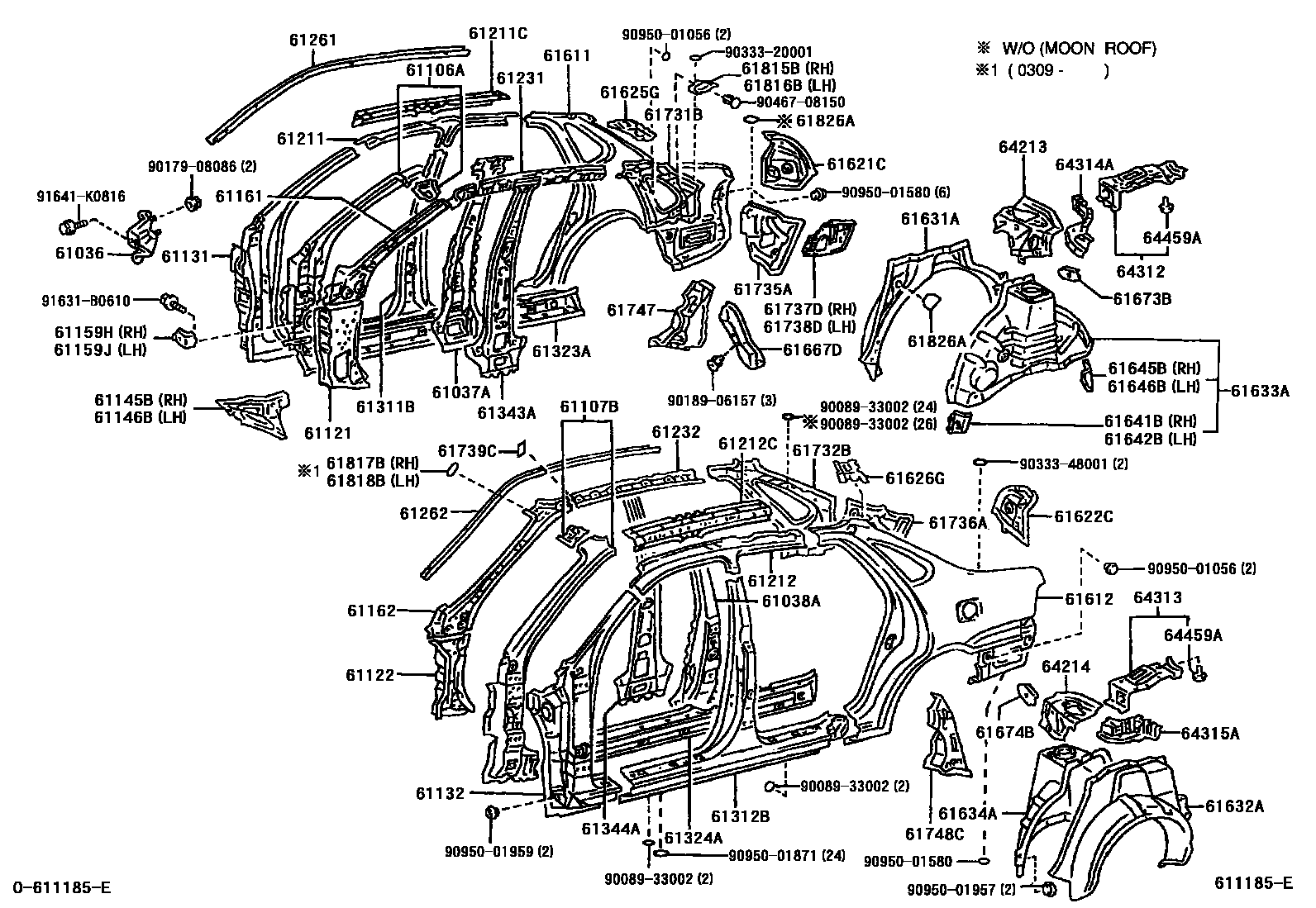

Toyota AVALON — SIDE MEMBER
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61121PANEL, COWL SIDE, OUTER RH
61122PANEL, COWL SIDE, OUTER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61159HBRACKET, COWL SIDE PANEL TO FENDER APRON, RH
61159JBRACKET, COWL SIDE PANEL TO FENDER APRON, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61211CRAIL, ROOF SIDE, RH
61212RAIL, ROOF SIDE, OUTER LH
61212CRAIL, ROOF SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641BGUSSET, QUARTER WHEEL HOUSE, RH
61642BGUSSET, QUARTER WHEEL HOUSE, LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61667DSEAL, QUARTER PANEL
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61739CSEAL, ROOF SIDE INNER PLATE
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61815BCOVER, ROOF SIDE, INNER UPPER RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61826APLATE, NOISE CONTROL, NO.3
W/O(MOON ROOF)
64213EXTENSION, PACKAGE TRAY STRAINER, RH
64214EXTENSION, PACKAGE TRAY STRAINER, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
64459ACUSHION, LUGGAGE COMPARTMENT DOOR
9008933002
main90089-33002
9017908086
main90179-08086
9018906157
main90189-06157
9033320001
main90333-20001
9033348001
main90333-48001
9046708150
main90467-08150
9095001056
main90950-01056
9095001580
main90950-01580
9095001871
main90950-01871
9095001957
main90950-01957
9095001959
main90950-01959
91631B0610
main91631-B0610
91641K0816
main91641-K0816
80 parts on this diagram · 1 diagram in section
