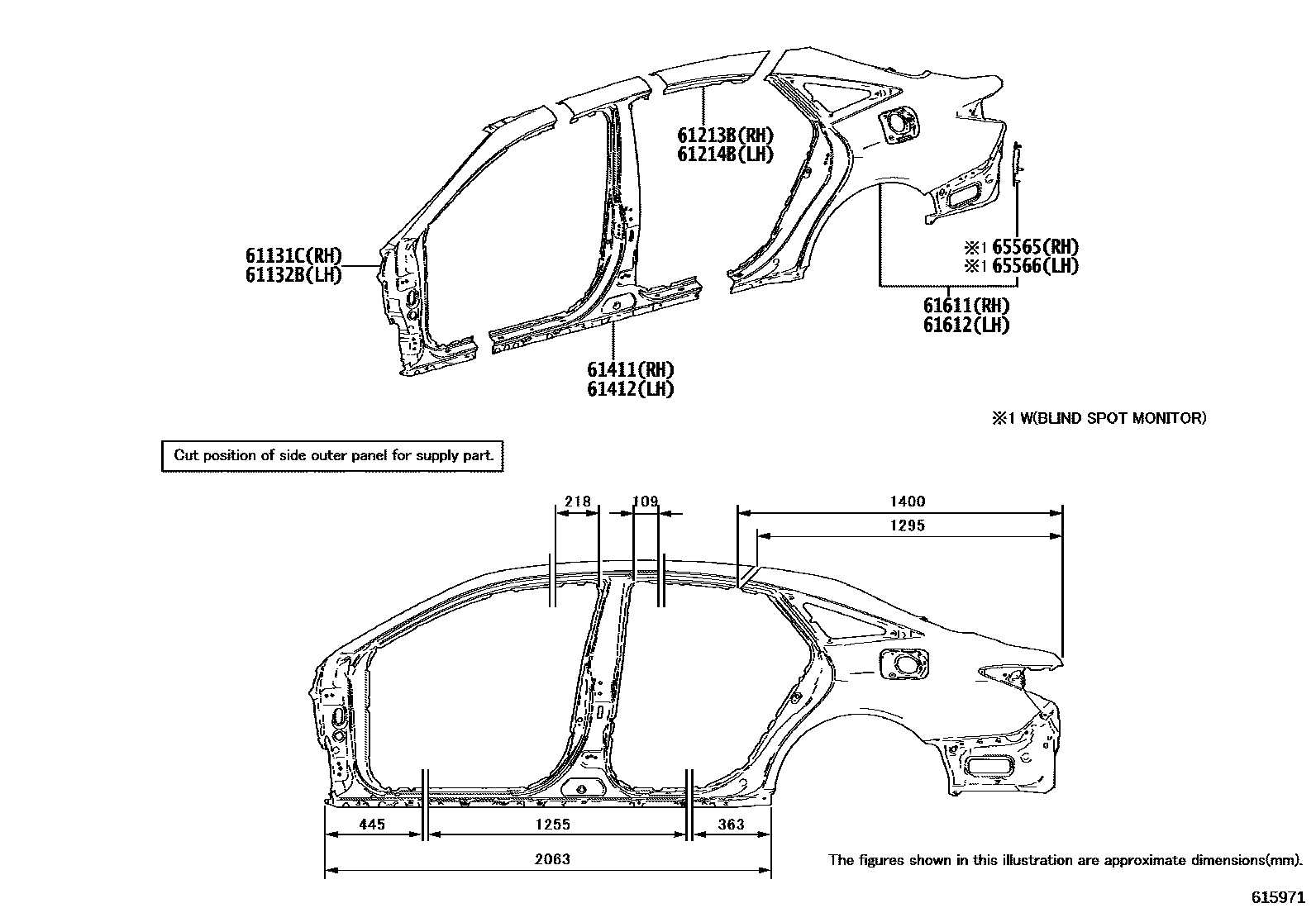

Toyota AVALON — SIDE MEMBER

61131CPILLAR, FRONT BODY, OUTER RH

main61131-07040i201806-202008

61132BPILLAR, FRONT BODY, OUTER LH

main61132-07040i201806-202008

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-07050i201806-202008

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-07050i201806-202008

61411PANEL, ROCKER, OUTER RH

main61311-07020i201806-202008

61412PANEL, ROCKER, OUTER LH

main61312-07020i201806-202008

61611PANEL, QUARTER, RH

main61601-07120i201806-202008

main61601-07130i201806-202008

ACTIVE SAFETY PACKAGE-WITHOUT

61612PANEL, QUARTER, LH

main61602-07100i201806-202008

main61602-07110i201806-202008

ACTIVE SAFETY PACKAGE-WITHOUT

65565PATCH, SIDE PANEL REAR END, RH

main65565-06110i201806-202008

65566PATCH, SIDE PANEL REAR END, LH

main65565-06110i201806-202008

10 parts on this diagram · 5 diagrams in section

SIDE MEMBER for Toyota AVALON

This section contains 67 genuine Toyota parts for the SIDE MEMBER system of the Toyota AVALON. Key components include: BRACKET, FRONT SIDE PANEL, RH, BRACKET, FRONT SIDE PANEL, LH, PROTECTOR, QUARTER PANEL, REAR RH, PROTECTOR, QUARTER PANEL, REAR LH, PILLAR SUB-ASSY, NO.3 INNER, RH.
