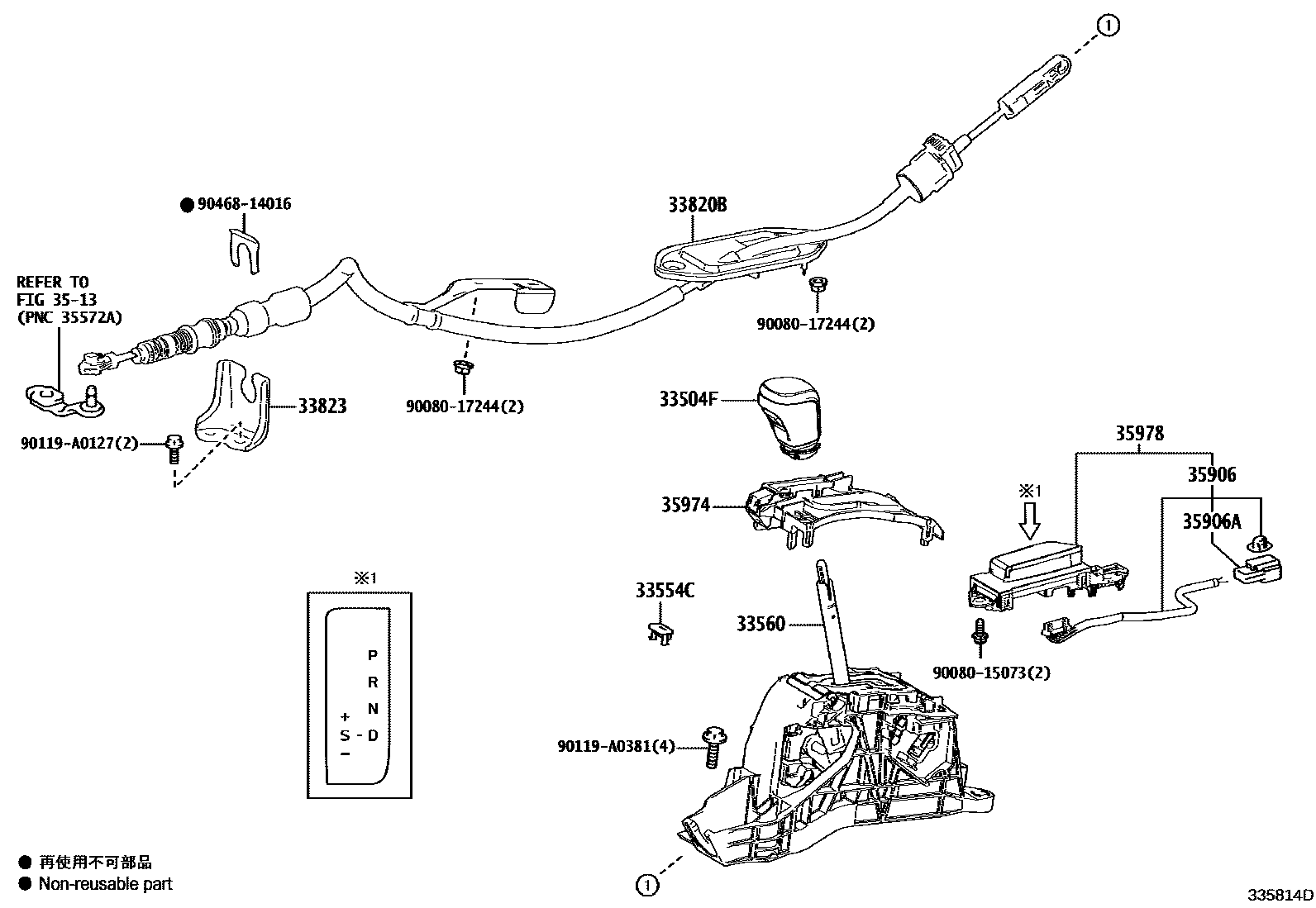

Toyota AVALON — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06310-C0i201806-201908

BLACK,TRIM1#,4#

main33504-06440-C0i201908-202008

BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#

main33504-07040-C0i201806-201908

BLACK,TRIM1#,2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-07070-B0i201806-202008

NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM1#,43

main33554-07070-C0i202008

BLACK,TRIM2#; BLACK,TRIM2#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06400i201806-202008

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06520i201806-202008

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06040i201806-202008

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-07070i201806-202008

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367i201806-202008

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06190i201806-202008

35978INDICATOR, SHIFT POSITION

main35978-07030i201806-202008

9008015073

main90080-15073

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0381

main90119-A0381

9046814016

main90468-14016

15 parts on this diagram · 1 diagram in section

SHIFT LEVER & RETAINER for Toyota AVALON

This section contains 15 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota AVALON. Key components include: KNOB SUB-ASSY, SHIFT LEVER, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL, CABLE ASSY, TRANSMISSION CONTROL, BRACKET, TRANSMISSION CONTROL CABLE, NO.1.
