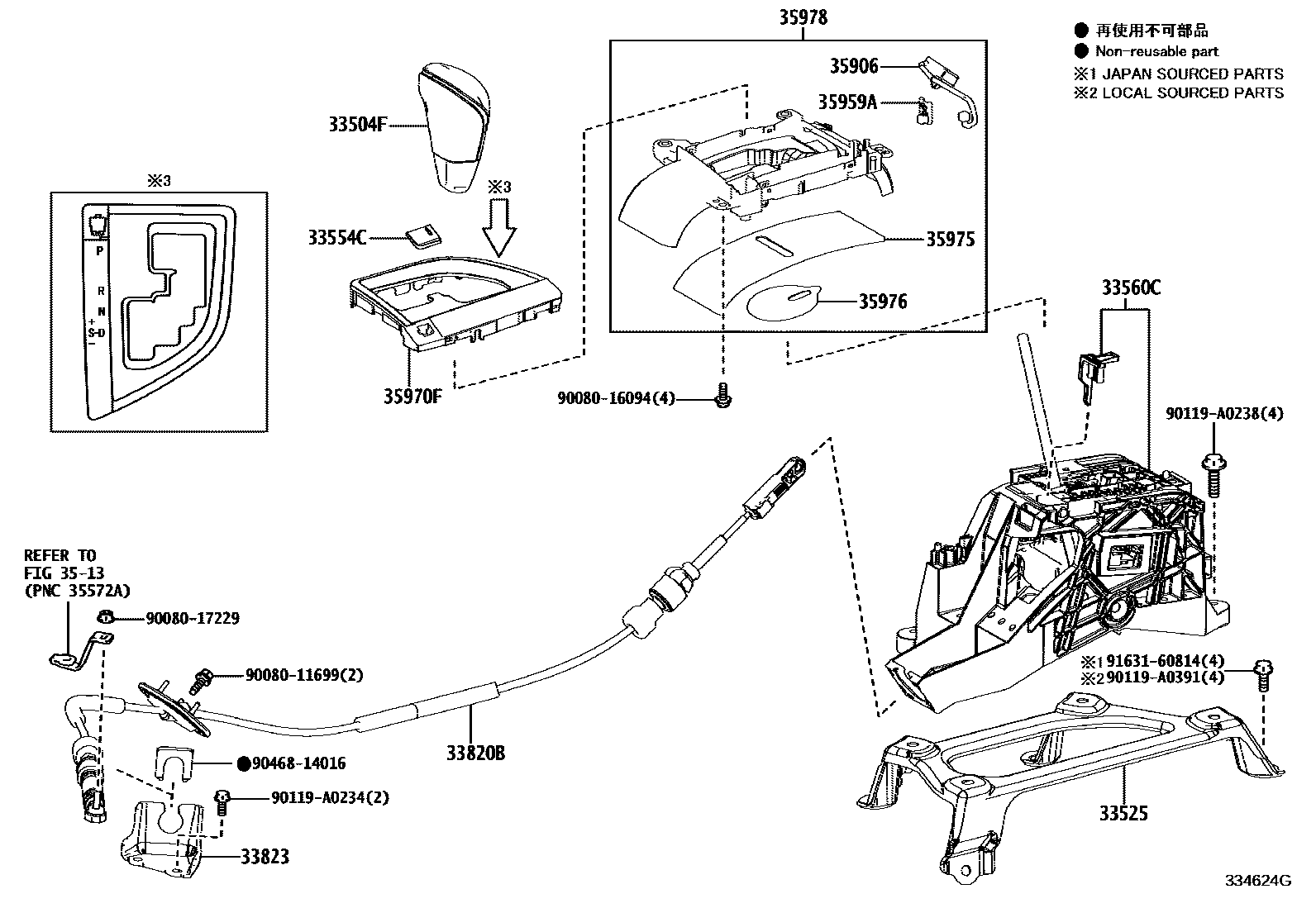

Toyota AVALON — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-07020-C0i201210-201510

BLACK,TRIM0#,1#,2#

main33504-07030-C0i201210-201510

BLACK,TRIM0#,1#,2#

33525SUPPORT, SHIFT LEVER

main58123-06010i201210-201510

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-07060i201210-201510

33560CLEVER ASSY, SHIFT, LOWER

main33560-07010i201210-201510

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-07110i201210-201510

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06010i201210-201510

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-07060i201210-201510

35959ALED, POSITION INDICATOR

main35959-09005i201404-201510

35970FHOUSING ASSY, POSITION INDICATOR

main35970-07030i201210-201510

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-06100i201210-201510

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-06110i201210-201510

35978INDICATOR, SHIFT POSITION

main35978-07010i201210-201510

9008011699

main90080-11699

9008016094

main90080-16094

9008017229

main90080-17229

90119A0234

main90119-A0234

90119A0238

main90119-A0238

90119A0391

main90119-A0391

9046814016

main90468-14016

9163160814

main91631-60814

21 parts on this diagram · 1 diagram in section

SHIFT LEVER & RETAINER for Toyota AVALON

This section contains 21 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota AVALON. Key components include: KNOB SUB-ASSY, SHIFT LEVER, SUPPORT, SHIFT LEVER, COVER, SHIFT LOCK RELEASE BUTTON, LEVER ASSY, SHIFT, LOWER, CABLE ASSY, TRANSMISSION CONTROL.
