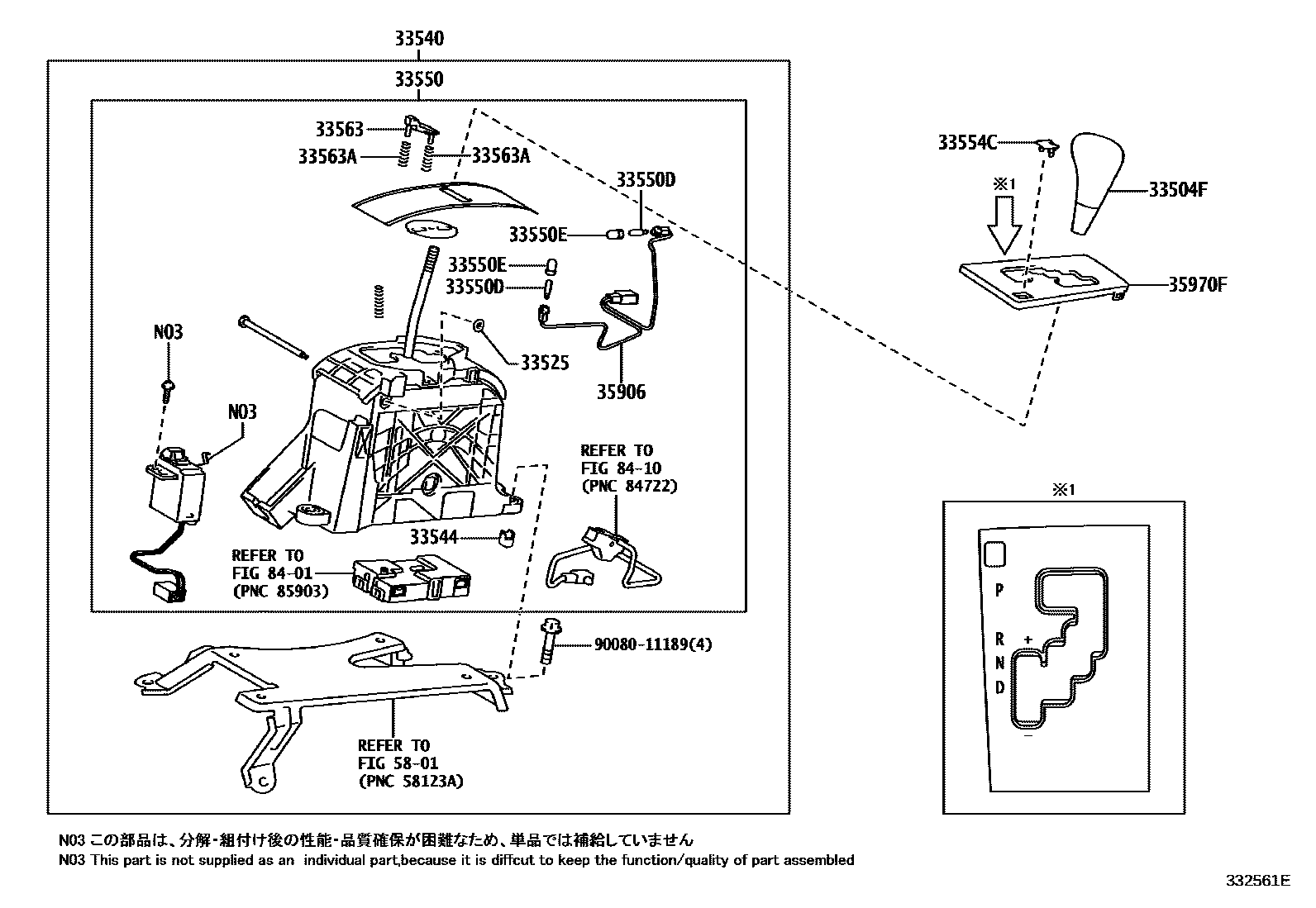

Toyota AVALON — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
IVORY,TRIM0#
GRAY,TRIM1#
BLACK,TRIM0#,1#
IVORY,TRIM0#
LT.GRAY,TRIM1#
SANDAL / DK WOOD,TRIM18
BLACK / MED YELLOW BRN,TRIM0#,1#
BLACK / DRK RED BRN,TRIM2#
IVORY,TRIM0#
GRAY,TRIM1#
IVORY & LT.BROWN,TRIM0#
LT.GRAY & LT.BROWN,TRIM1#
33525SUPPORT, SHIFT LEVER
33540PLATE ASSY, SHIFT LEVER
33544INSERT, SHIFT LEVER, NO.1
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
35970FHOUSING ASSY, POSITION INDICATOR
5801
8401
8410
9008011189
main90080-11189
16 parts on this diagram · 4 diagrams in section
