Toyota AVALON — RADIATOR GRILLE

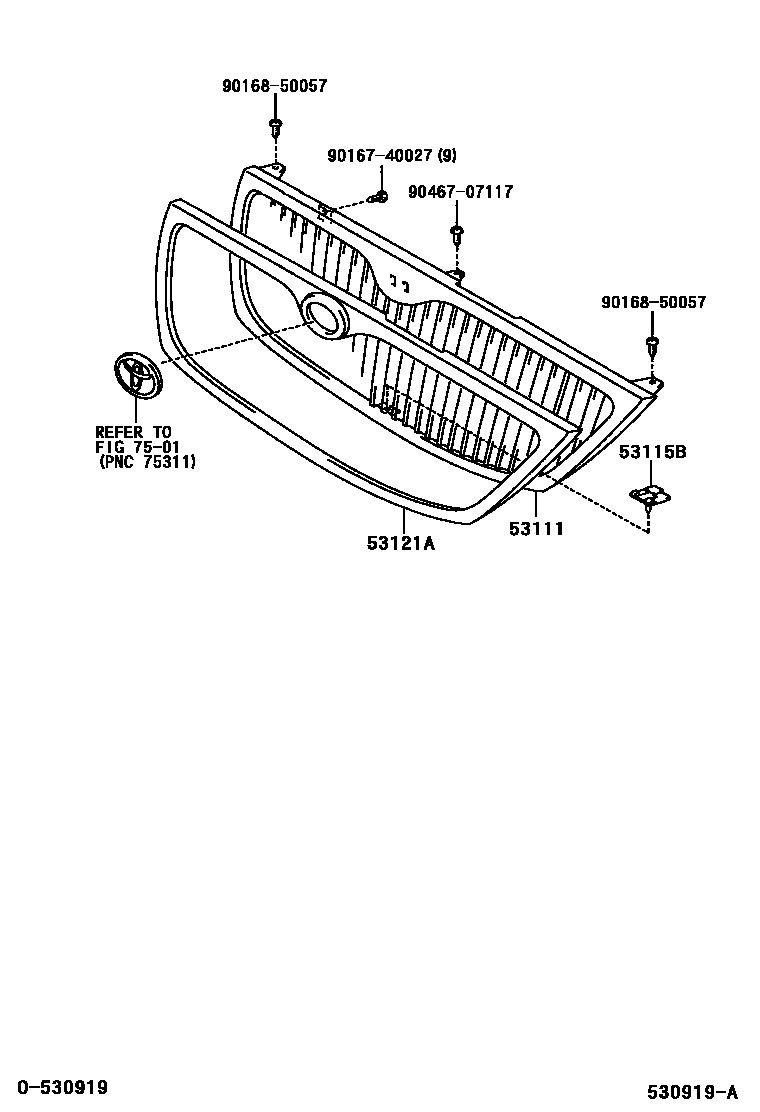

Parts diagram

53111GRILLE, RADIATOR

main53100-YF040i200309

main53100-YF050i200309

main53111-YF010-P0i200004-200107

DIAMOND SILVER,2GH ,3N6 ,6P3 ,6P8 ,8L3 ,8N3; DIAMOND SILVER,3N6 ,6P3 ,6P8 ,8L3 ,8N3; DIAMOND SILVER,TRIM1#,4#&3N6 ,3N9 ,6P3 ,6P8 ,8L3 ,8N3

main53111-YF010-P1i200108-200208

ASH SILVER,061 ,173 ,2GN ,2HS ,4N5 ,6P7

53115BBRACKET, RADIATOR GRILLE

main53115-16010i200004-200309

53121AMOULDING, RADIATOR GRILLE

main53121-YF030i200004-200209

W(CHROME PLATED)

main53121-YF900i200004-200309

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016740027

main90167-40027

9016850057

main90168-50057

9046707117

main90467-07117

7 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota AVALON

This section contains 10 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota AVALON. Key components include: HOOD & FRONT FENDER, GRILLE, RADIATOR, BRACKET, RADIATOR GRILLE, MOULDING, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
