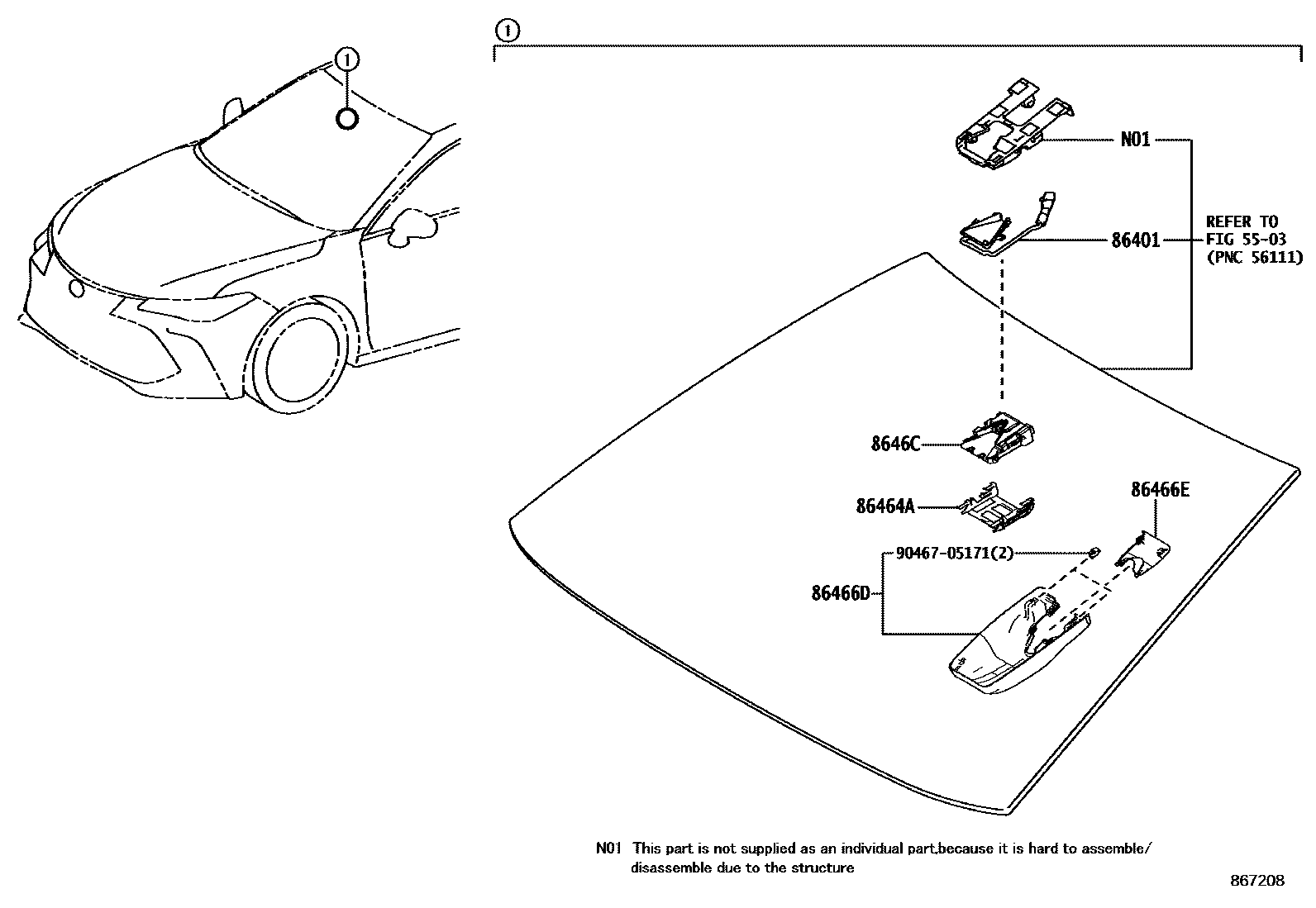

Toyota AVALON — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-41010iGSX50201806-202008

main86401-47040iGSX50202108

86464ALATCH, FORWARD RECOGNITION

main86464-08010iGSX50202108

main86464-48011iGSX50202008-202108

ACTIVE SAFETY PACKAGE-WITHOUT

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-41030iGSX50201806-202008

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-41040iGSX50201806-202008

8646CCAMERA, FORWARD RECOGNITION

main8646C-07020iGSX50201806-202008

main8646C-07050iGSX50202108

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
