Toyota AVALON — PARTIAL ENGINE ASSEMBLY

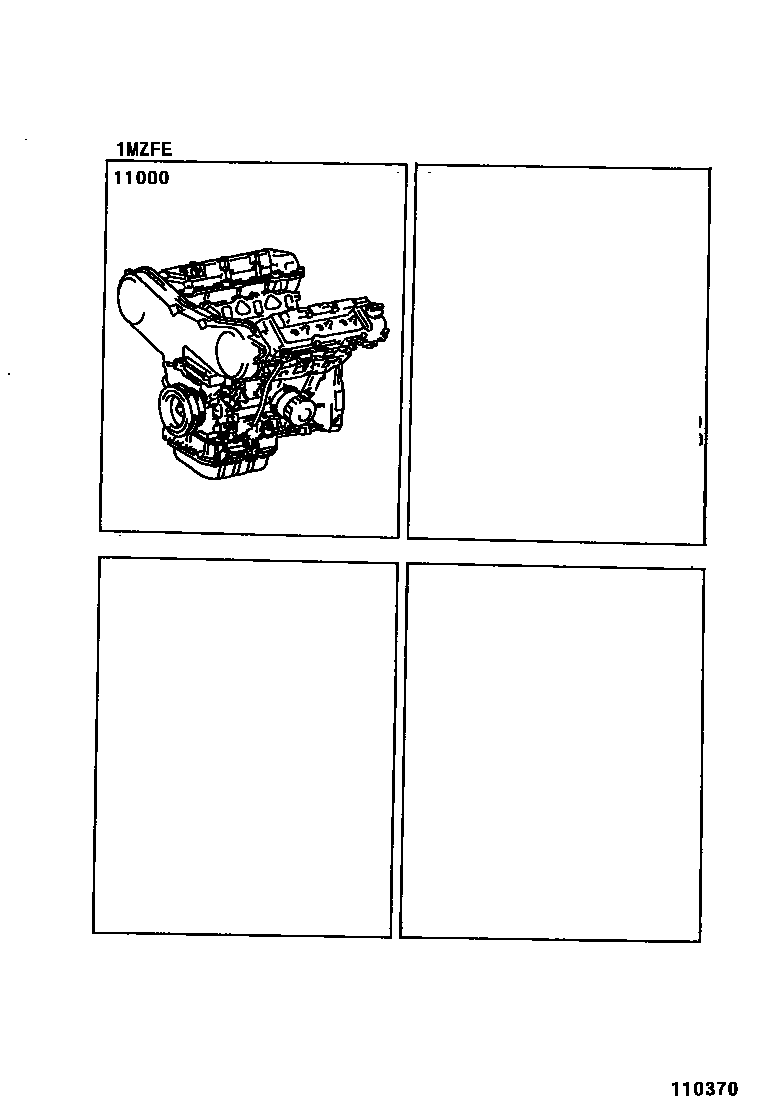

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0A190i200004-200101

(L)

main19000-0A191i200101-200303

(L)

main19000-0A192i200303-200306

(L)

main19000-20102i200309

main19000-20190i200004-200306

(J)

main19000-20470i200309

LPG SPEC

1 parts on this diagram · 1 diagram in section
