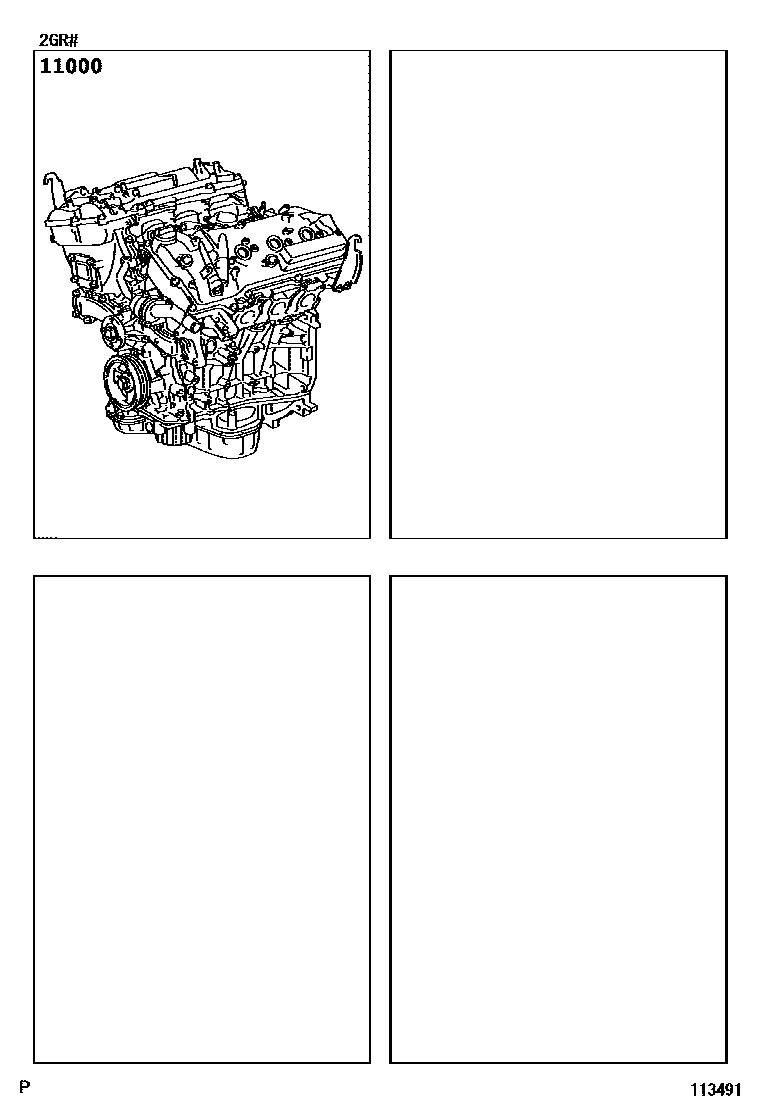

Toyota AVALON — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0P140i2GRFE..GSX30200501-200707

(L)

main19000-0P150i2GRFE..GSX30200707-200804

(L)

main19000-0P151i2GRFE..GSX30200804-201003

sub19000-31E40

main19000-31A00i2GRFE..GSX30200501-200707

(J)

1 parts on this diagram · 1 diagram in section
