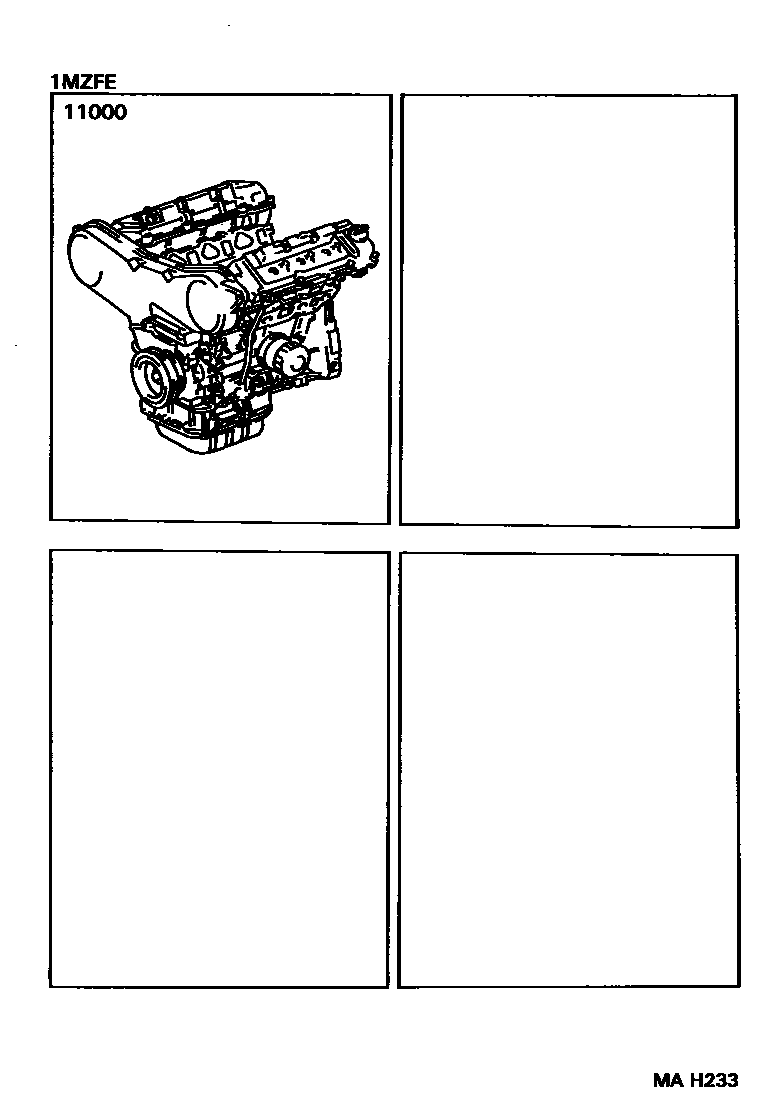

Toyota AVALON — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0A160i199908-200110

main19000-0A230i200110-200206

main19000-0A231i200206-200208

main19000-0A300i200301-200303

main19000-20102i200208-200301

1 parts on this diagram · 1 diagram in section
