Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

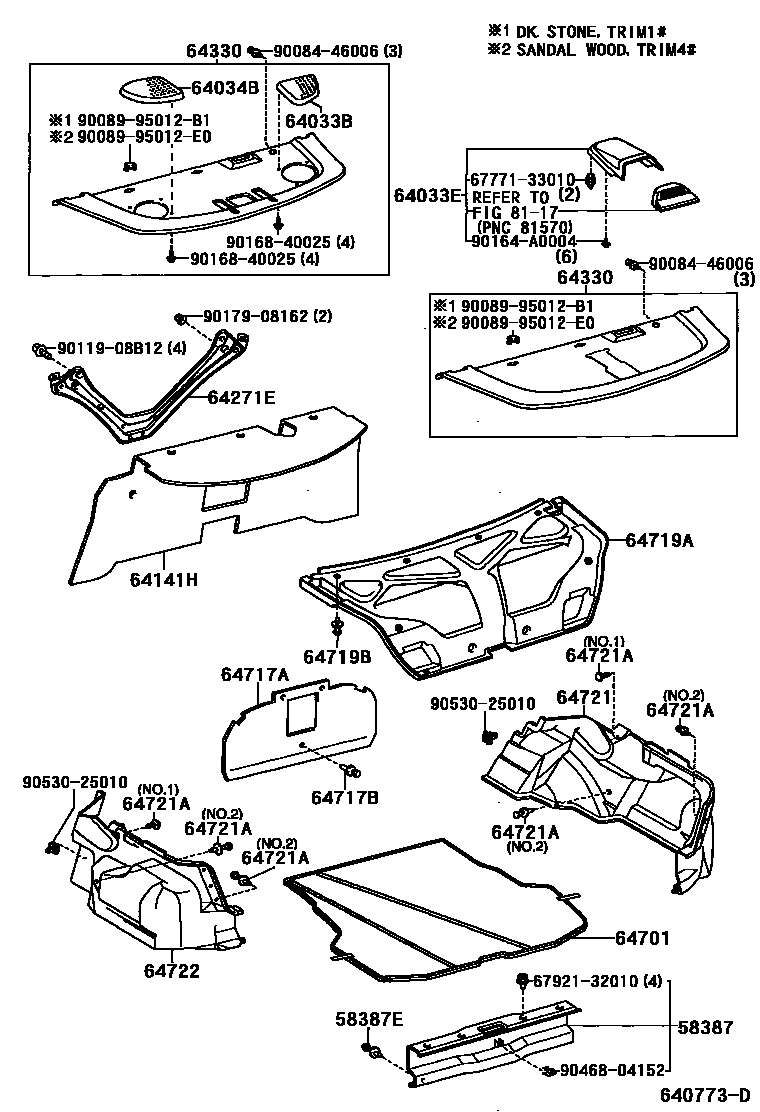

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-YF010i200004-200309
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-07138×2i200004-200112
main90467-08186-C0×2i200309-200506
BLACK,TRIM1#; BLACK,TRIM1#,4#
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64383-YF010-B0i200004-200309
DK. STONE,TRIM1#
main64383-YF010-E0i200004-200309
SANDAL WOOD,TRIM4#
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-AC011-B2i200309-200506
DK. STONE,TRIM1#
main64033-AC011-E7i200309-200506
SANDALWOOD,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64384-YF010-B0i200004-200309
DK. STONE,TRIM1#
main64384-YF010-E0i200004-200309
SANDAL WOOD,TRIM4#
64141HSILENCER, BACK PANEL, NO.1
main64141-41010i200309
64271EPANEL, ROOM PARTITION
main64241-07010i200309
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-YF010-B0i200309-200506
DARK STONE,TRIM1#; W(SPEAKER GRILLE),DARK STONE,TRIM1#
main64330-YF010-E0i200309-200506
SANDAL WOOD,TRIM4#; W(SPEAKER GRILLE),SANDAL WOOD,TRIM4#
main64330-YF030-B0i200004-200309
DARK STONE,TRIM1#
main64330-YF030-E0i200004-200309
SANDAL WOOD,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64701-YF010-C0i200004-200309
BLACK,TRIM1#,4#
main64701-YF020-C0i200309-200506
BLACK,TRIM1#,4#
main64701-YF030-C0i200309-200506
W(NAVIGATION SYSTEM),BLACK,TRIM1#; W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-YF010-C0i200004-200309
BLACK,TRIM1#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-08150×3i200004-200309
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-YF010-C0i200004-200309
BLACK,TRIM1#,4#
main64719-YF020-C0i200309-200506
BLACK,TRIM1#; BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-07168×16i200004-200112
main90467-08186-C0×16i200112-200309
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-YF010-C0i200309-200506
BLACK,TRIM1#; BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-C0×2i200004-200309
NO.1:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#
main90467-07168×8i200004-200112
NO.2:REFER TO ILLUSTRATION
main90467-08186-C0×8i200309-200506
NO.2:REFER TO ILLUSTRATION,BLACK,TRIM1#; NO.2:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#; W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#,NO.1 & NO.2; W(NAVIGATION SYSTEM),BLACK,TRIM1#,NO.1 & NO.2
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-YF010-C0i200004-200309
BLACK,TRIM1#,4#
main64722-YF020-C0i200309-200506
W(NAVIGATION SYSTEM),BLACK,TRIM1#; W(NAVIGATION SYSTEM),BLACK,TRIM1#,4#
8117CENTER STOP LAMP
→ Go to FIG 81-17
6777133010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33010
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9008446006
main90084-46006
9008995012B1
main90089-95012B1
9008995012E0
main90089-95012E0
9011908B12
main90119-08B12
90164A0004
main90164-A0004
9016840025
main90168-40025
9017908162
main90179-08162
9046804152
main90468-04152
9053025010
main90530-25010

28 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota AVALON

This section contains 28 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota AVALON. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, GRILLE SUB-ASSY, REAR SPEAKER, LH.
