Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

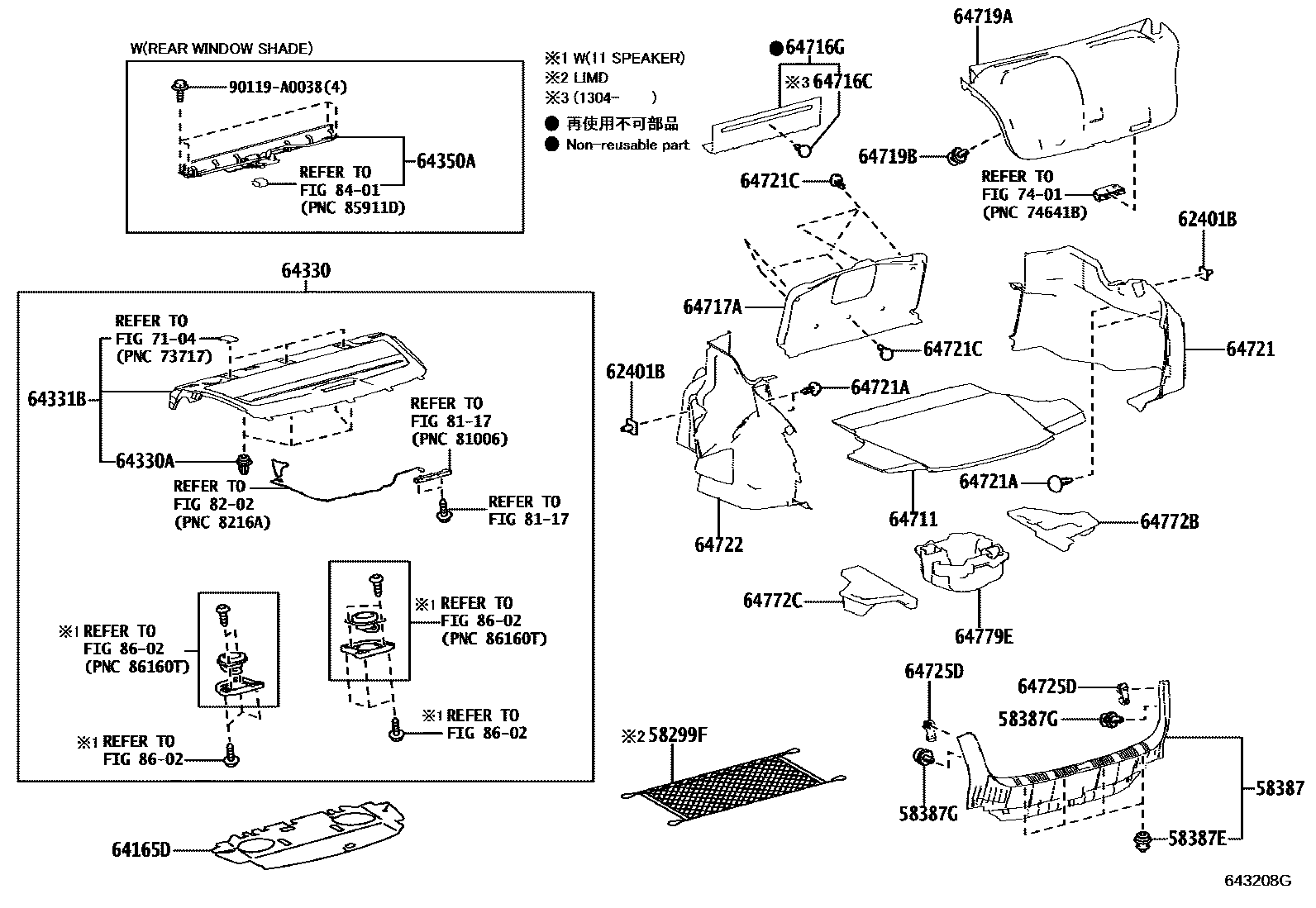

Parts diagram
58299FNET, BAGGAGE HOLDER
main58299-AA010i201210-201510
58387PLATE, REAR FLOOR FINISH
main58387-07010i201210-201510
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main62489-0E010×4i201210-201510
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
main90467-07201×2i201210-201510
62401BFASTENER, HOOK
main90530-25010×2i201510
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
main64165-07020i201210-201510
main64165-07030i201210-201510
SUN SHADE(REAR WINDOW)-WITH(POWER)
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-07020-A0i201410-201510
AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
main64330-07020-B0i201410-201510
AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
main64330-07020-C0i201410-201510
AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
main64330-07030-A0i201510
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
main64330-07030-B0i201210-201410
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
main64330-07030-C0i201210-201410
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
main64330-07040-A0i201510
SUN SHADE(REAR WINDOW)-WITH(POWER),FLAXEN,TRIM0#
main64330-07040-B0i201510
SUN SHADE(REAR WINDOW)-WITH(POWER),LT.GRAY,TRIM1#
main64330-07040-C0i201210-201510
SUN SHADE(REAR WINDOW)-WITH(POWER),BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-A0006×4i201510
64331BBOARD, PACKAGE TRAY TRIM, FRONT
main64330-07060-A0i201410-201510
AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
main64330-07060-B0supersedes 64330-07050-B0i201510
AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
main64330-07060-C0i201410-201510
AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
main64330-07070-A0i201210-201510
SUN SHADE(REAR WINDOW)-WITH(POWER),FLAXEN,TRIM0#
main64330-07070-B0i201210-201510
SUN SHADE(REAR WINDOW)-WITH(POWER),LT.GRAY,TRIM1#
main64330-07070-C0i201210-201510
SUN SHADE(REAR WINDOW)-WITH(POWER),BLACK,TRIM2#
main64330-07080-A0i201510
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,FLAXEN,TRIM0#
main64330-07080-B0i201510
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,LT.GRAY,TRIM1#
main64330-07080-C0i201410-201510
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER,BLACK,TRIM2#
64350ASHADE ASSY, REAR WINDOW
main64333-07040i201210-201408
SUN SHADE(REAR WINDOW)-WITH(POWER); SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER
main64333-07041i201409-201410
SUN SHADE(REAR WINDOW)-WITH(POWER)&AUDIO-AVN & 11SPEAKER
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-07030-C0i201210-201510
BLACK,TRIM0#,1#,2#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main71769-06010-C0i201304-201510
BLACK
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64713-07010-C0i201210-201303
BLACK,TRIM0#,1#,2#
main64713-07011-C0i201304-201510
BLACK,TRIM0#,1#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-07010-C0i201210-201304
BLACK,TRIM0#,1#,2#
main64717-07011-C0i201305-201510
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-07010-C0i201210-201510
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-A0037×13i201210-201510
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-07010-C0i201210-201510
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-A0002-C0×4i201210-201510
BLACK
main90467-A0002-C4×4i201706
BLACK
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-A0002-C0×6i201210-201510
BLACK
main90467-A0002-C4×6i201706
BLACK
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-07010-C0i201210-201510
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-0T010-C0×2i201210-201510
BLACK,TRIM0#,1#,2#
64772BPAD, SPARE WHEEL COVER
main64772-06150i201210-201510
64772CPAD, SPARE WHEEL COVER
main64773-06130i201210-201510
64779ETRAY, SPARE WHEEL COVER
main64779-07010i201210-201510
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
7401ARMREST & VISOR
→ Go to FIG 74-01
8117CENTER STOP LAMP
→ Go to FIG 81-17
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8602SPEAKER
→ Go to FIG 86-02
90119A0038
main90119-A0038

31 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota AVALON

This section contains 31 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota AVALON. Key components include: NET, BAGGAGE HOLDER, PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), FASTENER, HOOK.
