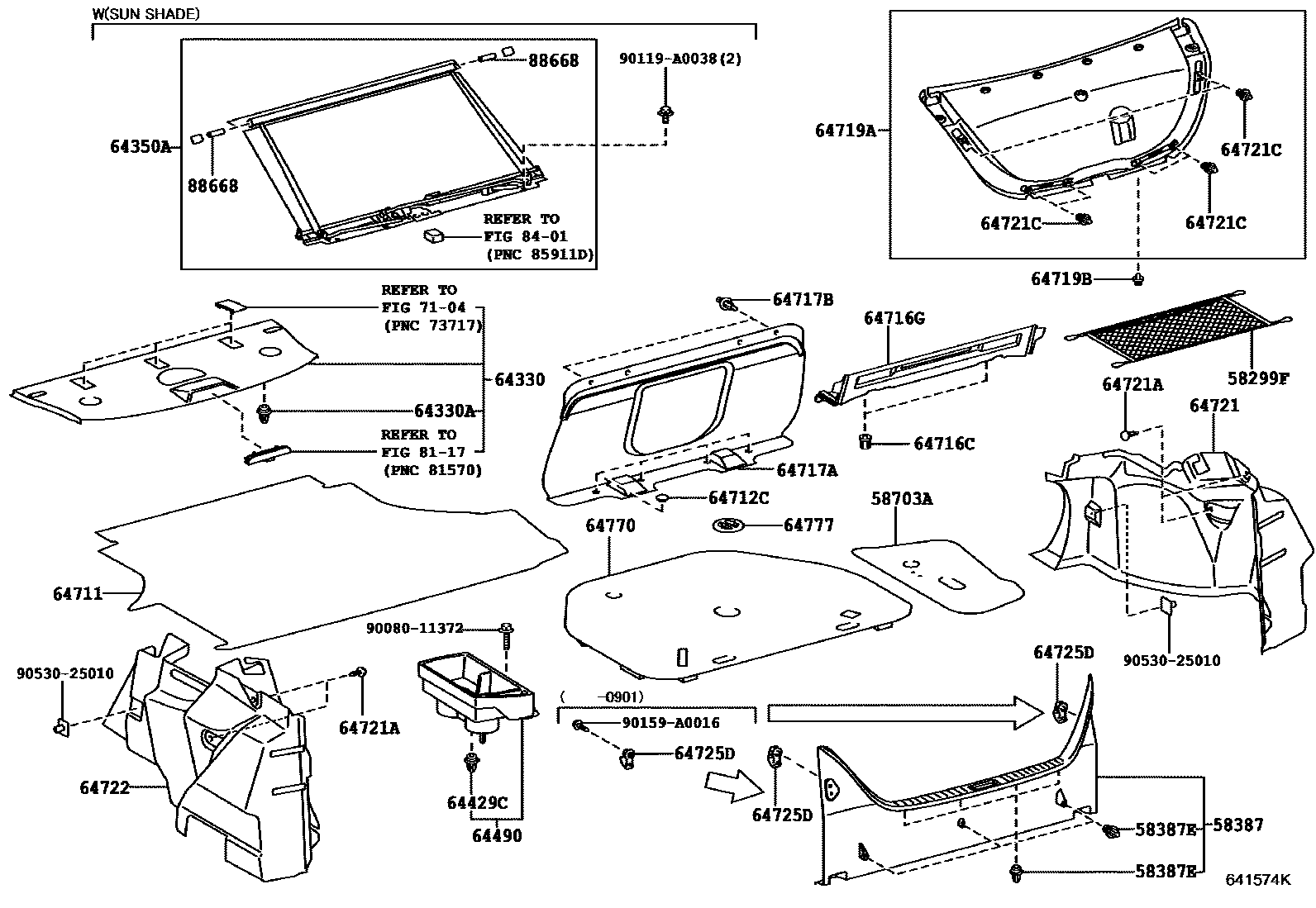

Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58299FNET, BAGGAGE HOLDER

main58299-AA010i201005

58387PLATE, REAR FLOOR FINISH

main58387-AC040i201005

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-A0006×7i200501-200707

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-07020i200707-201003

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AC080-A0i200501-200707

IVORY,TRIM0#

main64330-AC080-B0i200501-200707

LT.GRAY,TRIM1#; LT.GRAY,TRIM17

main64330-AC080-B1i200501-200707

GRAY,TRIM16

main64330-AC080-B2i200707-201003

DK.GRAY,TRIM18

main64330-AC090-B0supersedes 64330-AC080-B0i201005-201106

LT.GRAY,TRIM1#

main64330-AC090-C0i201005-201106

BLACK,TRIM2#

main64330-AC091-B0i201107-201210

LT.GRAY,TRIM1#

main64330-AC091-C0i201107-201210

BLACK,TRIM2#

main64330-AC070-A0supersedes 64330-AC081-A0i201005-201210

EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST,IVORY,TRIM0#

main64330-AC070-B0supersedes 64330-AC081-B0i201005-201210

EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST,LT.GRAY,TRIM1#

main64330-AC090-A0supersedes 64330-AC091-A0i200707-201003

SUN SHADE-WITH/PACKAGE TRAY (POWER),IVORY,TRIM0#

main64330-AC090-B2i200808-201003

SUN SHADE-WITH/PACKAGE TRAY (POWER),DK.GRAY,TRIM18

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-A0006×4i200707-201003

64350ASHADE ASSY, REAR WINDOW

main64333-AC012i201005-201009

main64333-AC010i200501-200707

SUN SHADE-WITH/PACKAGE TRAY (POWER)

main64333-AC011supersedes 64333-07030i200707-201003

SUN SHADE-WITH/PACKAGE TRAY (POWER)

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90467-A0006i200501-200707

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-AC030i201005

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AC110-C0i201005-201210

BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-09156-C0×4i200501-200707

BLACK

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-A0024×2i200501-200707

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64713-AC020-C0i200501-200707

BLACK,TRIM0#,1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-AC050-C0i201005-201210

BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07076-C0×2i200501-200506

BLACK

main90467-A0016-C0×2i201005-201210

BLACK

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AC050-C0i200501-200707

BLACK,TRIM0#,1#; BLACK,TRIM0#,16,17

main64719-AC051-C0i201005-201210

BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07201×7i200501-200707

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-AC040-C0i200501-200707

BLACK,TRIM0#,1#; BLACK,TRIM0#,16,17

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0×4i200501-200611

BLACK

main90467-08186-C0×4i200611-200707

BLACK

main90467-A0002-C0×4i201109-201210

BLACK

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-A0006×6i200501-200707

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-AC080-C0i200501-200707

BLACK,TRIM0#,1#; BLACK,TRIM0#,16,17

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-0T010-C0×2i201005-201210

BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#

main64725-AC010-C0×2i200707-200901

BLACK

64770COVER ASSY, SPARE WHEEL

main64770-07020i200501-200502

main64770-07030i200502-200707

64777CLAMP, SPARE WHEEL COVER

main64777-32030i200707-201003

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

8117CENTER STOP LAMP

→ Go to FIG 81-17

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88668SPACER, RUBBER

main88668-07010×2i201005-201010

9008011372

main90080-11372

90119A0038

main90119-A0038

90159A0016

main90159-A0016

9053025010

main90530-25010

32 parts on this diagram · 2 diagrams in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota AVALON

This section contains 32 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota AVALON. Key components include: NET, BAGGAGE HOLDER, PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, PANEL ASSY, PACKAGE TRAY TRIM.
