Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58299FNET, BAGGAGE HOLDER

main58299-AA010i200207-200501

main58299-AC010-C0i199908-200206

BLACK,TRIM0#,1#,4#

58387PLATE, REAR FLOOR FINISH

main58387-AC030-C0i199908-200206

BLACK,TRIM0#,1#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07138×2i199908-200206

main90467-07138-C0×2i200206-200501

BLACK,TRIM0#,1#,4#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-07010i199908-200206

64271EPANEL, ROOM PARTITION

main64241-AC020i199908-200206

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AC050-A0i199908-200206

IVORY,TRIM0#

main64330-AC050-B0i200206-200501

STONE,TRIM1#

main64330-AC050-E0i199908-200206

FAWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-AC010i199908-200206

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AC090-C0i199908-200206

BLACK,TRIM0#,1#,4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08150×2i199908-200206

64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH

main64713-AC010-C0i199908-200206

BLACK,TRIM0#,1#,4#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07138×4i199908-200206

main90467-07138-C0×4i200206-200501

BLACK,TRIM0#,1#,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-AC040-C0i199908-200206

BLACK,TRIM0#,1#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09156-C0×4i199908-200206

BLACK,TRIM0#,1#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AC030-C0i199908-200005

BLACK,TRIM0#,1#,4#

main64719-AC031-C0i200206-200501

BLACK,TRIM0#,1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07138×15i199908-200206

main90467-07201×15i200309-200501

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-AC030-C0i199908-200206

BLACK,TRIM0#,1#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0×4i199908-200206

BLACK,TRIM0#,1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90080-46294×2i199912-200206

main90467-07146×2i199908-199912

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-AC060-C0i199908-200206

BLACK,TRIM0#,1#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-AC010-C0×2i200206-200501

BLACK,TRIM0#,1#,4#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-AC010i199908-200206

main64745-AC020i200206-200501

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-AC010i199908-200206

main64746-AC020i200206-200501

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-AC010-C0i199908-200206

BLACK,TRIM0#,1#,4#

main64753-AC020i200206-200501

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-AC010-C0i199908-200206

BLACK,TRIM0#,1#,4#

main64754-AC020i200206-200501

64770COVER ASSY, SPARE WHEEL

main64770-06030i199908-200206

main64770-06031i200409-200501

64777CLAMP, SPARE WHEEL COVER

main64777-32030i199908-200206

main64777-33010i200206-200501

W(ALUMINUM WHEEL)

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

90119A0119

main90119-A0119

90159A0016

main90159-A0016

90182A0008

main90182-A0008

9046804152

main90468-04152

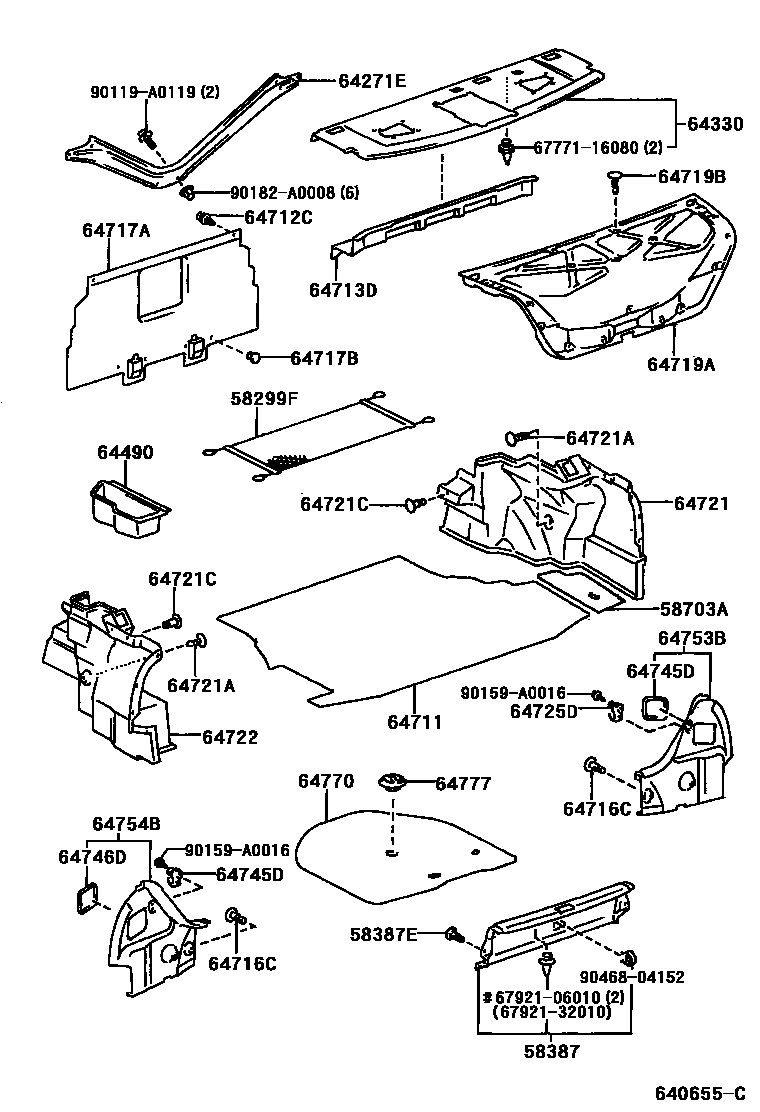

33 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota AVALON

This section contains 33 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota AVALON. Key components include: NET, BAGGAGE HOLDER, PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, PANEL, ROOM PARTITION.
