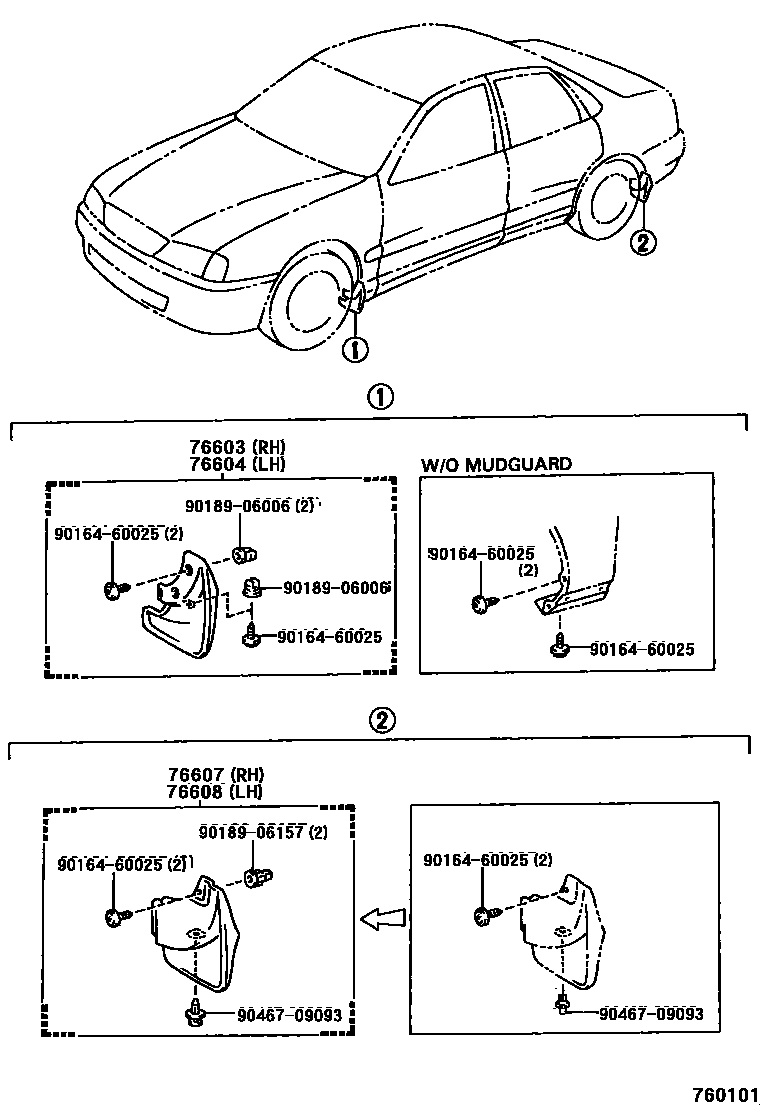

Toyota AVALON — MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-09100iMCX10199508

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-09100iMCX10199508

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-09070iMCX10199508-199709

main76625-09145iMCX10199709

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-09070iMCX10199508-199709

main76626-09145iMCX10199709

9016460025

main90164-60025

9018906006

main90189-06006

9018906157

main90189-06157

9046709093

main90467-09093

8 parts on this diagram · 1 diagram in section
