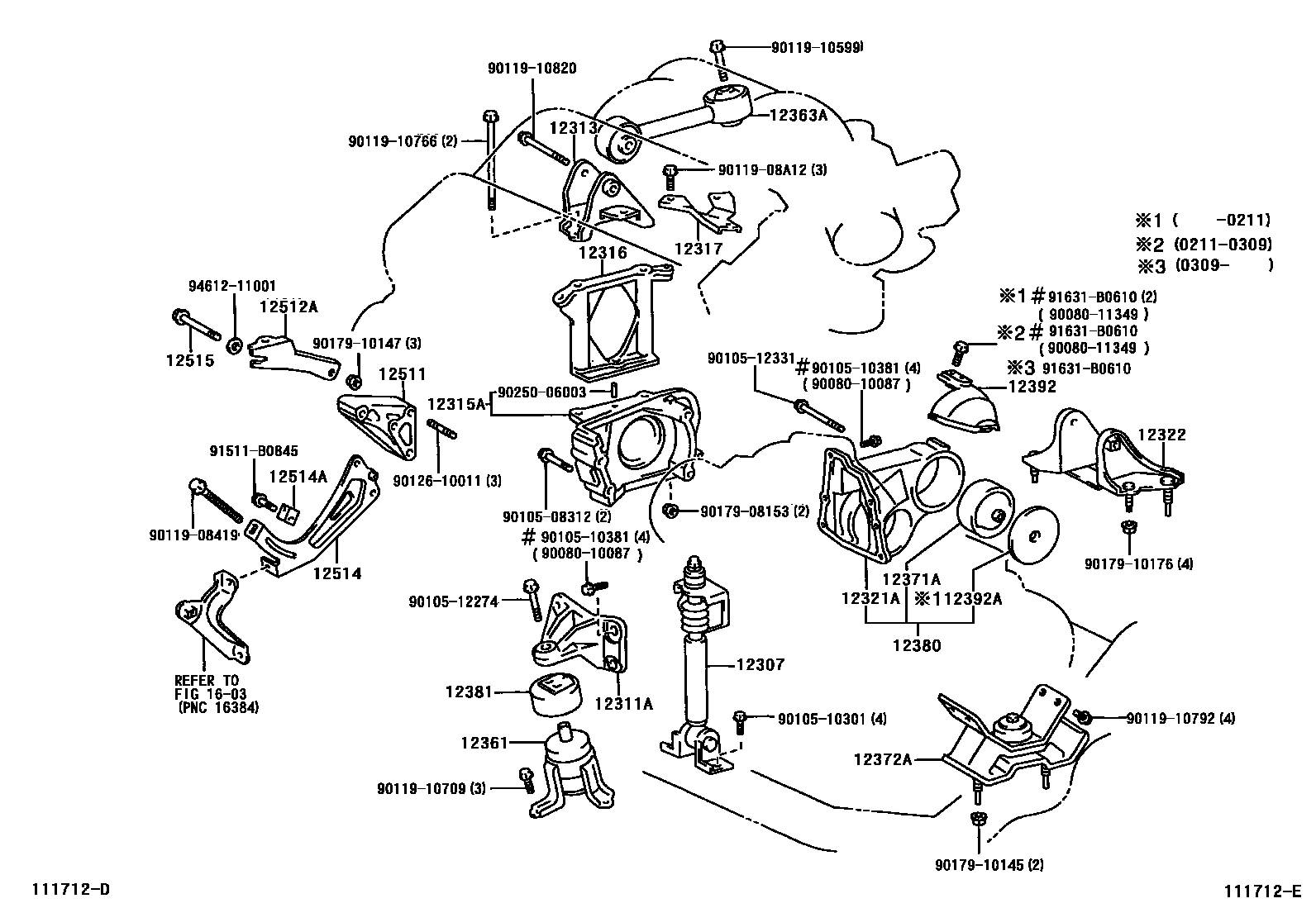

Toyota AVALON — MOUNTING

12307ABSORBER SUB-ASSY, ENGINE MOUNTING

main12307-20021i1MZFE..MCX10200309

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0A030i1MZFE..MCX10200004-200309

sub12311-20040

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0A020i1MZFE..MCX10200309

(L)

main12313-20020i1MZFE..MCX10200004-200309

(J)

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0A010i1MZFE..MCX10200012-200309

(L)

main12315-20020i1MZFE..MCX10200004-200012

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-62020i1MZFE..MCX10200309

12317STAY, ENGINE MOUNTING, RH

main12317-20010i1MZFE..MCX10200004-200309

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0A040i1MZFE..MCX10200211-200309

main12321-20020i1MZFE..MCX10200004-200211

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-0A020i1MZFE..MCX10200004-200211

main12322-0A030i1MZFE..MCX10200211-200305

main12322-20060i1MZFE..MCX10200305-200309

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-20090i1MZFE..MCX10200004-200309

12363AROD, ENGINE MOVING CONTROL

main12363-0A030i1MZFE..MCX10200309

(L)

main12363-20020i1MZFE..MCX10200309

(J)

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0A030i1MZFE..MCX10200211-200309

main12371-20030i1MZFE..MCX10200004-200211

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0A030i1MZFE..MCX10200004-200309

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-0A060i1MZFE..MCX10200309

sub12380-0A090

main12380-20030i1MZFE..MCX10200004-200211

12381STABILIZER, ENGINE MOUNTING

main12381-20010i1MZFE..MCX10200004-200309

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12392-20030i1MZFE..MCX10200309

main12392-20050i1MZFE..MCX10200303-200305

main12392-20060i1MZFE..MCX10200305-200309

main12392-62010i1MZFE..MCX10200004-200211

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12392-20010i1MZFE..MCX10200004-200211

12511BRACKET, ALTERNATOR, NO.1

main12511-20020i1MZFE..MCX10200004-200309

12512ABRACKET, ALTERNATOR, NO.2

main12512-20010i1MZFE..MCX10200004-200309

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-0A010i1MZFE..MCX10200012-200309

(L)

main12514-20010i1MZFE..MCX10200004-200012

12514ASLIDER, FAN BELT ADJUSTING

main16385-20010i1MZFE..MCX10200004-200309

12515BOLT, ALTERNATOR THROUGH

main12515-20010i1MZFE..MCX10200004-200309

1603

9008010087

main90080-10087

9008011349

main90080-11349

9010508312

main90105-08312

9010510301

main90105-10301

9010510381

main90105-10381

9010512274

main90105-12274

9010512331

main90105-12331

9011908419

main90119-08419

9011908A12

main90119-08A12

9011910599

main90119-10599

9011910709

main90119-10709

9011910766

main90119-10766

9011910792

main90119-10792

9011910820

main90119-10820

9012610011

main90126-10011

9017908153

main90179-08153

9017910145

main90179-10145

9017910147

main90179-10147

9017910176

main90179-10176

9025006003

main90250-06003

91511B0845

main91511-B0845

91631B0610

main91631-B0610

9461211001

main94612-11001

45 parts on this diagram · 1 diagram in section
