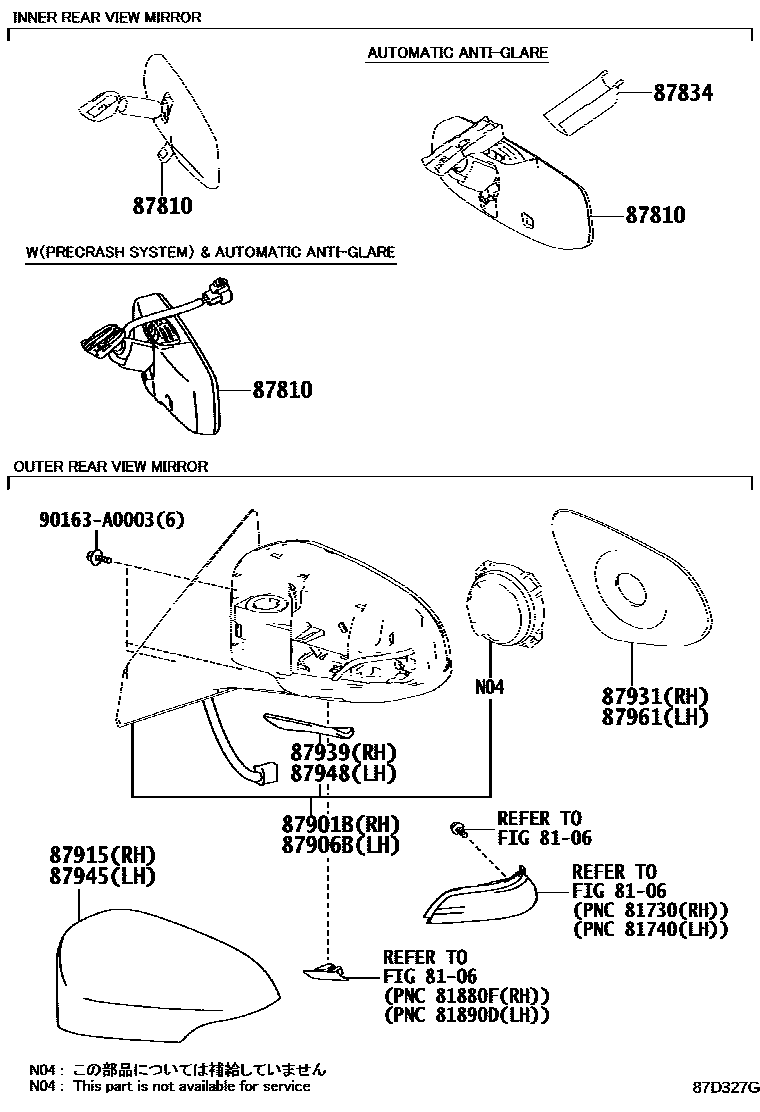

Toyota AVALON — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
CRUISE CONTROL-WITH(MICRO WAVE TYPE)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MOON ROOF-WITH(TILT & SLIDE)
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
BLACKISH RED MC.,3R0
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
DK.BLUE M.M.,8W6
DK.BLUE MC.,8S6
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
90163A0003
main90163-A0003
12 parts on this diagram · 1 diagram in section
