Toyota AVALON — MIRROR

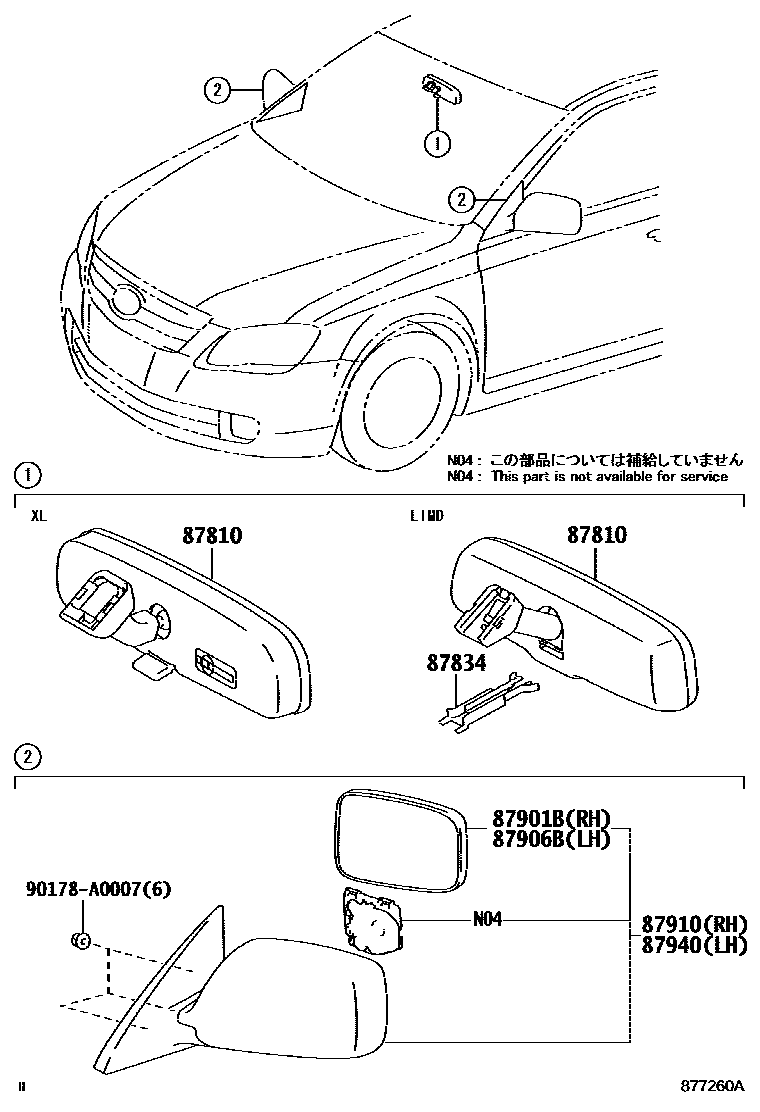

87810MIRROR ASSY, INNER REAR VIEW

main87810-07030supersedes 87810-07051i201005-201210

EMV & NAVIGATION SYSTEM-W(AVN) MIDDLE EAST

main87810-07052i201008-201112

main87810-07053i201112-201210

main87810-AC090i200501-200609

main87810-AC091i200610-200707

main87810-AD010i200501-200707

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-04010i201005

main87818-AC010i200501-200707

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87903-07040i201005-201210

main87903-07050i201005-201210

main87931-50500i200707-201003

main87931-AC070i200707-201003

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-07020i201005-201210

main87906-07030i201005-201210

main87961-50460i200501-200707

main87961-AC090i200501-200707

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-07090-A0i201005-201110

WHITE PEARL CS.,070

main87910-07090-B0i201005-201110

SILVER ME.,1F7

main87910-07090-B1i201005-201110

GRAY ME.,1G3

main87910-07090-C0i201005-201110

BLACK,202

main87910-07090-D0i201005-201110

BLACKISH RED MC.,3R0

main87910-07090-E0i201005-201110

BEIGE ME.,4T8

main87910-07090-E1i201005-201110

DK.BROWN ME.,4U5

main87910-07090-G0i201005-201110

OLIVE M.M.,6T7

main87910-07090-J0i201005-201110

BLUE ME.,8N0

main87910-07091-A0i201111-201203

WHITE PEARL CS.,070

main87910-07091-B0i201111-201203

SILVER ME.,1F7

main87910-07091-B1i201111-201203

GRAY ME.,1G3

main87910-07091-C0i201111-201203

BLACK,202

main87910-07091-D0i201111-201203

BLACKISH RED MC.,3R0

main87910-07091-E0i201111-201203

BEIGE ME.,4T8

main87910-07091-E1i201111-201203

DK.BROWN ME.,4U5

main87910-07091-G0i201111-201203

OLIVE M.M.,6T7

main87910-07091-J0i201111-201203

BLUE ME.,8N0

main87910-07092-A0i201204-201210

WHITE PEARL CS.,070

main87910-07092-B0i201204-201210

SILVER ME.,1F7

main87910-07092-B1i201204-201210

GRAY ME.,1G3

main87910-07092-C0i201204-201210

BLACK,202

main87910-07092-D0i201204-201210

BLACKISH RED MC.,3R0

main87910-07092-E0i201204-201210

BEIGE ME.,4T8

main87910-07092-E1i201204-201210

DK.BROWN ME.,4U5

main87910-07092-G0i201204-201210

OLIVE M.M.,6T7

main87910-07092-J0i201204-201210

BLUE ME.,8N0

main87910-07100-A0i201005-201110

WHITE PEARL CS.,070

main87910-07100-B0i201005-201110

SILVER ME.,1F7

main87910-07100-B1i201005-201110

GRAY ME.,1G3

main87910-07100-C0i201005-201110

BLACK,202

main87910-07100-D0i201005-201110

BLACKISH RED MC.,3R0

main87910-07100-E0i201005-201110

BEIGE ME.,4T8

main87910-07100-E1i201005-201110

DK.BROWN ME.,4U5

main87910-07100-G0i201005-201110

OLIVE M.M.,6T7

main87910-07100-J0i201005-201110

BLUE ME.,8N0

main87910-07101-A0i201111-201203

WHITE PEARL CS.,070

main87910-07101-B0i201111-201203

SILVER ME.,1F7

main87910-07101-B1i201111-201203

GRAY ME.,1G3

main87910-07101-C0i201111-201203

BLACK,202

main87910-07101-D0i201111-201203

BLACKISH RED MC.,3R0

main87910-07101-E0i201111-201203

BEIGE ME.,4T8

main87910-07101-E1i201111-201203

DK.BROWN ME.,4U5

main87910-07101-G0i201111-201203

OLIVE M.M.,6T7

main87910-07101-J0i201111-201203

BLUE ME.,8N0

main87910-07102-A0i201204-201210

WHITE PEARL CS.,070

main87910-07102-B0i201204-201210

SILVER ME.,1F7

main87910-07102-B1i201204-201210

GRAY ME.,1G3

main87910-07102-C0i201204-201210

BLACK,202

main87910-07102-D0i201204-201210

BLACKISH RED MC.,3R0

main87910-07102-E0i201204-201210

BEIGE ME.,4T8

main87910-07102-E1i201204-201210

DK.BROWN ME.,4U5

main87910-07102-G0i201204-201210

OLIVE M.M.,6T7

main87910-07102-J0i201204-201210

BLUE ME.,8N0

main87910-AC070-A0i200501-200707

WHITE PEARL CS.,070

main87910-AC070-B0i200501-200707

SILVER ME.,1D4

main87910-AC070-B1i200501-200707

GRAY M.M.,1E3

main87910-AC070-B2i200707-201003

SILVER ME.,1F7

main87910-AC070-B3i200707-201003

GRAY ME.,1G3

main87910-AC070-C0i200707-201003

BLACK,202

main87910-AC070-D0i200707-201003

DK RED MC,3Q7

main87910-AC070-E0i200707-200902

BEIGE M. M.,4Q2

main87910-AC070-E1i200808-201003

DK.BROWN ME.,4U5

main87910-AC070-E2i200902-201003

BEIGE ME.,4T8

main87910-AC070-G0i200501-200707

LT.GREEN ME.,6U0

main87910-AC070-J0i200707-200808

DK.BLUE M.M.,8P4

main87910-AC070-J1i200501-200707

BLUE ME.,8R5

main87910-AC080-A0i200707-201003

WHITE PEARL CS.,070

main87910-AC080-B0i200501-200707

SILVER ME.,1D4

main87910-AC080-B1i200501-200707

GRAY M.M.,1E3

main87910-AC080-B2i200707-201003

SILVER ME.,1F7

main87910-AC080-B3i200707-201003

GRAY ME.,1G3

main87910-AC080-C0i200707-201003

BLACK,202

main87910-AC080-D0i200501-200707

DK RED MC,3Q7

main87910-AC080-E0i200707-200902

BEIGE M. M.,4Q2

main87910-AC080-E1i200808-201003

DK.BROWN ME.,4U5

main87910-AC080-E2i200902-201003

BEIGE ME.,4T8

main87910-AC080-G0i200707-201003

LT.GREEN ME.,6U0

main87910-AC080-J0i200707-200808

DK.BLUE M.M.,8P4

main87910-AC080-J1i200707-201003

BLUE ME.,8R5

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-07080-A0i201005-201110

WHITE PEARL CS.,070

main87940-07080-B0i201005-201110

SILVER ME.,1F7

main87940-07080-B1i201005-201110

GRAY ME.,1G3

main87940-07080-C0i201005-201110

BLACK,202

main87940-07080-D0i201005-201110

BLACKISH RED MC.,3R0

main87940-07080-E0i201005-201110

BEIGE ME.,4T8

main87940-07080-E1i201005-201110

DK.BROWN ME.,4U5

main87940-07080-G0i201005-201110

OLIVE M.M.,6T7

main87940-07080-J0i201005-201110

BLUE ME.,8N0

main87940-07081-A0i201111-201203

WHITE PEARL CS.,070

main87940-07081-B0i201111-201203

SILVER ME.,1F7

main87940-07081-B1i201111-201203

GRAY ME.,1G3

main87940-07081-C0i201111-201203

BLACK,202

main87940-07081-D0i201111-201203

BLACKISH RED MC.,3R0

main87940-07081-E0i201111-201203

BEIGE ME.,4T8

main87940-07081-E1i201111-201203

DK.BROWN ME.,4U5

main87940-07081-G0i201111-201203

OLIVE M.M.,6T7

main87940-07081-J0i201111-201203

BLUE ME.,8N0

main87940-07082-A0i201204-201210

WHITE PEARL CS.,070

main87940-07082-B0i201204-201210

SILVER ME.,1F7

main87940-07082-B1i201204-201210

GRAY ME.,1G3

main87940-07082-C0i201204-201210

BLACK,202

main87940-07082-D0i201204-201210

BLACKISH RED MC.,3R0

main87940-07082-E0i201204-201210

BEIGE ME.,4T8

main87940-07082-E1i201204-201210

DK.BROWN ME.,4U5

main87940-07082-G0i201204-201210

OLIVE M.M.,6T7

main87940-07082-J0i201204-201210

BLUE ME.,8N0

main87940-07090-A0i201005-201110

WHITE PEARL CS.,070

main87940-07090-B0i201005-201110

SILVER ME.,1F7

main87940-07090-B1i201005-201110

GRAY ME.,1G3

main87940-07090-C0i201005-201110

BLACK,202

main87940-07090-D0i201005-201110

BLACKISH RED MC.,3R0

main87940-07090-E0i201005-201110

BEIGE ME.,4T8

main87940-07090-E1i201005-201110

DK.BROWN ME.,4U5

main87940-07090-G0i201005-201110

OLIVE M.M.,6T7

main87940-07090-J0i201005-201110

BLUE ME.,8N0

main87940-07091-A0i201111-201203

WHITE PEARL CS.,070

main87940-07091-B0i201111-201203

SILVER ME.,1F7

main87940-07091-B1i201111-201203

GRAY ME.,1G3

main87940-07091-C0i201111-201203

BLACK,202

main87940-07091-D0i201111-201203

BLACKISH RED MC.,3R0

main87940-07091-E0i201111-201203

BEIGE ME.,4T8

main87940-07091-E1i201111-201203

DK.BROWN ME.,4U5

main87940-07091-G0i201111-201203

OLIVE M.M.,6T7

main87940-07091-J0i201111-201203

BLUE ME.,8N0

main87940-07092-A0i201204-201210

WHITE PEARL CS.,070

main87940-07092-B0i201204-201210

SILVER ME.,1F7

main87940-07092-B1i201204-201210

GRAY ME.,1G3

main87940-07092-C0i201204-201210

BLACK,202

main87940-07092-D0i201204-201210

BLACKISH RED MC.,3R0

main87940-07092-E0i201204-201210

BEIGE ME.,4T8

main87940-07092-E1i201204-201210

DK.BROWN ME.,4U5

main87940-07092-G0i201204-201210

OLIVE M.M.,6T7

main87940-07092-J0i201204-201210

BLUE ME.,8N0

main87940-AC090-A0i200707-201003

WHITE PEARL CS.,070

main87940-AC090-B0i200501-200707

SILVER ME.,1D4

main87940-AC090-B1i200501-200707

GRAY M.M.,1E3

main87940-AC090-B2i200707-201003

SILVER ME.,1F7

main87940-AC090-B3i200707-201003

GRAY ME.,1G3

main87940-AC090-C0i200707-201003

BLACK,202

main87940-AC090-D0i200707-201003

DK RED MC,3Q7

main87940-AC090-E0i200707-200902

BEIGE M. M.,4Q2

main87940-AC090-E1i200808-201003

DK.BROWN ME.,4U5

main87940-AC090-E2i200902-201003

BEIGE ME.,4T8

main87940-AC090-G0i200707-201003

LT.GREEN ME.,6U0

main87940-AC090-J0i200501-200707

DK.BLUE M.M.,8P4

main87940-AC090-J1i200707-201003

BLUE ME.,8R5

main87940-AC100-A0i200501-200707

WHITE PEARL CS.,070

main87940-AC100-B0i200501-200707

SILVER ME.,1D4

main87940-AC100-B1i200501-200707

GRAY M.M.,1E3

main87940-AC100-B2i200707-201003

SILVER ME.,1F7

main87940-AC100-B3i200707-201003

GRAY ME.,1G3

main87940-AC100-C0i200707-201003

BLACK,202

main87940-AC100-D0i200501-200707

DK RED MC,3Q7

main87940-AC100-E0i200707-200902

BEIGE M. M.,4Q2

main87940-AC100-E1i200808-201003

DK.BROWN ME.,4U5

main87940-AC100-E2i200902-201003

BEIGE ME.,4T8

main87940-AC100-G0i200707-201003

LT.GREEN ME.,6U0

main87940-AC100-J0i200707-200808

DK.BLUE M.M.,8P4

main87940-AC100-J1i200707-201003

BLUE ME.,8R5

90178A0007

main90178-A0007

7 parts on this diagram · 2 diagrams in section
