Toyota AVALON — MIRROR

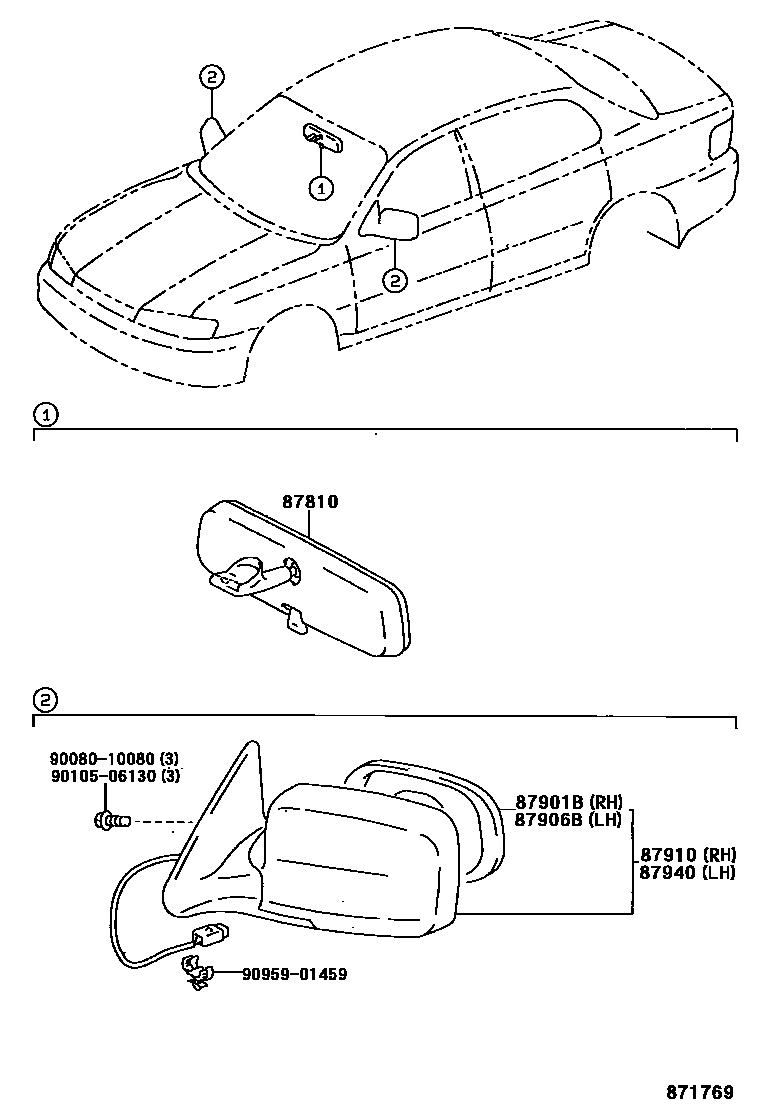

87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE2,040
SU WHITE PM,051
BLACK,202
MAZENTA MC,3L3
BEIGE ME,4M9
GR. GREEN ME,6M3
DK. TEAL GREEN MC,751
DK. BLUE MM,8K0
DARK TAUPE MCOP,927
SUPER WHITE2,040
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
BEIGE ME,4M9
LT.BEIGE ME.OP,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC.,751
DK.BLUE M.M,8L3
DK.TAUPE ME.OP,927
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE2,040
SU WHITE PM,051
BLACK,202
MAZENTA MC,3L3
BEIGE ME,4M9
GR. GREEN ME,6M3
DK. TEAL GREEN MC,751
DK. BLUE MM,8K0
DARK TAUPE MCOP,927
SUPER WHITE2,040
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
BEIGE ME,4M9
LT.BEIGE ME OP,4N5
GOLD ME.,578
DK.GREEN M.M.,6P2
DK.TEAL GREEN MC,751
DK.BLUE M.M,8L3
DK.TAUPE ME.OP.,927
9008010080
main90080-10080
9010506130
main90105-06130
9095901459
main90959-01459
8 parts on this diagram · 1 diagram in section
