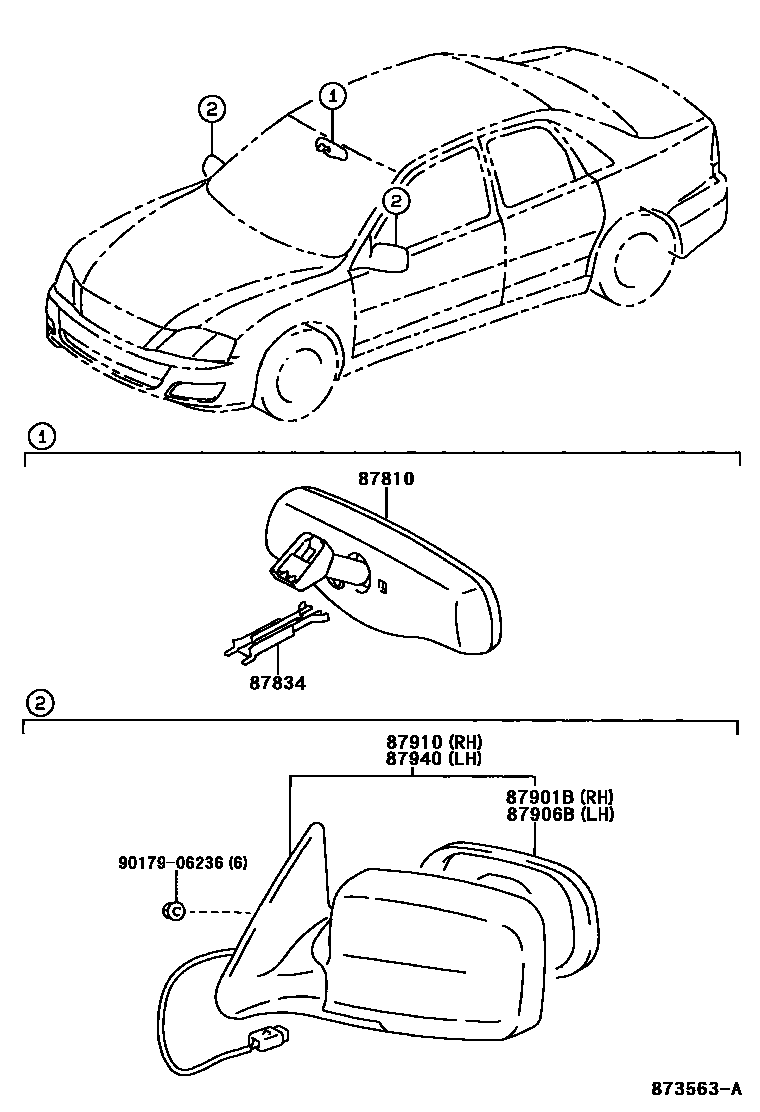

Toyota AVALON — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK RED MC,3Q7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
DK. GREEN MC.,6S7
87940MIRROR ASSY, OUTER REAR VIEW, LH
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK RED MC,3Q7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
DK. GREEN MC.,6S7
9017906236
main90179-06236
7 parts on this diagram · 1 diagram in section
