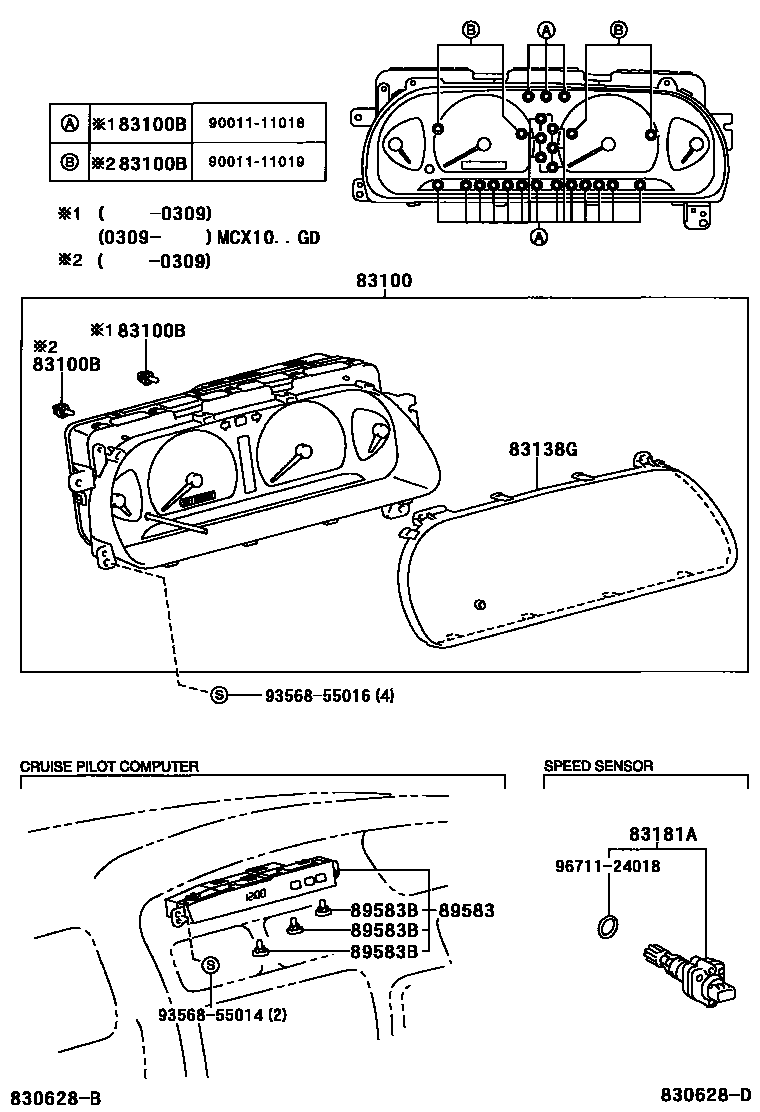

Toyota AVALON — METER

83100METER ASSY, COMBINATION

main83800-07060i200004-200309

main83800-07070i200004-200309

W(ABS)

main83800-07080i200004-200309

main83800-07090i200004-200309

W(ABS)

main83800-07100i200004-200309

main83800-07180i200309

main83800-07190i200309

W(ABS)

main83800-07200i200309

83100BBULB, COMBINATION METER, NO.1

main90011-11018i200004-200309

12V 1.4W,TYPE A:REFER TO ILLUSTRATION

main90011-11019i200004-200309

12V 3.0W,TYPE B:REFER TO ILLUSTRATION

83138GGLASS, COMBINATION METER

main83811-07060i200004-200309

main83811-07100i200309

83181ASENSOR, SPEEDOMETER

main83181-12040i200004-200506

89583COMPUTER, CRUISE PILOT

main89583-07010i200004-200309

89583BBULB, CRUISE PILOT COMPUTER

main84999-07010i200004-200309

14V 1.4W

9356855014

main93568-55014

9356855016

main93568-55016

9671124018

main96711-24018

9 parts on this diagram · 1 diagram in section

METER for Toyota AVALON

This section contains 9 genuine Toyota parts for the METER system of the Toyota AVALON. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SENSOR, SPEEDOMETER, COMPUTER, CRUISE PILOT.
