Toyota AVALON — METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY

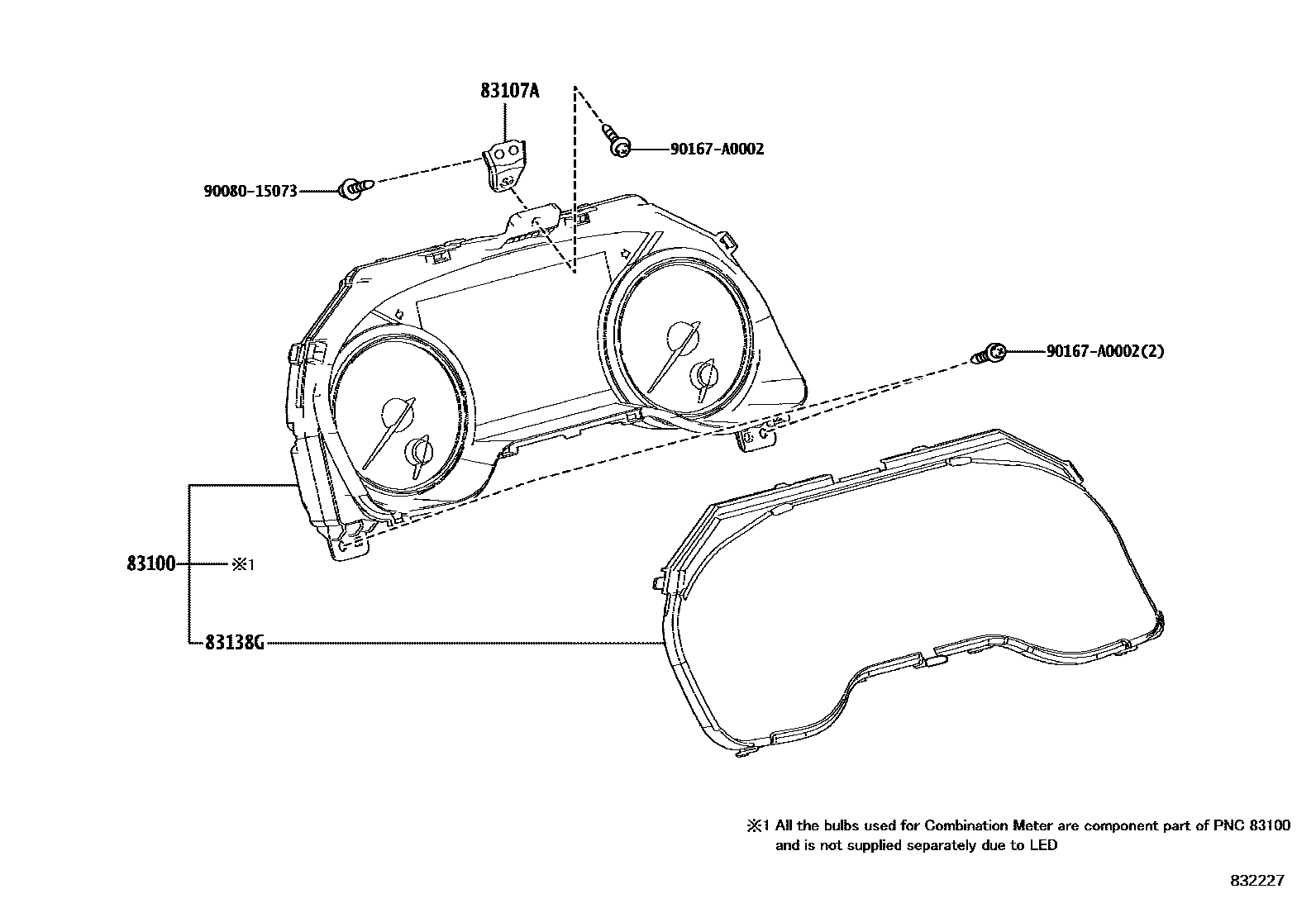

83100METER ASSY, COMBINATION

main83800-07640iGSX50201806-201908

DENSO

main83800-07641iGSX50201908-202008

DENSO

main83800-07810iGSX50202008-202108

DENSO

main83800-07880iGSX50202108

DENSO

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-33010iGSX50201806-202008

83138GGLASS, COMBINATION METER

main83852-07620iGSX50201806-202008

9008015073

main90080-15073

90167A0002

main90167-A0002

5 parts on this diagram · 2 diagrams in section
