Toyota AVALON — METER

0001 1 0002 1ACCESSORY METER 0003 1ACCESSORY METER 0004 1ACCESSORY METER 0005 1ACCESSORY METER

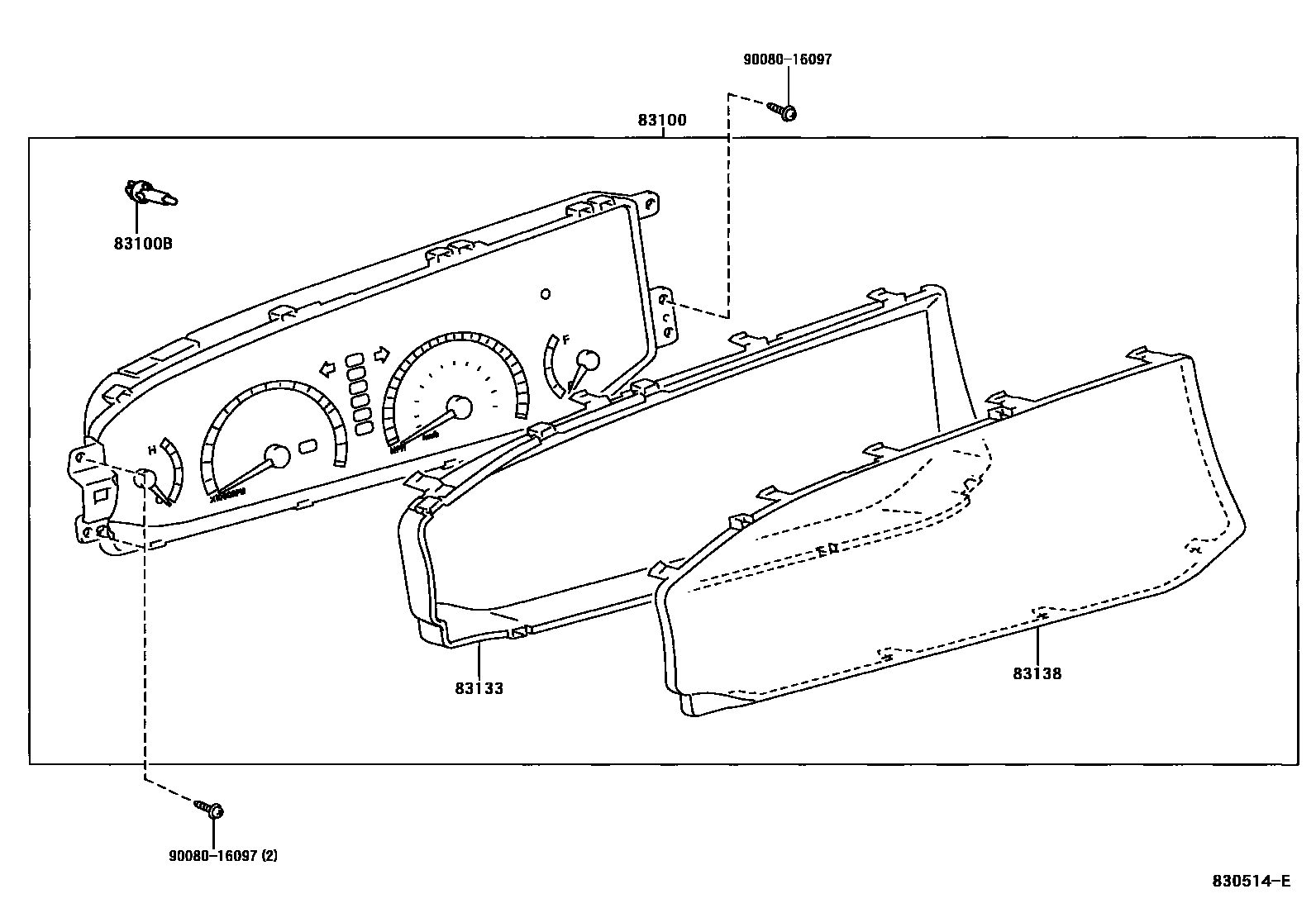

83100METER ASSY, COMBINATION

main83800-07040iMCX20199908-200005

main83800-07041iMCX20200005-200008

main83800-07042iMCX20200008-200206

main83810-07080iMCX20200206

83100BBULB, COMBINATION METER, NO.1

main83120-02030iMCX20199908-200206

14V 1.4W,W(SOCKET)

83133PLATE, COMBINATION METER, NO.1

main83811-07020iMCX20199908-200005

main83811-07021iMCX20200005-200206

83138GLASS, SPEEDOMETER

main83852-07020iMCX20199908-200008

main83852-07021iMCX20200008-200206

9008016097

main90080-16097

5 parts on this diagram · 5 diagrams in section
