Toyota AVALON — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-YF010-B1i200004-200309

DK. STONE,TRIM1#

main58510-YF010-E1i200004-200309

SANDALWOOD,TRIM4#

main58510-YF020-B2i200004-200309

DK. STONE,TRIM1#

main58510-YF020-E2i200309-200506

SANDALWOOD,TRIM4#

main58510-YF030i200309-200506

BLACK

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06151-C0i200309-200506

BLACK,TRIM1#; BLACK,TRIM1#,4#

58543BBRACKET, FLOOR CARPET, RH

main58543-YF010i200004-200309

58544ABRACKET, FLOOR CARPET, LH

main58544-YF010i200004-200309

6256733010COVER, QUARTER TRIM, REAR LOWER RH

main62567-33010

67923AC010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-AC010

9015950138

main90159-50138

9166540616

main91665-40616

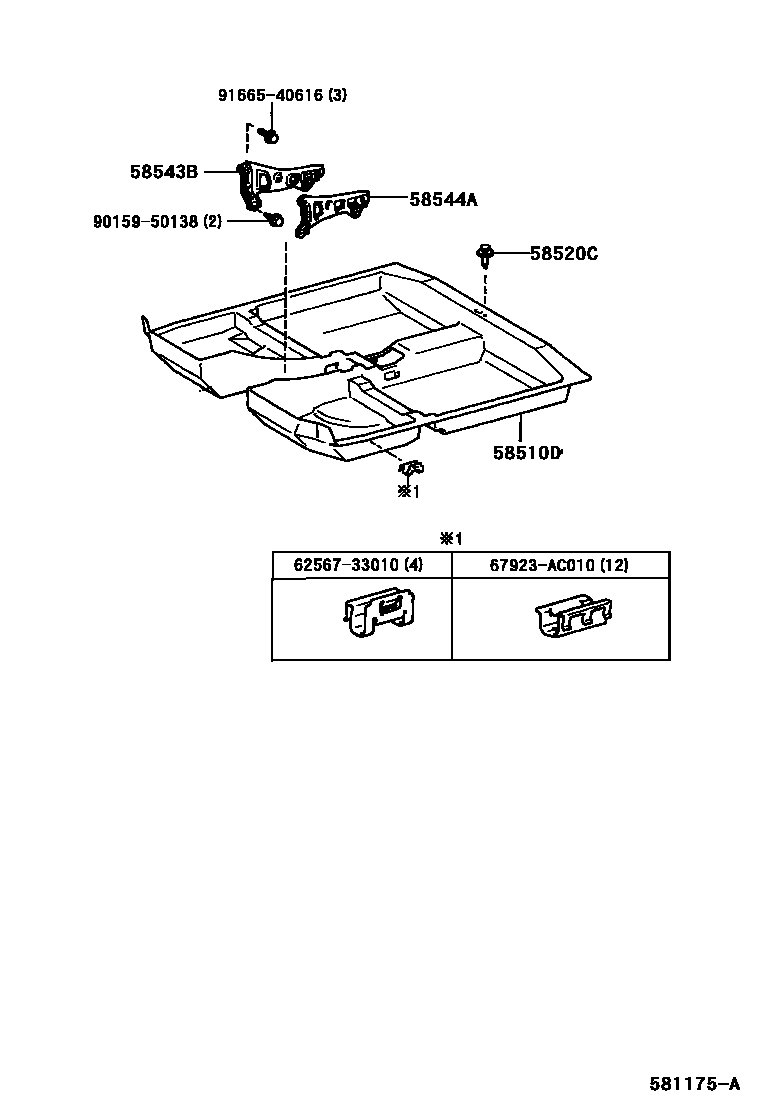

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota AVALON

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota AVALON. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), BRACKET, FLOOR CARPET, RH, BRACKET, FLOOR CARPET, LH, COVER, QUARTER TRIM, REAR LOWER RH.
