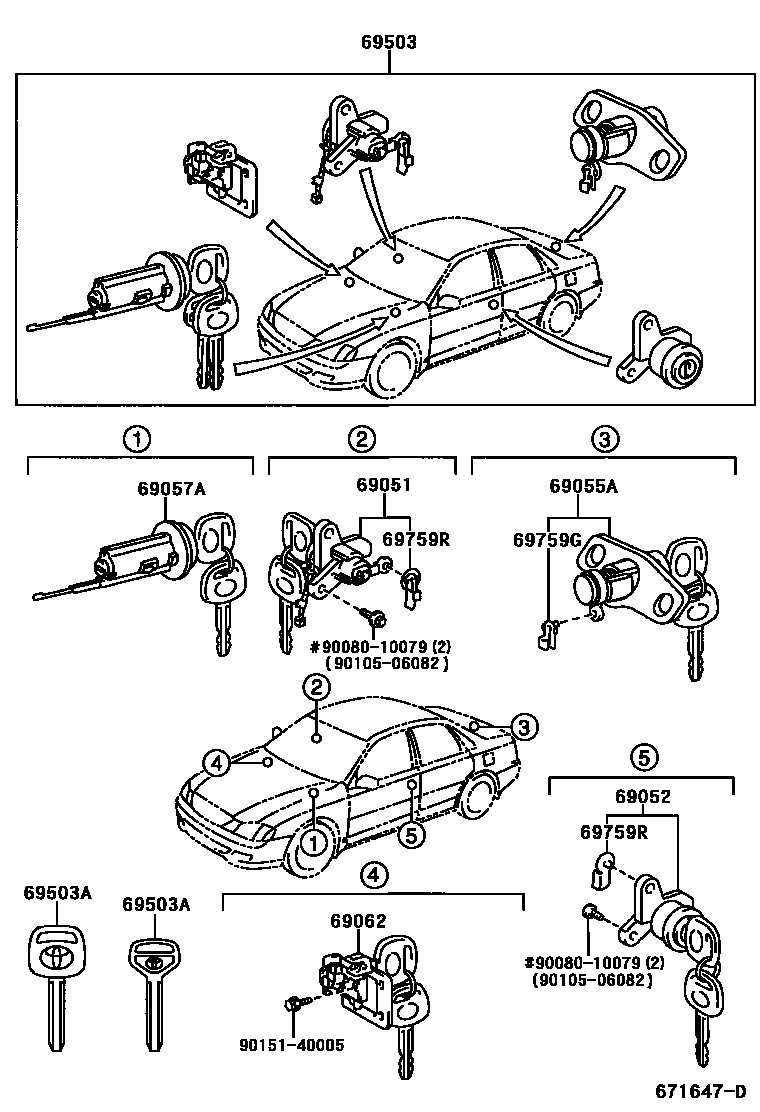

Toyota AVALON — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-41050i200206-200501

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-41050i199908-200206

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-41110i199908-200206

main69055-41130i200206-200501

W(KEY LESS ENTRY)

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-41040i199908-200008

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22171i200206-200501

69503CYLINDER SET, LOCK

main69005-41140i199908-200008

69503AKEY, BLANK

main90999-00185×2i199908-200008

MASTER KEY,W(*68)

main90999-00188i199908-200008

SUB KEY

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i200206

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090i199908-200206

WHITE

main69759-32100i199908-200206

YELLOW

9008010079

main90080-10079

9010506082

main90105-06082

9015140005

main90151-40005

12 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota AVALON

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota AVALON. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
