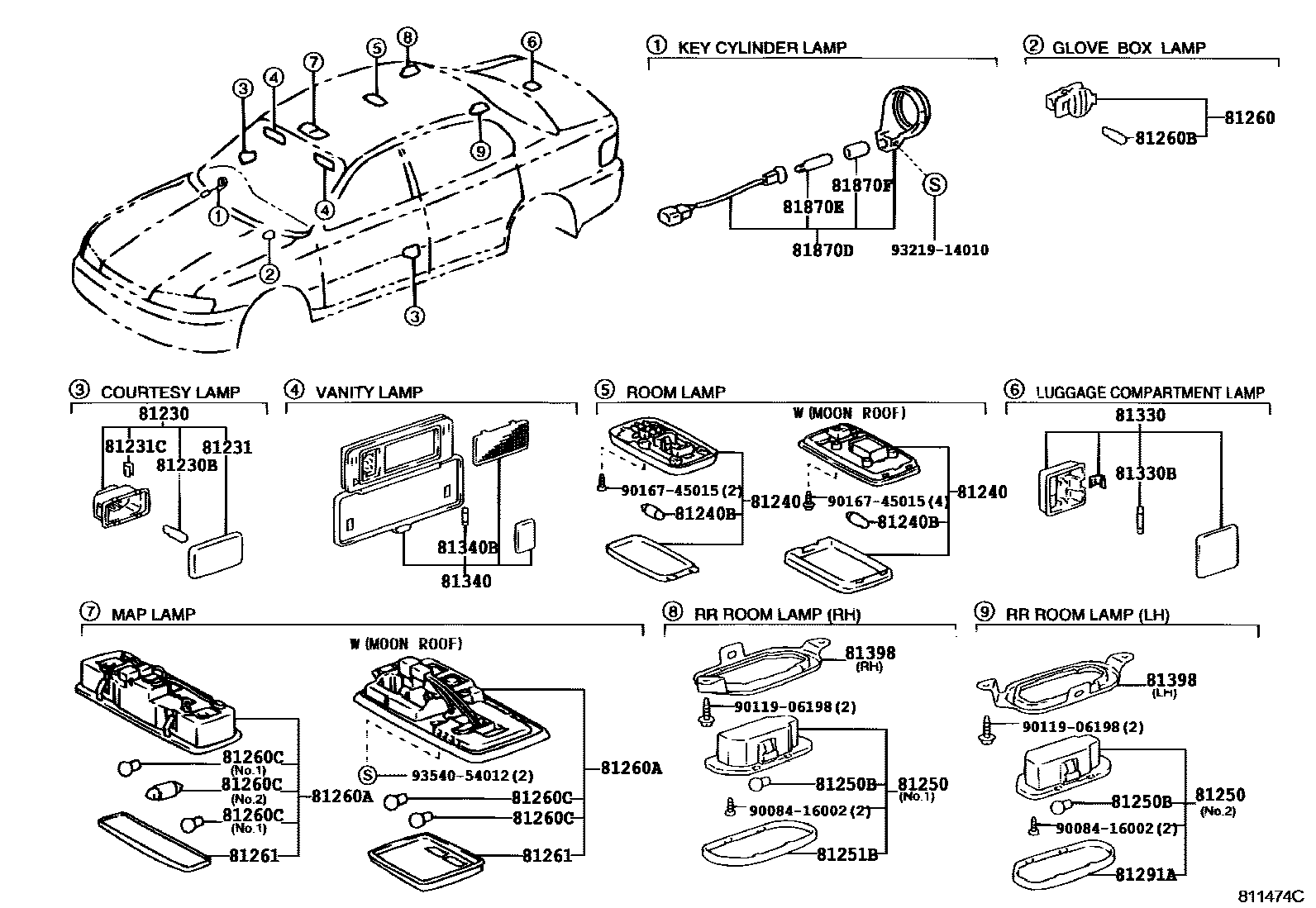

Toyota AVALON — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81231CCLIP, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
STONE,TRIM1#
FAWN,TRIM4#
W(MOON ROOF),STONE,TRIM1#
W(MOON ROOF),FAWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250LAMP ASSY, ROOM, NO.2
STONE,TRIM1#,NO.1
FAWN,TRIM4#,NO.1
STONE,TRIM1#,NO.2
FAWN,TRIM4#,NO.2
81250BBULB, ROOM LAMP, NO.2
12V 8W
81251BLENS, REAR ROOM LAMP, RH
STONE,TRIM1#
FAWN,TRIM4#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
STONE,TRIM1#
FAWN,TRIM4#
W(MOON ROOF),STONE,TRIM1#
W(MOON ROOF),FAWN,TRIM4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W,W(MOON ROOF),NO.1
12V 8W,NO.1
12V 8W,NO.2
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
81291ALENS, REAR ROOM LAMP, LH
STONE,TRIM1#
FAWN,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3W
81340LAMP ASSY, VANITY
STONE,TRIM1#,RH
FAWN,TRIM4#,RH
STONE,TRIM1#,LH
FAWN,TRIM4#,LH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
9008416002
main90084-16002
9011906198
main90119-06198
9016745015
main90167-45015
9321914010
main93219-14010
9354054012
main93540-54012
28 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota AVALON
This section contains 28 genuine Toyota parts for the INTERIOR LAMP system of the Toyota AVALON. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, CLIP, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
