Toyota AVALON — HEATING & AIR CONDITIONING - COOLER PIPING

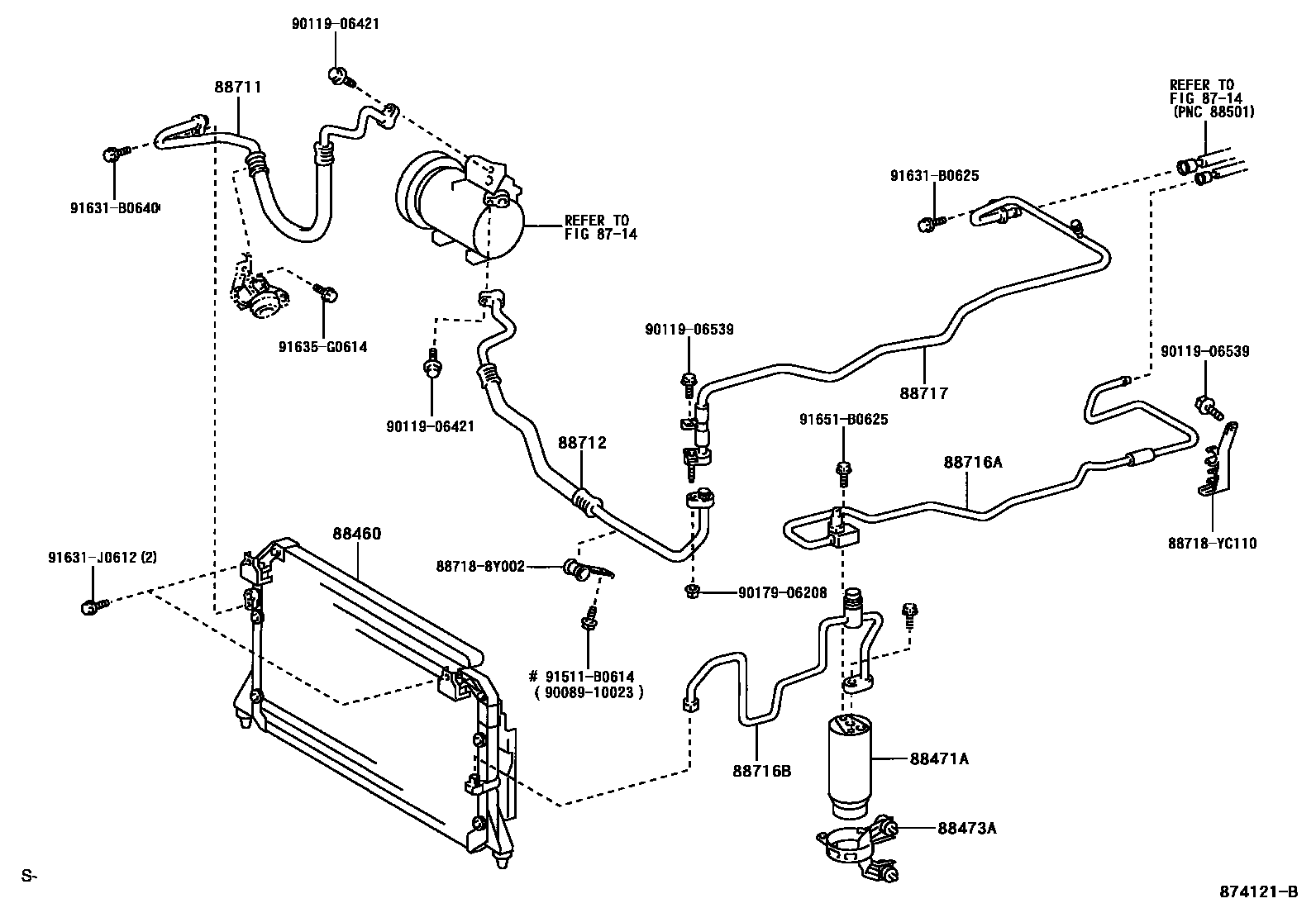

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

88460CONDENSER ASSY, COOLER

main88460-YF010i200004-200309

88471ATANK, RECEIVER

main88471-YC020i200004-200309

88473AHOLDER, RECEIVER

main88473-YC030i200004-200309

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-8Y001i200004-200309

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-8Y001i200004-200309

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-YF020i200004-200309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-8Y002i200004-200309

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88710-YF010i200004-200309

887188Y002PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-8Y002

88718YC110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-YC110

9008910023

main90089-10023

9011906421

main90119-06421

9011906539

main90119-06539

9017906208

main90179-06208

91511B0614

main91511-B0614

91631B0625

main91631-B0625

91631B0640

main91631-B0640

91631J0612

main91631-J0612

91635G0614

main91635-G0614

91651B0625

main91651-B0625

21 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota AVALON

This section contains 21 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota AVALON. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, CONDENSER ASSY, COOLER, TANK, RECEIVER, HOLDER, RECEIVER, HOSE, COOLER REFRIGERANT DISCHARGE, NO.1.
