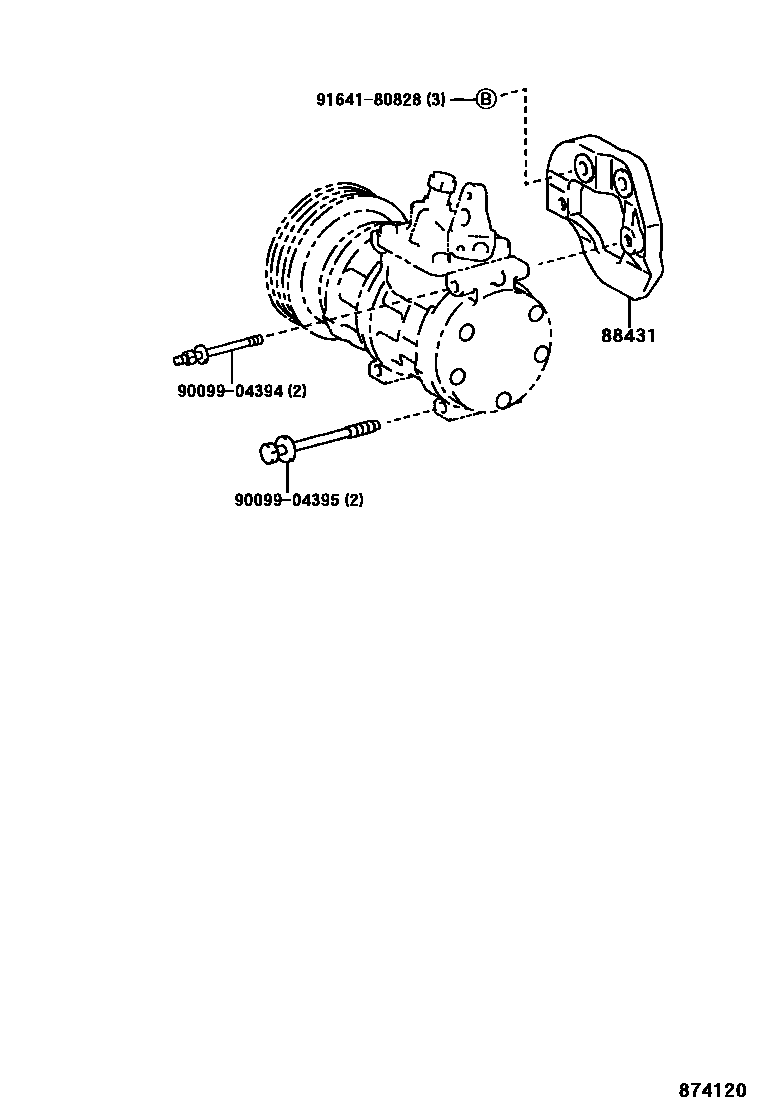

Toyota AVALON — HEATING & AIR CONDITIONING - COMPRESSOR

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-YC020i200004-200309

9009904394

main90099-04394

9009904395

main90099-04395

9164180828

main91641-80828

4 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota AVALON

This section contains 33 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota AVALON. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, COMPRESSOR ASSY, COOLER, BOLT, THROUGH.
