Toyota AVALON — HEATING & AIR CONDITIONING - COMPRESSOR

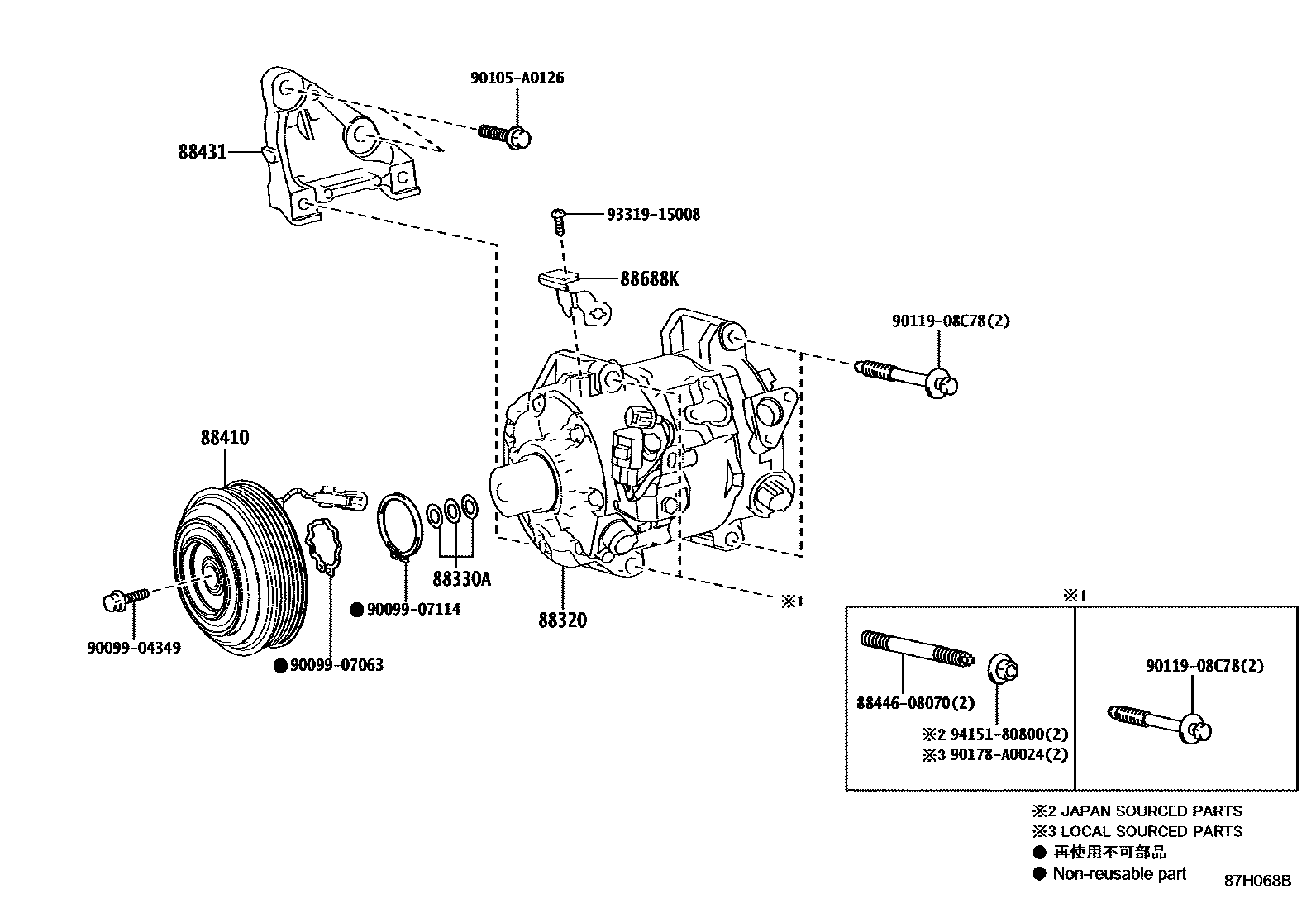

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-48320i201806-201908

main88320-48330i201908-202008

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201806-202008

88410CLUTCH ASSY, MAGNET

main88410-0N010i201806-202008

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0E010i201806-201910

main88431-0E040i201911-202008

88688KBRACKET, COOLER COMPRESSOR

main88688-33570i201806-202008

8844608070BOLT, IDLE PULLEY

main88446-08070

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

90105A0126

main90105-A0126

9011908C78

main90119-08C78

90178A0024

main90178-A0024

9331915008

main93319-15008

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota AVALON

This section contains 14 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota AVALON. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1, BRACKET, COOLER COMPRESSOR.

Toyota AVALON HEATING & AIR CONDITIONING - COMPRESSOR — Parts Diagram | EPC Data
